Ultra-Narrow Flexible Magnetic Power Track Light for Shelf Display Lighting System

Customization: Available
Length: 25m/Roll
Max Current: 12A

Product Description

  • Overview
  • Product Parameters
  • Detailed Photos
  • Installation
  • Application
  • Packaging & Shipping Terms
  • Our Company
  • FAQ
Basic Info.
Model NO.
HM-FLM--PN-14mm
Type
Wall Socket
Grounding
Non-Grounding
Color
Black
Usage
Shelf Light
Wire Type
2468 20AWG
Application
Suitable for Different Kinds of Display Fixture
Material
Rubber Magnetic Tape Extrusion
Customized
Yes
Rated Voltage
12-36V
Keyword
Wireless Track Rail System
Feature
Goods Shelves Lights Power Track with Connectors
Package
5.5kg/Roll, 39*39*12 Cm One Carton for 5 Rolls
Size
14*3mm
Transport Package
Carton
Specification
customized
Trademark
OEM
Origin
Guangdong
Production Capacity
500,000 PCS/Year
Packaging & Delivery
Package Size
20.00cm * 15.00cm * 15.00cm
Package Gross Weight
5.000kg
Product Description
MINI Flexible Magnetic Power Track System

Because of its compact structure, small size and space saving, the product is widely used in various display cases, Windows and shelves. Good window and store lighting design, so that consumers remember the brand, see the details of the product, so that consumers have visual excitement. Thus lead to the goods, promote consumption, this is the significance of commercial lighting.

  • Free crimp or cut
  • Small size - It's only 14mm wide; Easy access to power
  • Reasonable structure
  • Beautiful after installation
  • Stable and durable
  • Uniform luminescence

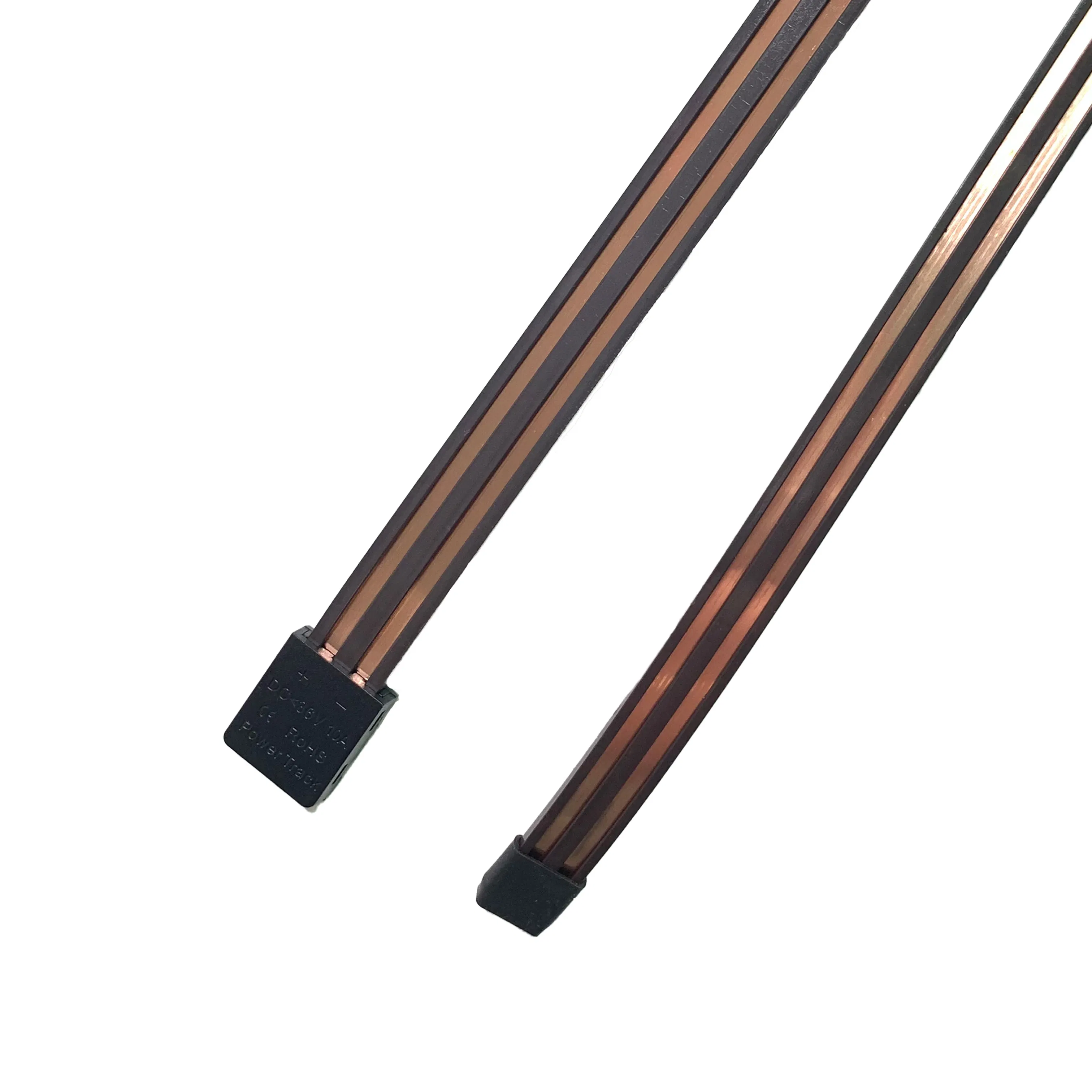

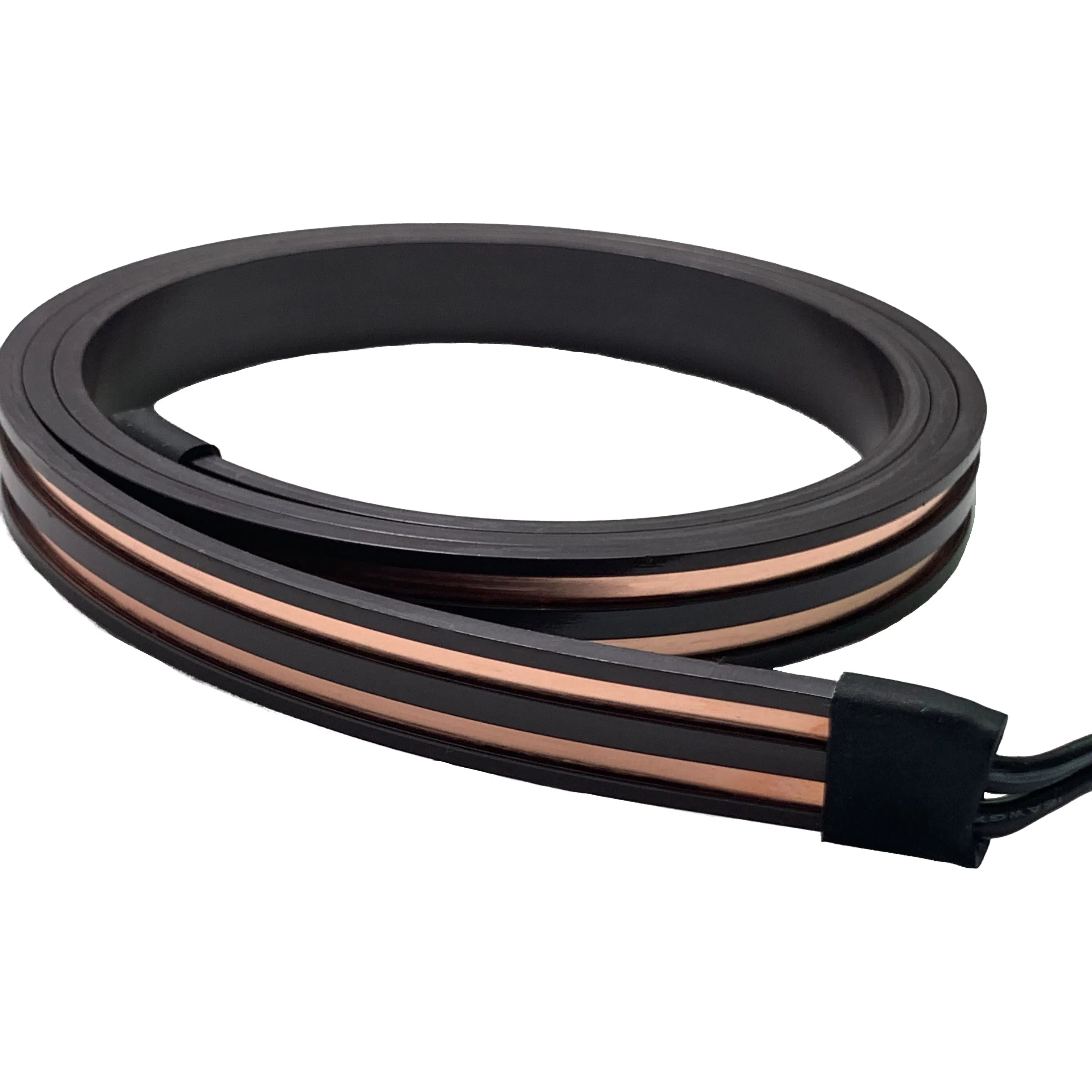

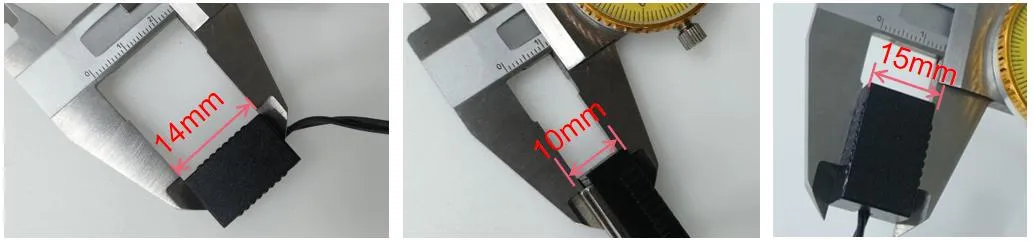

Ultra-Narrow Flexible Magnetic Power Track Light for Shelf Display Lighting System
Ultra-Narrow Flexible Magnetic Power Track Light for Shelf Display Lighting System Ultra-Narrow Flexible Magnetic Power Track Light for Shelf Display Lighting System
Ultra-Narrow Flexible Magnetic Power Track Light for Shelf Display Lighting System
Product Parameters

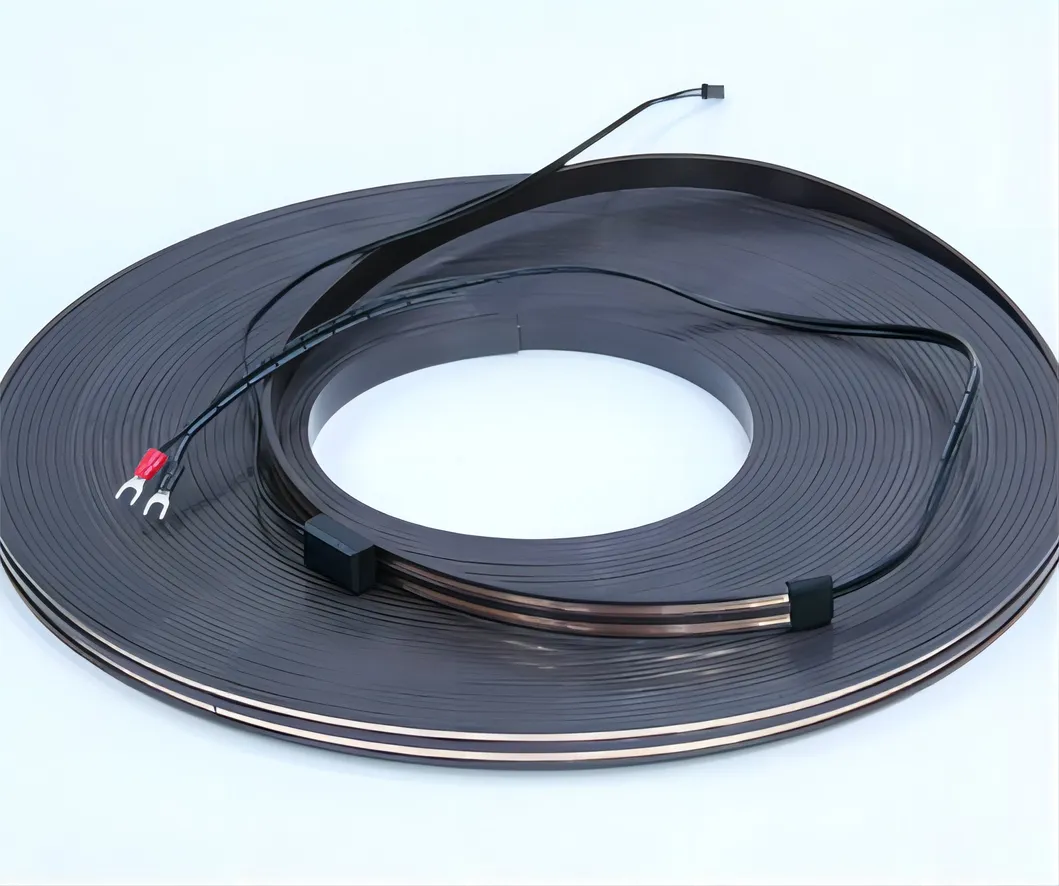

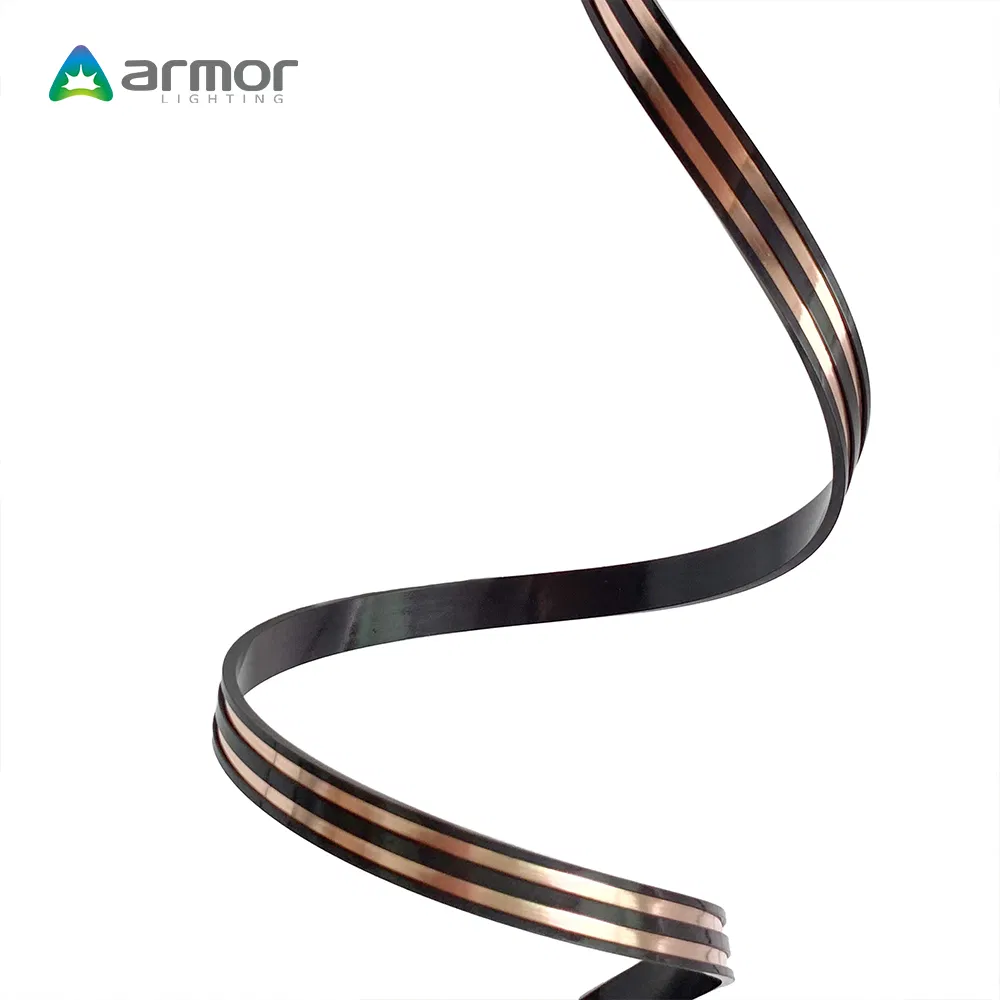

Track Details
Track Details
Product Model Track

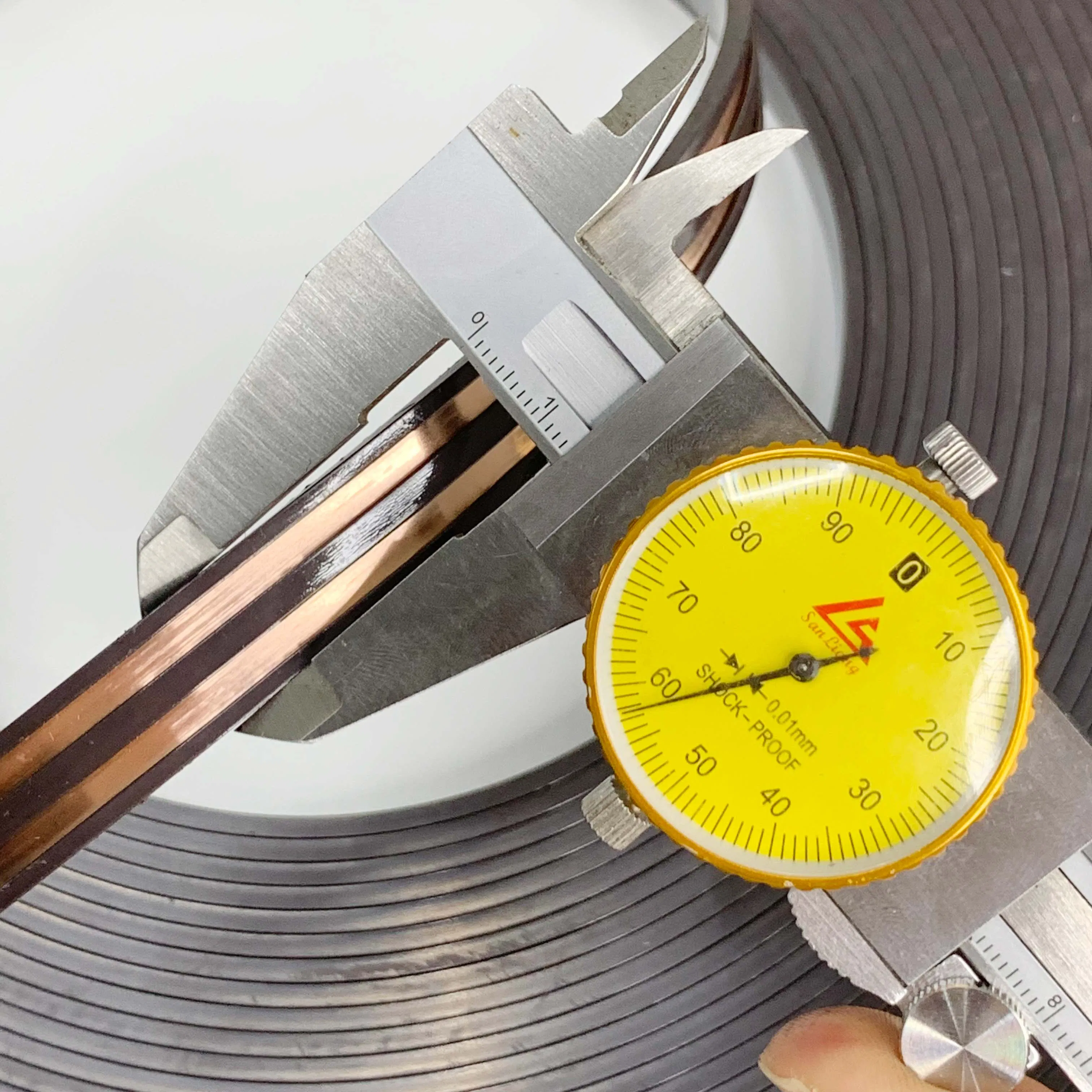

Section size 14*3mm
Carrying current Not more than 12A
Slot size None
Voltage range 12v-36v DC
Material Rail material rubber magnetic strip and copper
Installation method Suction type installation
Normal color The Power Track color is black only
Regular length 25m/roll or customized length
Input end With 500mm long UL black wire

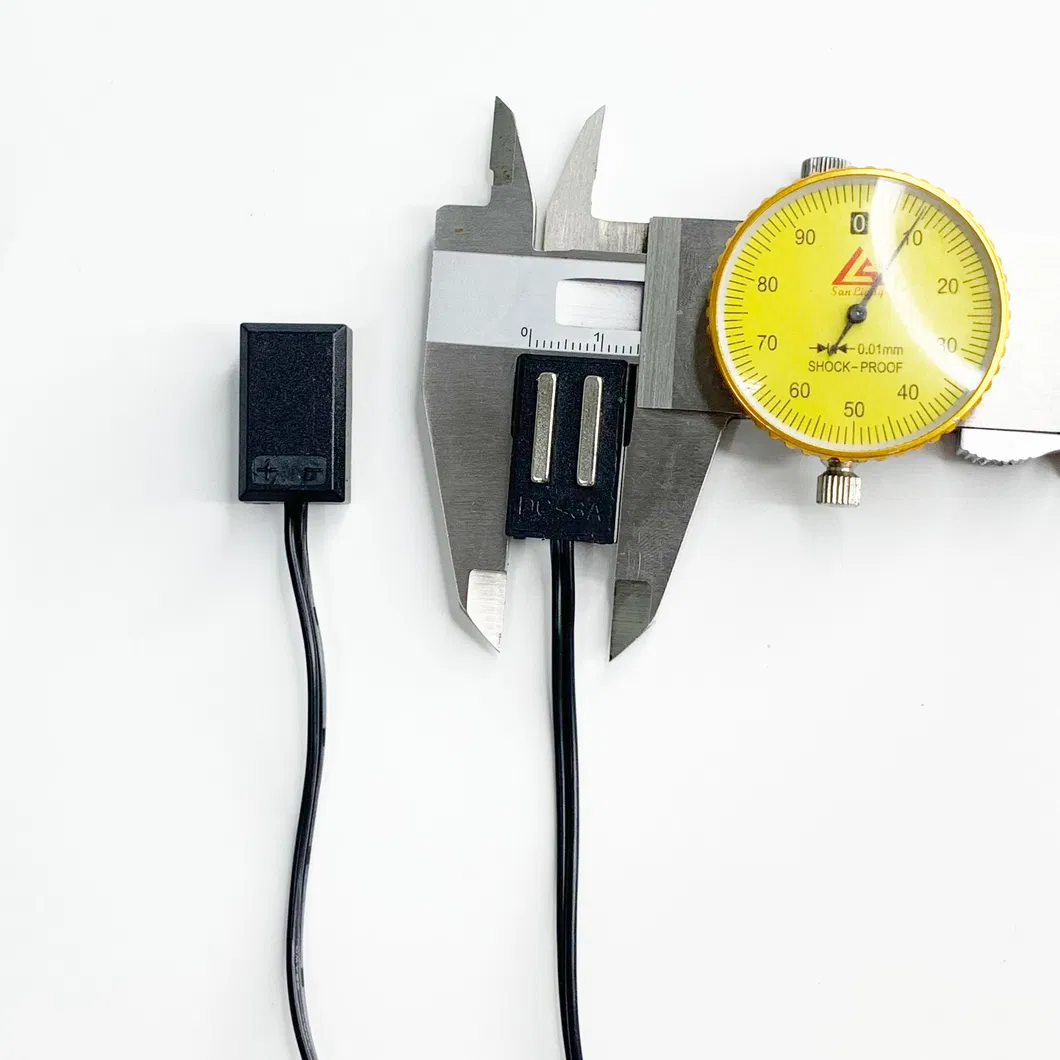

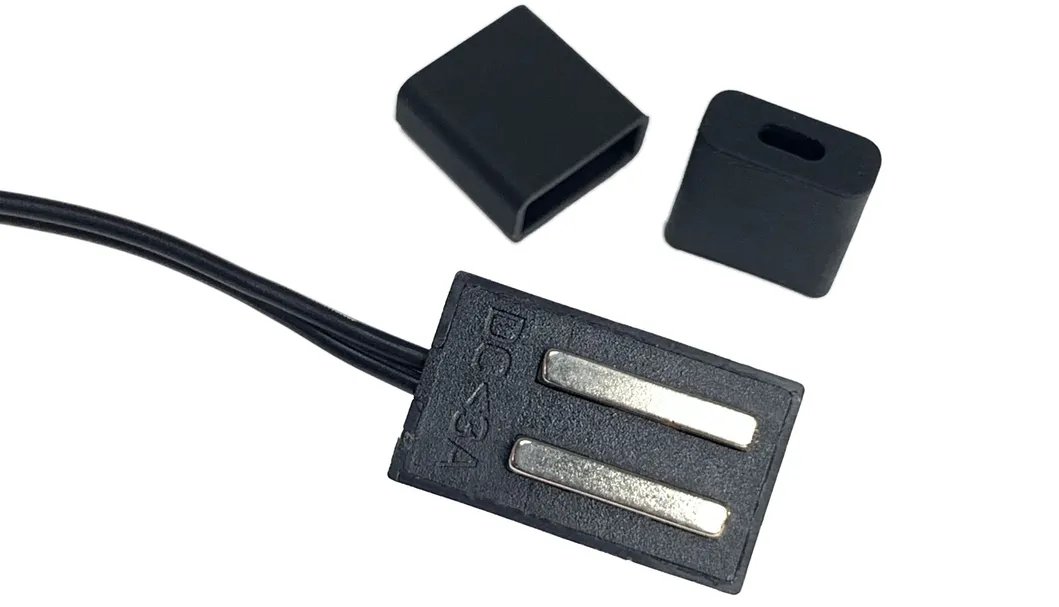

Guide Plug Details
Guide Plug Details
Product Model Guide plug
Section size 32*15mm
Carrying current Not more than 3A
Slot size None
Voltage range 12v-36v DC
Material PC material + copper material + magnet
Installation method Suction type installation
Normal color Black / White
Regular length 0.35m/0.5m (Other lengths can be customized)
Input end With 300mm long 21.5 square UL red and black wire
Detailed Photos

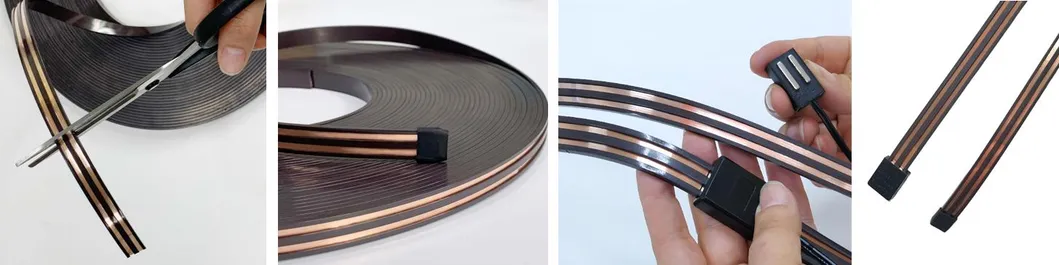

Detailed Photos Banner

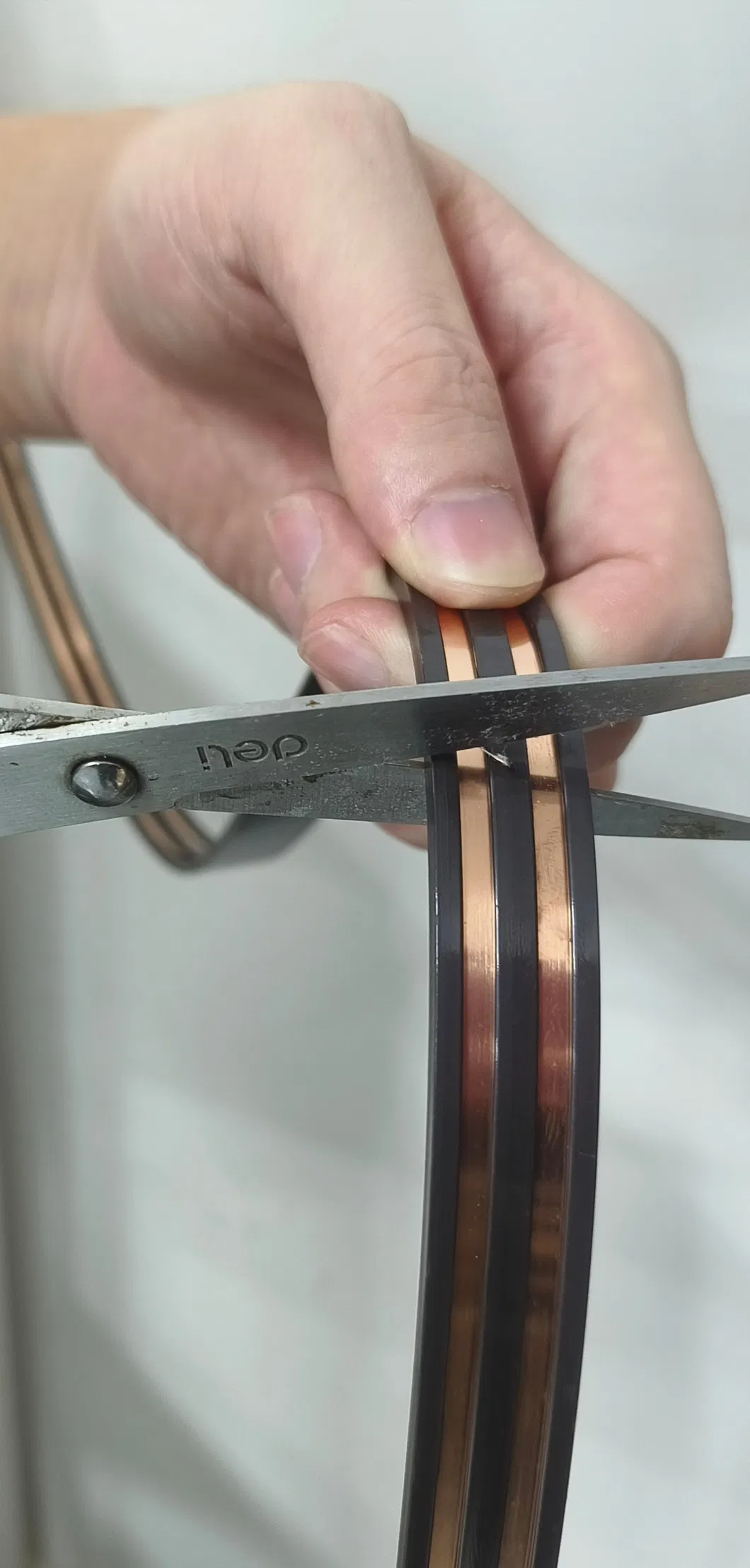

Free cut
Free cut

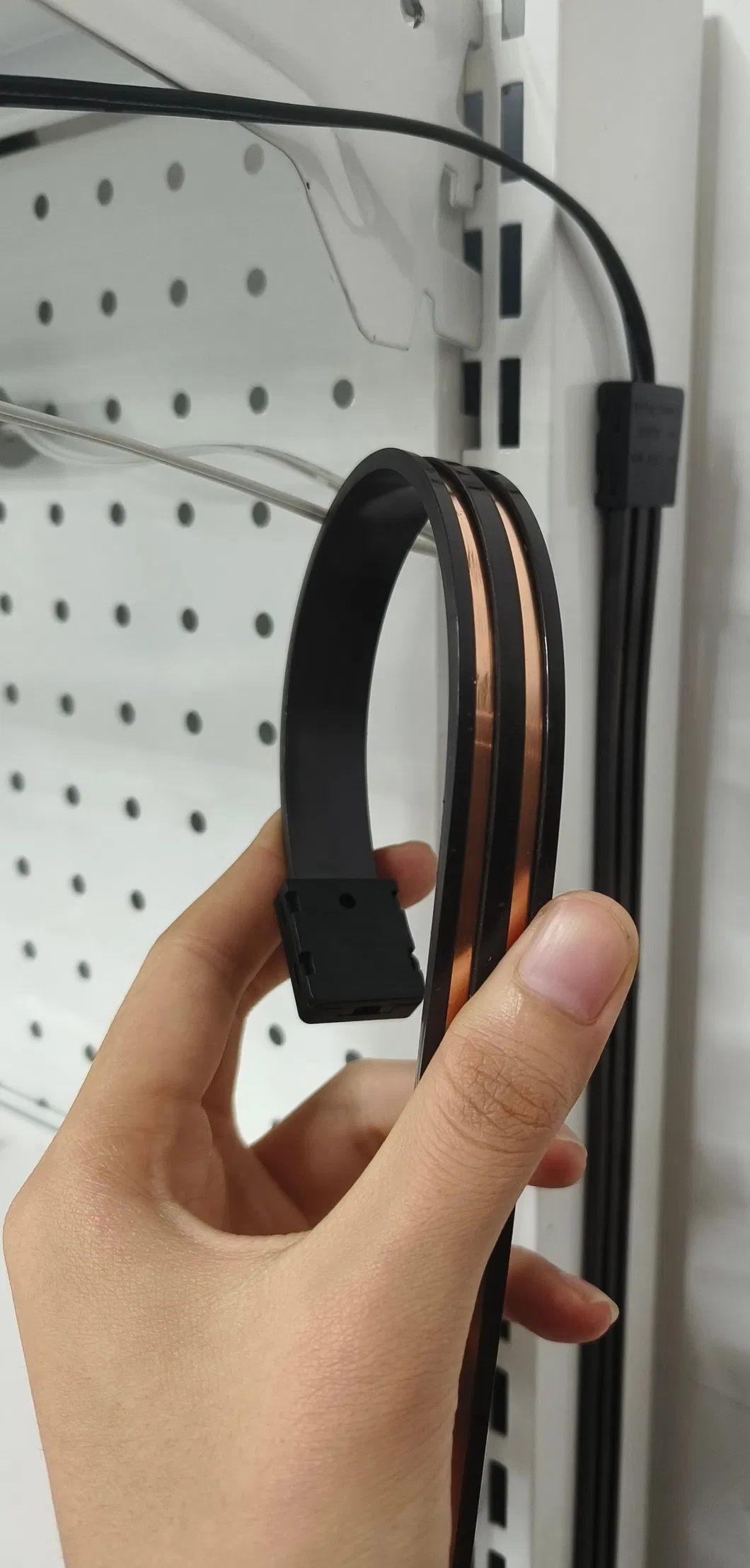

Free crimp
Free crimp

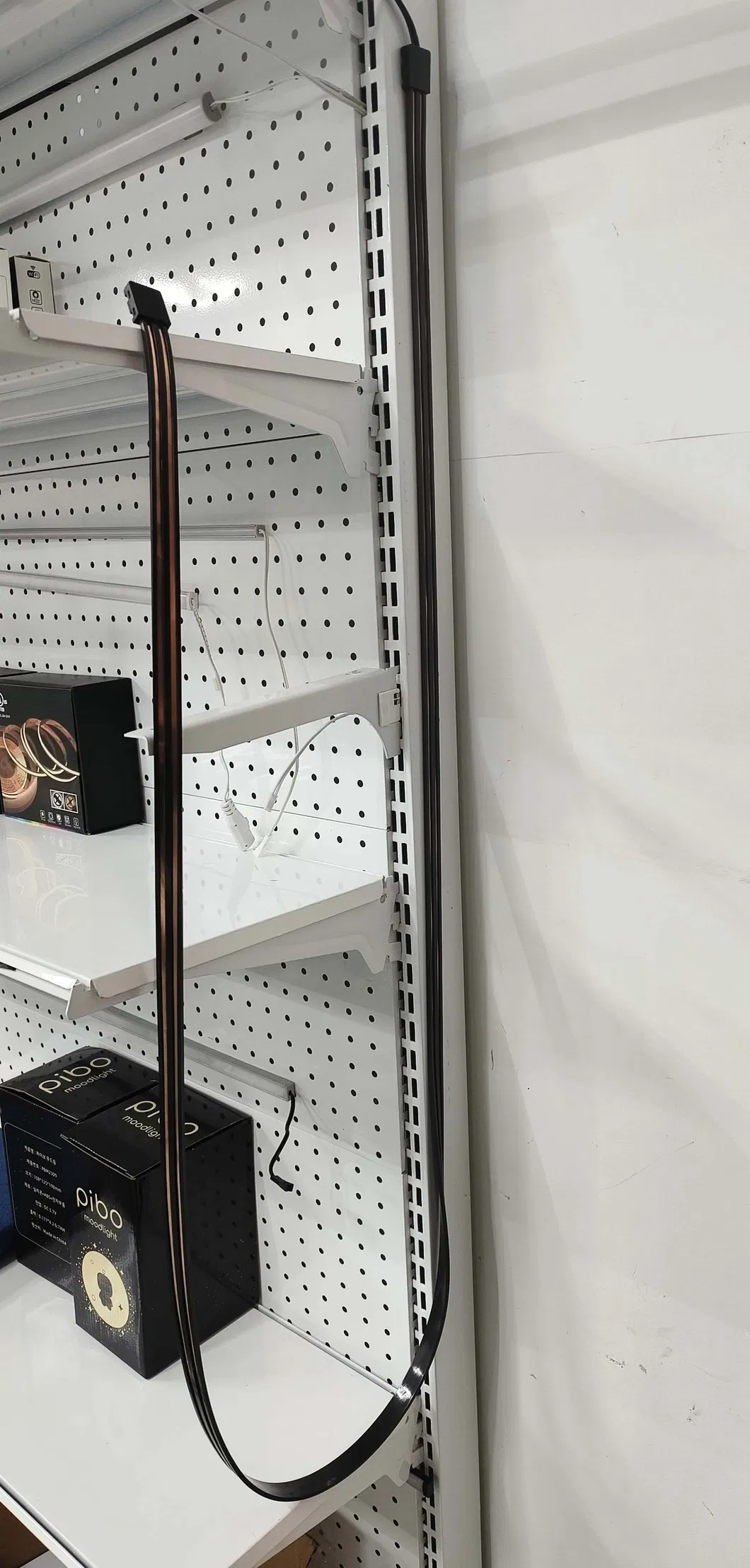

Length can be customized
Length can be customized

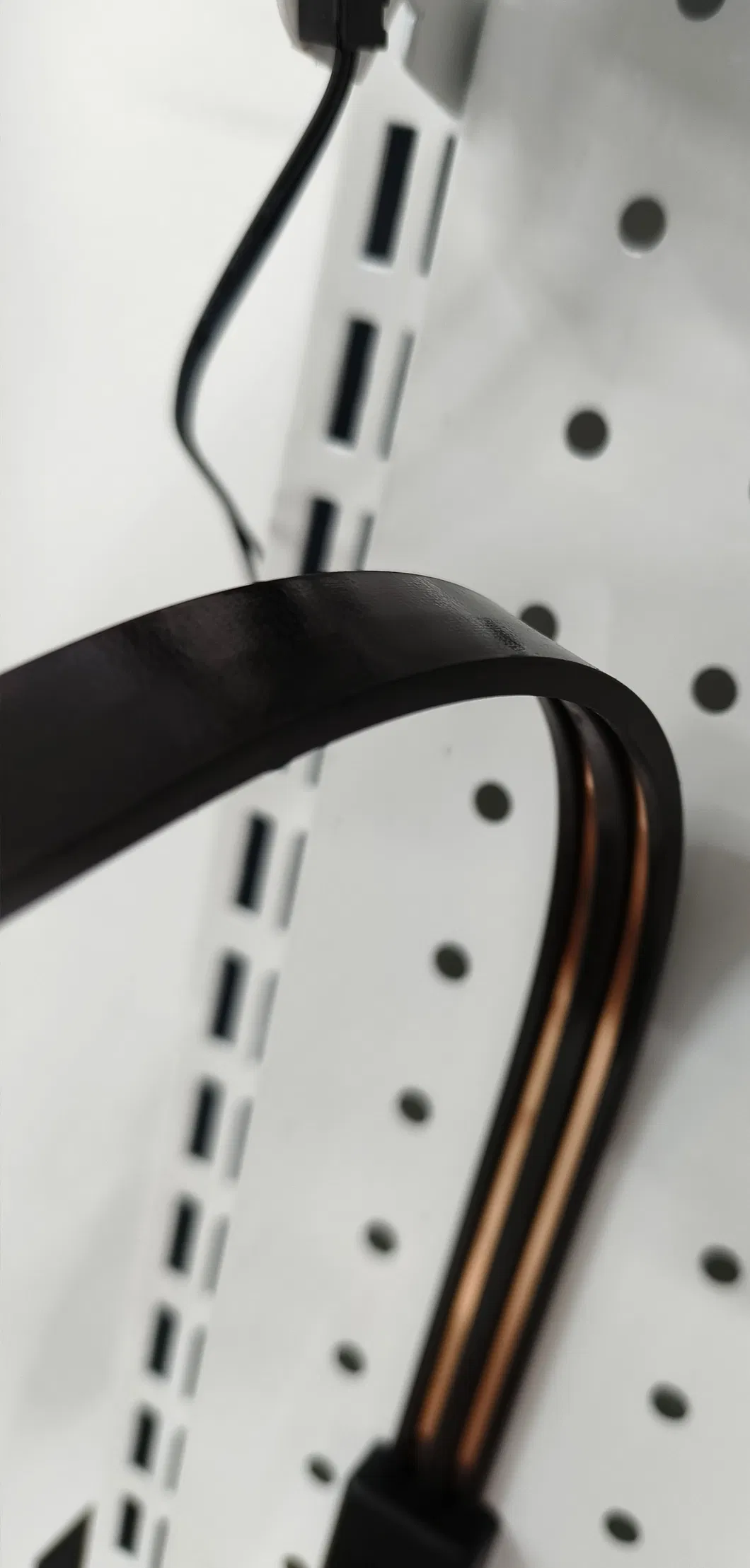

Back magnet
Back magnet
1. Can be directly adsorbed on the shelf, and double-sided tape can be added to the back of the non-magnetic surface.

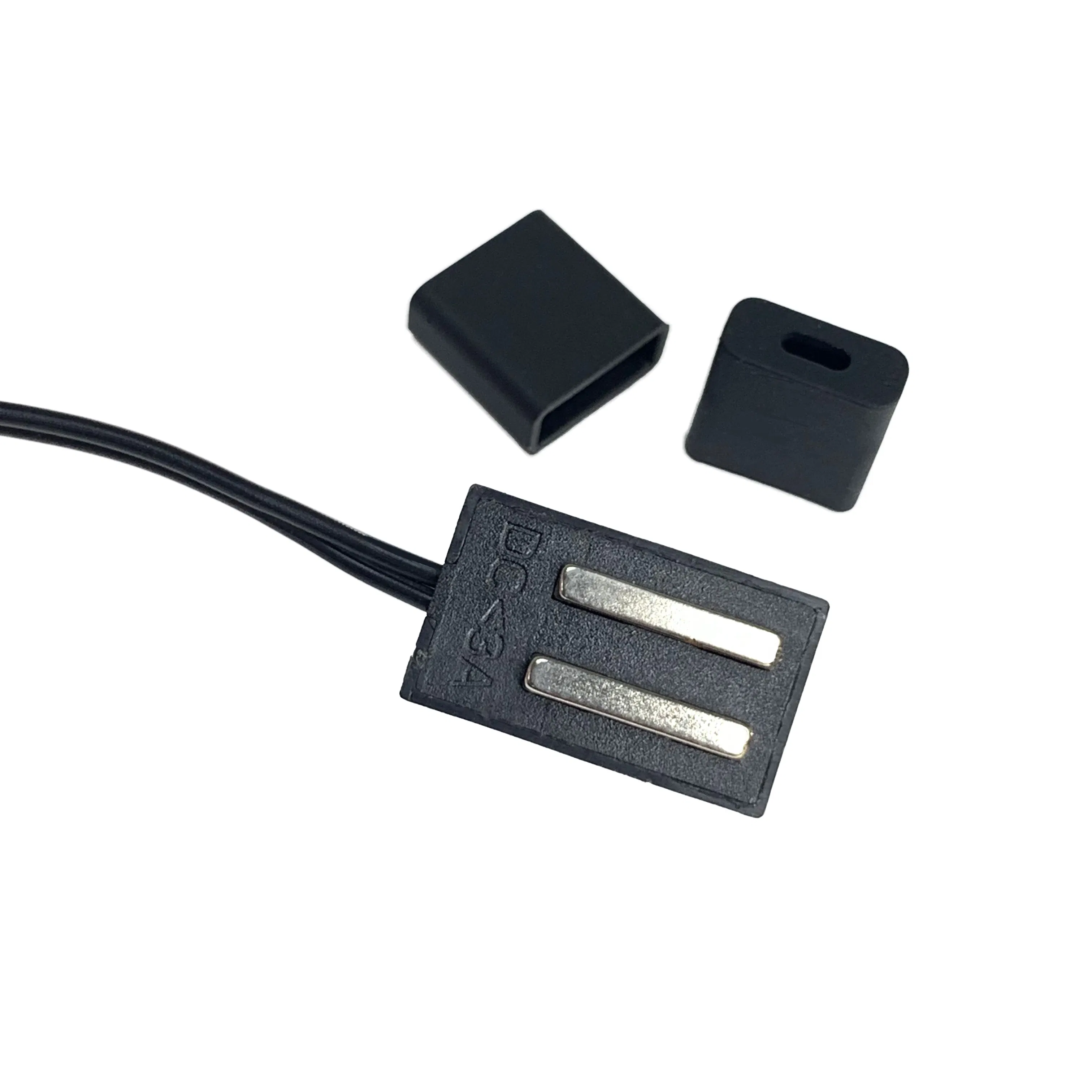

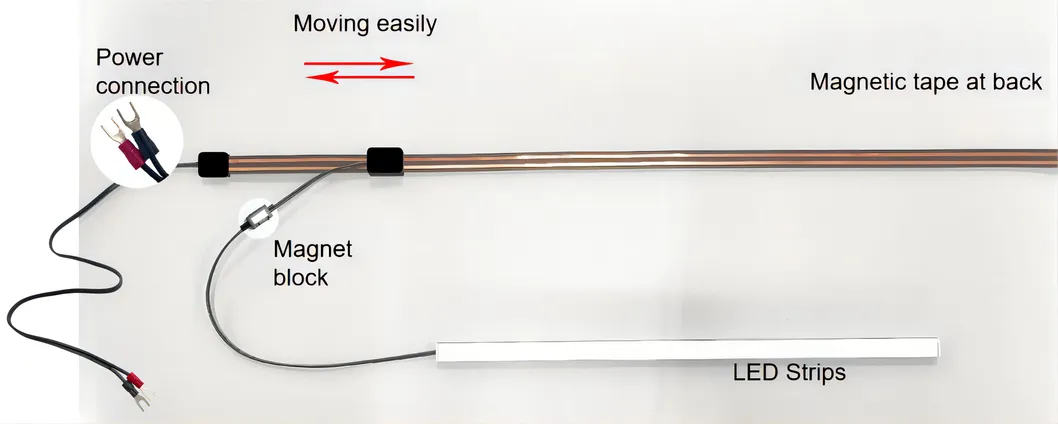

2. The Flexible Power Track is equipped with a magnetic plug, which can be connected to any position of the power track.
Installation

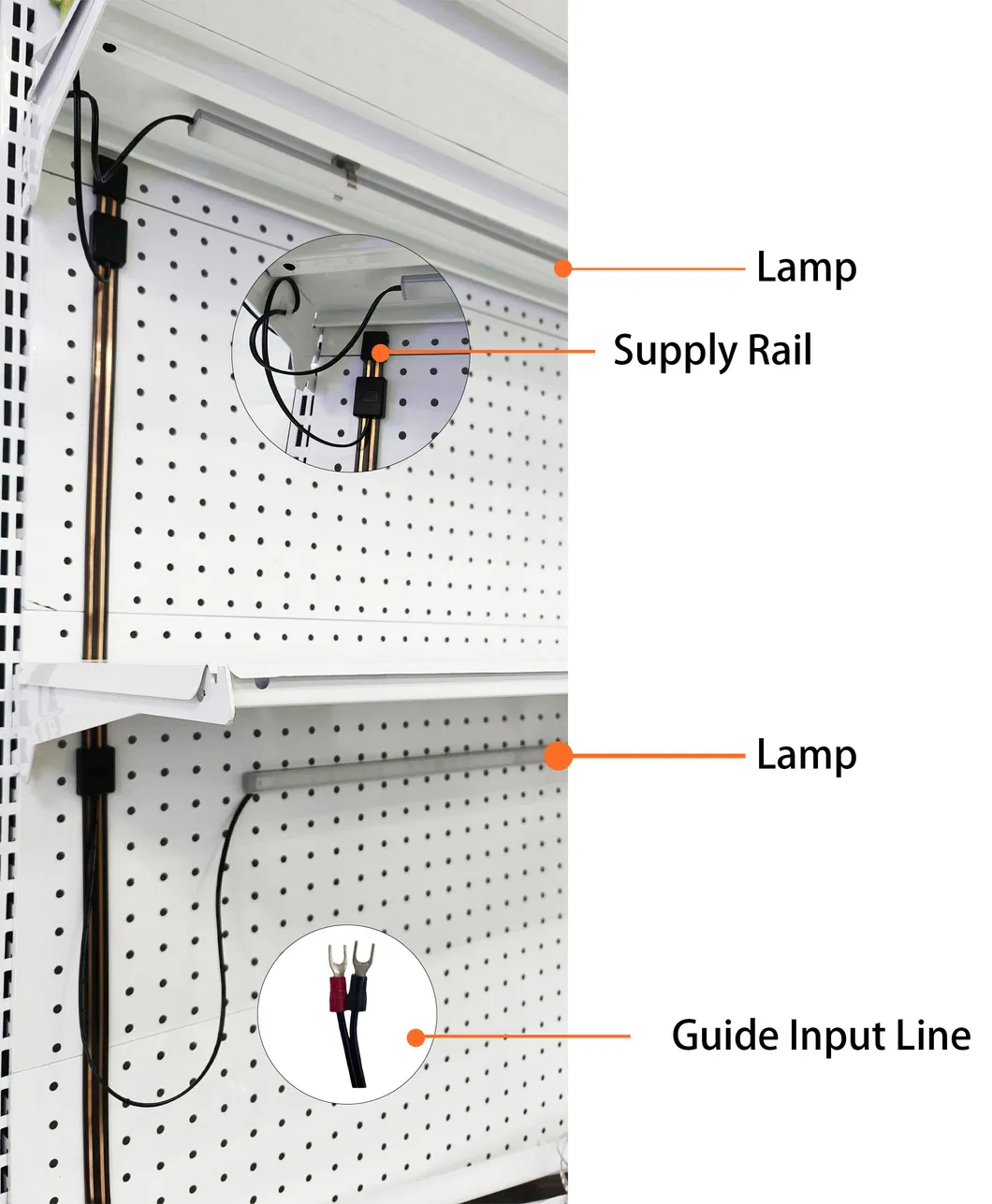

Installation Steps Diagram
1
Cutting: Cutting the length of the guide rail according to your demand.
2
Install the input end and the tail end on the guide rail.
3
Align the guide rail with the surface of the showcase to be installed. The installation surface must be iron (non-magnetic surfaces require double-sided tape). The guide rail will automatically attach to the mounting surface via the magnetic strip.
4
Connect the input power line: First connect the guide rail input line to the corresponding positive and negative terminals of the power supply according to the positive and negative markings on the power guide rail.
5
Insert the plug to access the power supply on the guide rail.
Application
Application 1

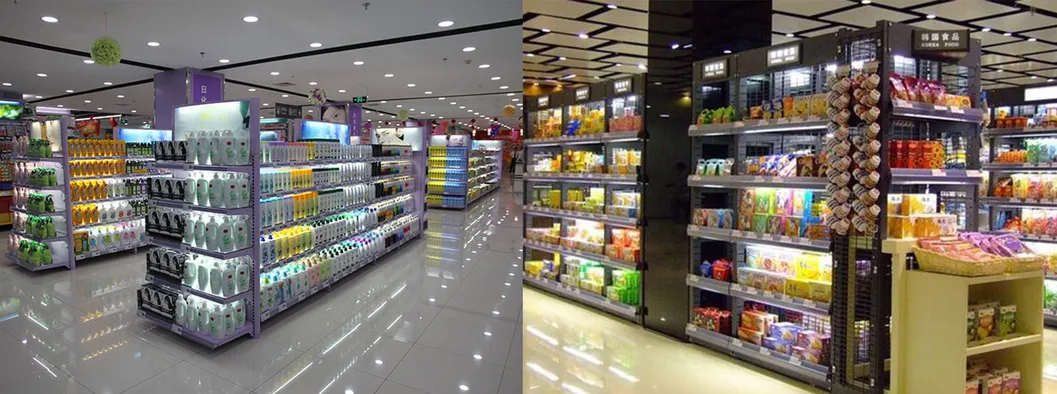

Application 2
Packaging & Shipping Terms
Trade Terms
  • Payment: Orders 100% payment advance by T/T, Paypal, Western Union.
  • Bulk Order: T/T 30% advance, 70% before shipping.
  • Delivery time: Samples / small orders 5-7 days; Mass order: 7-15 days.
Packing & Shipping Terms

Packing with Carton

Packing carton
  • FedEx / DHL / UPS / TNT for Door-to-Door delivery.
  • By Air or by Sea for mass goods, for FCL; Airport/ Seaport receiving.
  • Customer specified freight forwarding mode of transport.
Our Company

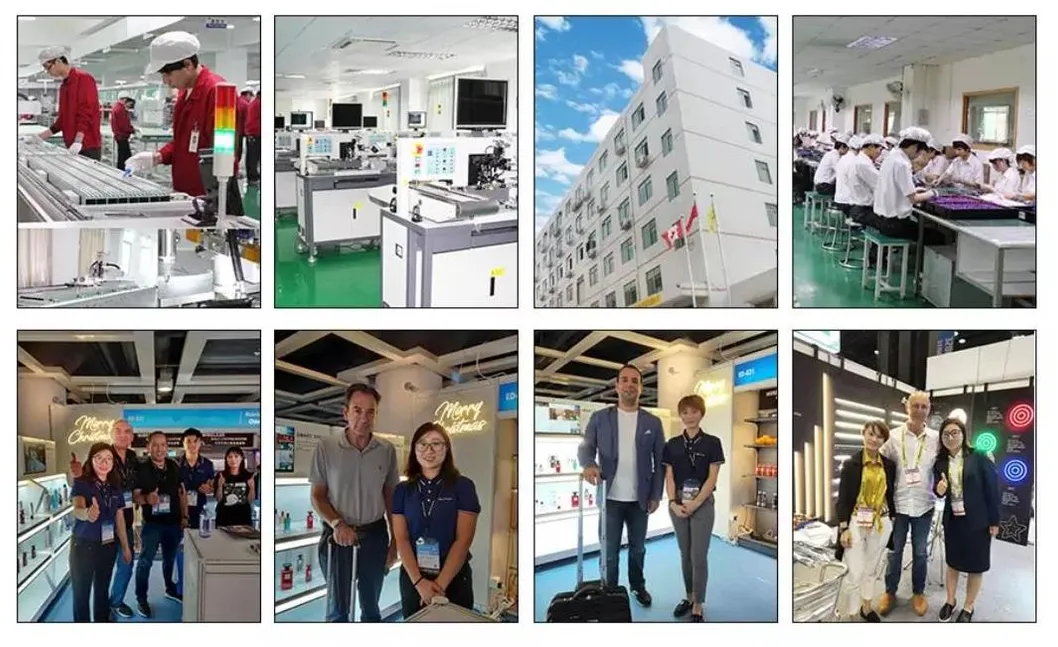

Factory Overview

Since 2008 our factory stepped into the LED lighting industry and focused on shelf and retail display lighting areas. We are very experienced and advantageous in product customization and considering more for our customers.

Our manufacturing facility is certified by ISO9001:2008 and ISO/TS16949:2009. We have a strong R&D team and sales service, along with more than 200 skilled shop-workers. Equipped with advanced manufacturing facilities, we devote much attention to internal management and implement 6S management in order to improve internal operations and the quality management system. We dedicate ourselves to being a reliable supplier and partner in the LED lighting industry.

We have achieved many international certificates, including CE, ROHS, ERP, FCC, UL, and PSE etc., to satisfy customers' needs from different countries and regions.

FAQ
What is your minimum order quantity (MOQ)?
Usually, our MOQ is 50m, but we also accept small orders for trial purposes.
Is a free sample order available?
Of course, you can check our quality before ordering. If you have any sample requirements, please contact us.
How long is the lead time?
Usually, our lead time is 7-10 working days, depending on the order quantity. Bulk orders take 20-25 days. If the order is urgent, we can arrange for prioritized production.
Can the LED strip/track system be customized?
Sure. We can produce according to your specific requirements, such as LEDs type, power, length, and waterproof level. We also offer OEM & ODM services.
What is your product warranty?
We provide 3-year and 5-year warranties depending on the specific configurations.
Do your products hold international certifications?
Yes, our lighting equipment is fully certified. We hold CE, UL, ROHS, CULUS, ETL, TUV, FCC, and Energy Star certificates. We are also certified under IATF/ISO/TS 16949.
