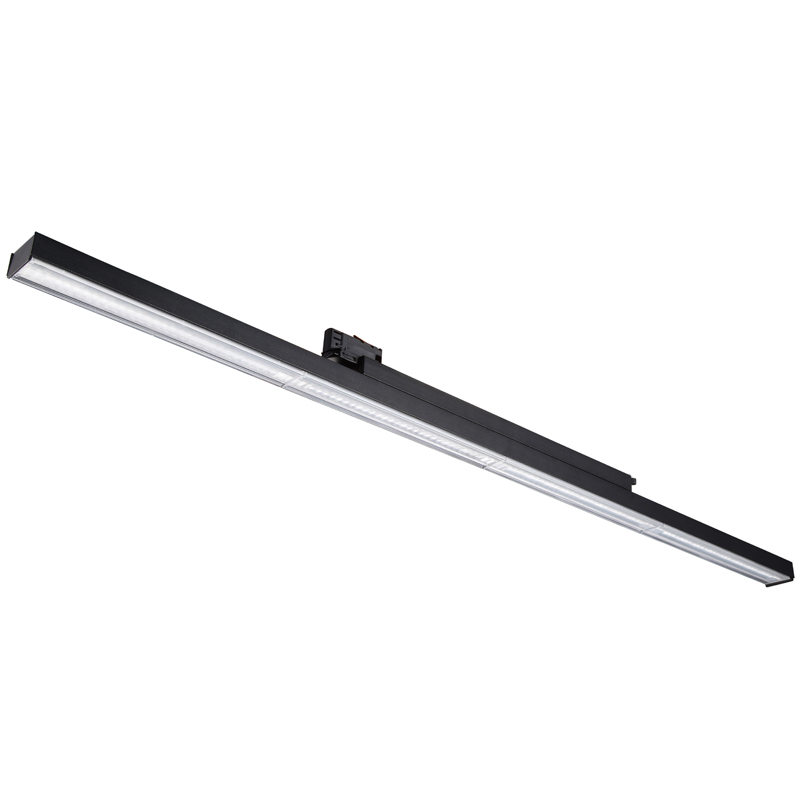

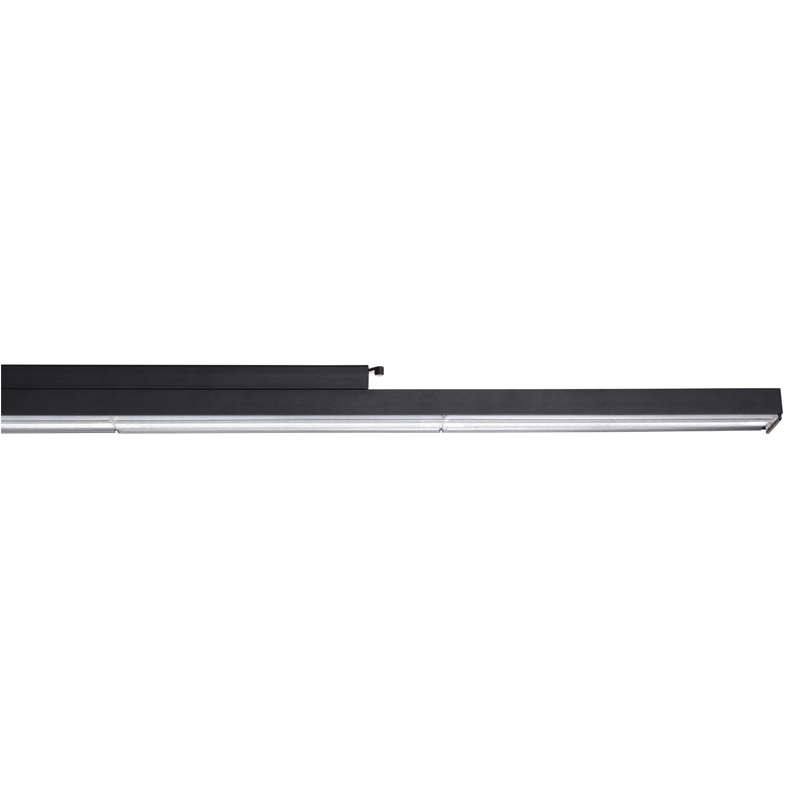

Product Description
✔
TL30L31 originally researched and developed, 5 years warranty.
✔
High-End spotlight with internal driver, die casting aluminum housing with convective holes for better heat dissipation.
✔
Using international top Lumileds /Osram SMD2835 Chip, brilliant quality, more than 50,000 hours life span.
✔
Various beam angle 120° for option with uniform light distribution, 90-100lm/w Light efficiency.
Linear LED track light Drawing
Linear LED track light specification
| Power |
55W |
| Light Source Brand |
Lumileds/Osram SMD 2835 |
| CCT |
2700/3000/3500/4000/5000k |
| CRI |
85/92Ra |
| SDCM |
<3 |
| Beam angle |
120° |
| Optics |
Diffuser / Frosted cover |
| Track adapter |
3/4wires, powergear, global |
| Protection Class |
20 |
| Warranty |
5 Years |
| LED Luminaire output |
110-120 LM/W |
| Light luminaire output |
90-100LM/W |
| Test report |
IES / Integrating sphere |
| Housing Material |
Die-casting Aluminum |
| Housing Size |
L1137*W46*H28mm |
| Colour of housing |
Matt white(9016)/Matt black (9011) |
| PF |
>0.9 |
| THD |
<15 |
| Flicker |
Flicker free |
| Standard Certification |
GS/TUV/SAA/CE/CB/ENEC/RoHS |

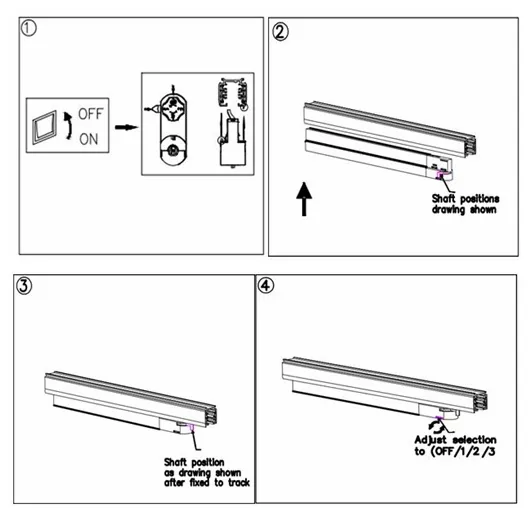

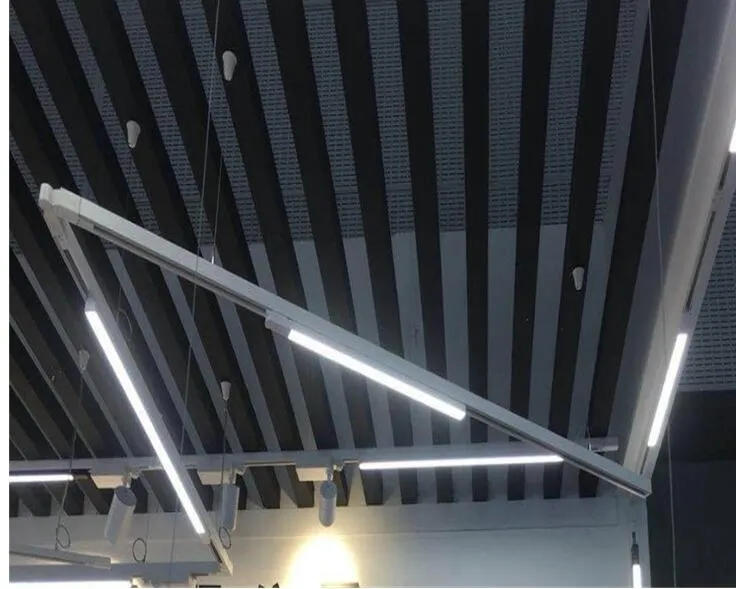

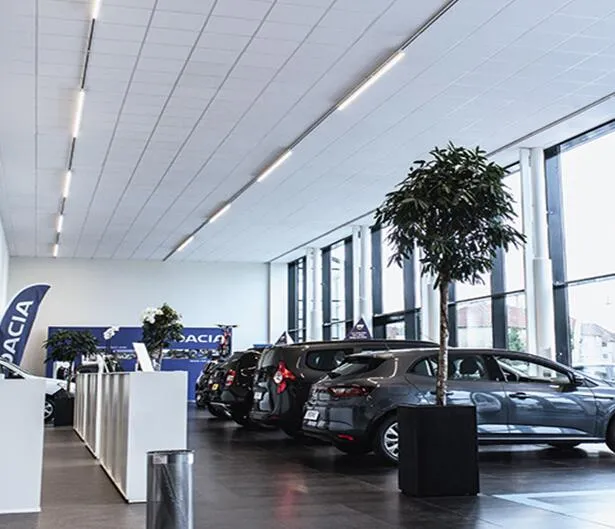

Linear LED track light installation method
# We can also provide you other magnetic linear track light for you
# China Magnetic LED track light supplier
# China LED track light supplier
Frequently Asked Questions
What is the warranty period for this linear LED track light?
This linear LED track light features high-end manufacturing standards and comes with a reliable 5-year warranty.
What materials are used for the outer housing, and how is heat managed?
The housing is manufactured using premium die-casting aluminum and features specialized convective holes to optimize heat dissipation, extending the lifespan to over 50,000 hours.
Which LED chips and drivers does this fixture use?
This fixture is equipped with international top-tier Lumileds or Osram SMD2835 chips, combined with a built-in internal driver for brilliant quality and stable performance.
What are the available beam angles and light efficiency ratings?
The light comes with a 120° beam angle option for uniform light distribution. The fixture delivers 90-100 LM/W overall output, with a light source efficiency of 110-120 LM/W.
Is this light compatible with standard track systems?
Yes, it is designed with highly compatible track adapters suitable for 3/4 wires, Powergear, and global standard track systems.
What certifications does this product carry?
The product is fully certified with international standards including GS, TUV, SAA, CE, CB, ENEC, and RoHS.
