Saso cUL Ce CB 28W-150W shop light Best Array Dimmable Industrial Linkable LED Track Linear Lights Made in China for Home & Business Indoor Lighting

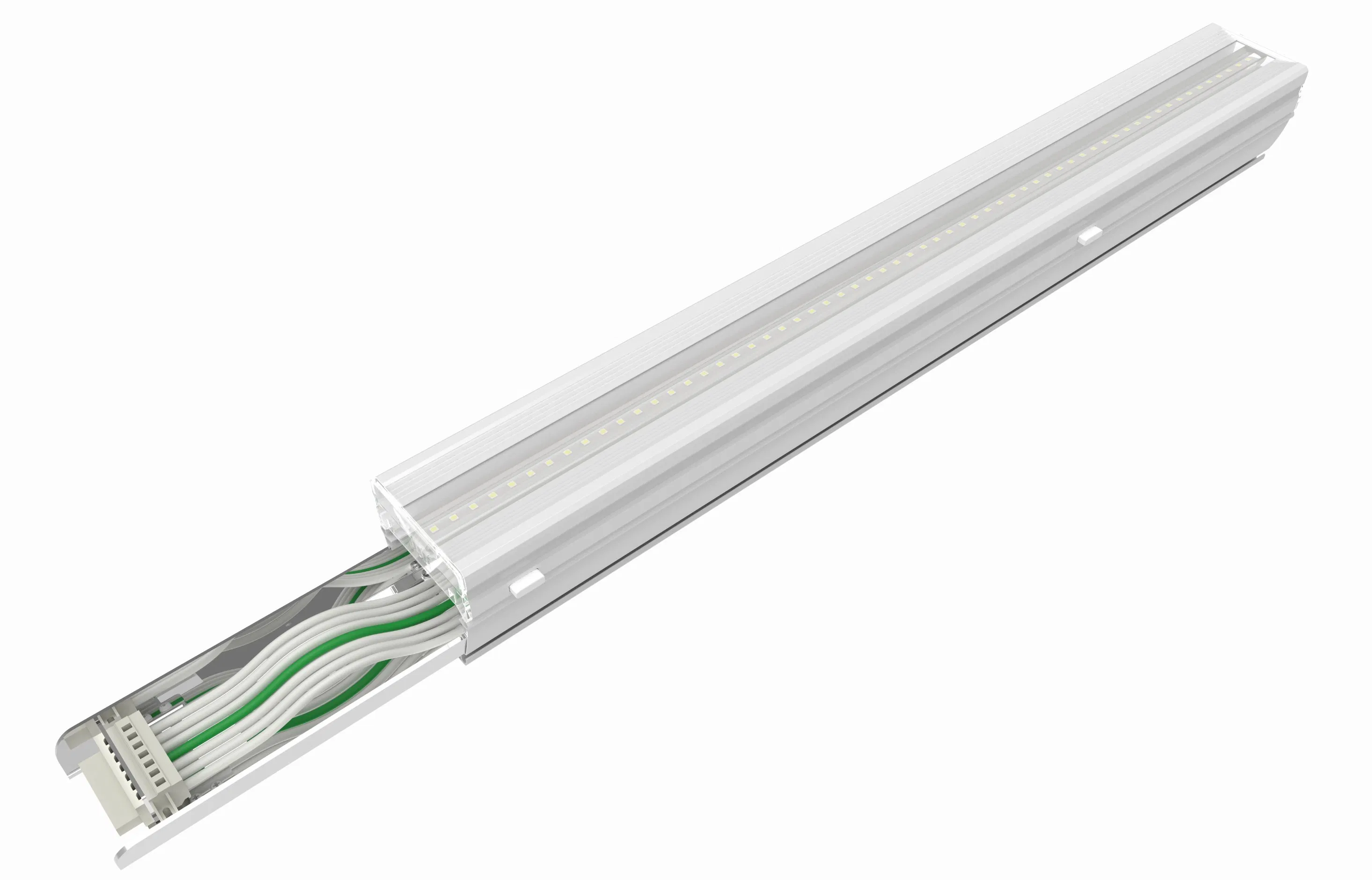

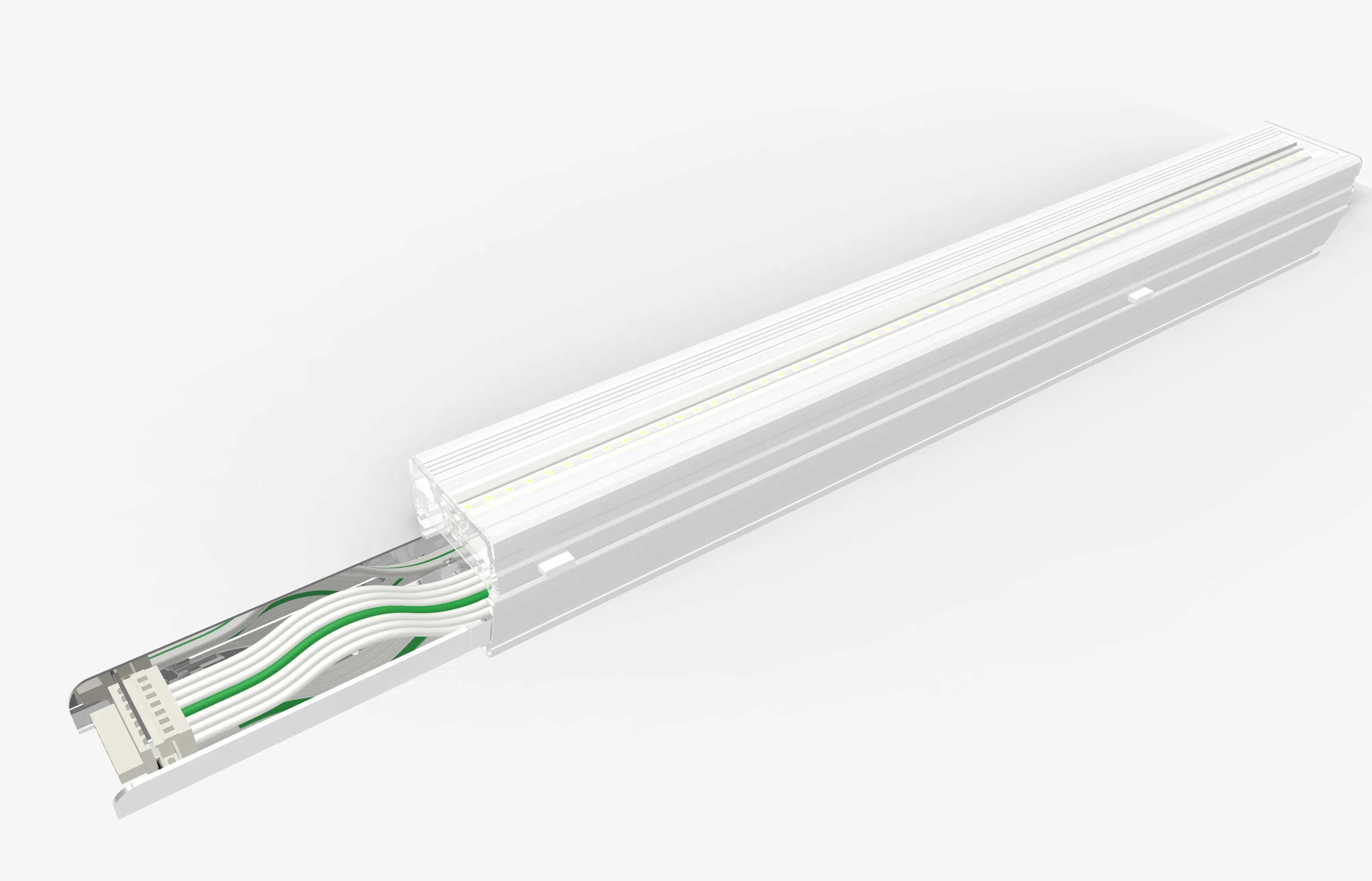

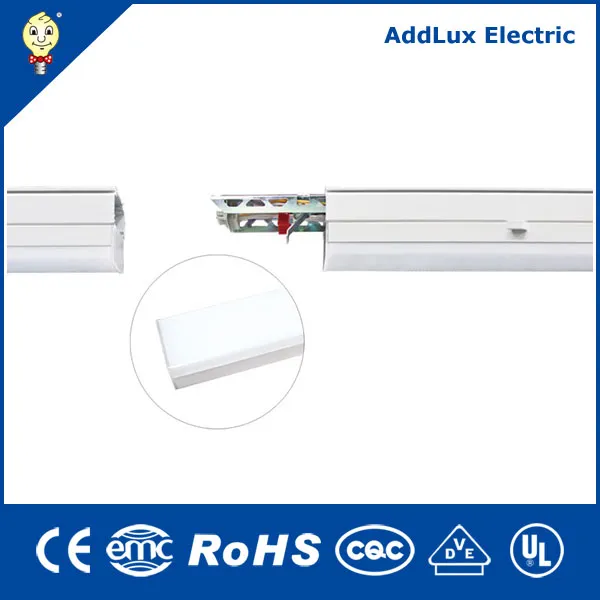

A continuous-row LED lighting system could be created only by a trunking unit and a LED luminaire. It appears as a consistent continuous-row system, without any visual interruption or different reflectors. The luminaire and trunking are perfectly matched to each other as array dimmable linkable LED linear lights.
With a color rendering index of Ra>80, color temperatures of 3000k, 4000k, 5000k and 6000k, and low UGR, it could meet environmental requirements and comply with funding guidelines for energy-efficient building and lighting solutions.
For special applications where require high accuracy of color, such as in museum, jewelry store, printing factory and so on, CRI 95 linear series is highly recommended.
| Item No. | Length | Power | Lumen |
|---|---|---|---|
| YB01Z0632 | 577mm | 28W | 4160Lm |
| YB01Z1575 | 1432mm | 75W | 9750Lm |
| YB01Z30150 | 2861mm | 150W | 19500Lm |
| YB01Z45225 | 4297mm | 225W | 29250Lm |

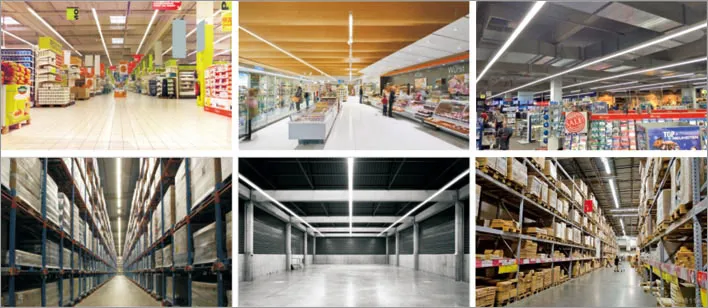

The LED linear lighting system is an energy-efficient, low maintenance better alternative to traditional linear fluorescent in a variety of industrial, commercial and light assembly applications. It is the optimal solution for conventional lighting systems and also excellent for new installations. Due to its low installation cost, everything is in one box and installation is tool-less. It saves both time and costs when installing lighting systems. Also the LED linear lighting system is really good in terms of the low maintenance. That's typical for LED lighting and this also keeps costs low.
One of LED lights always meet your requirements of widely application for home lighting or business lighting.

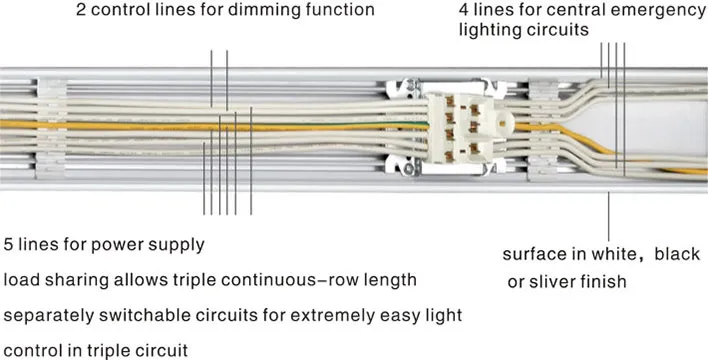

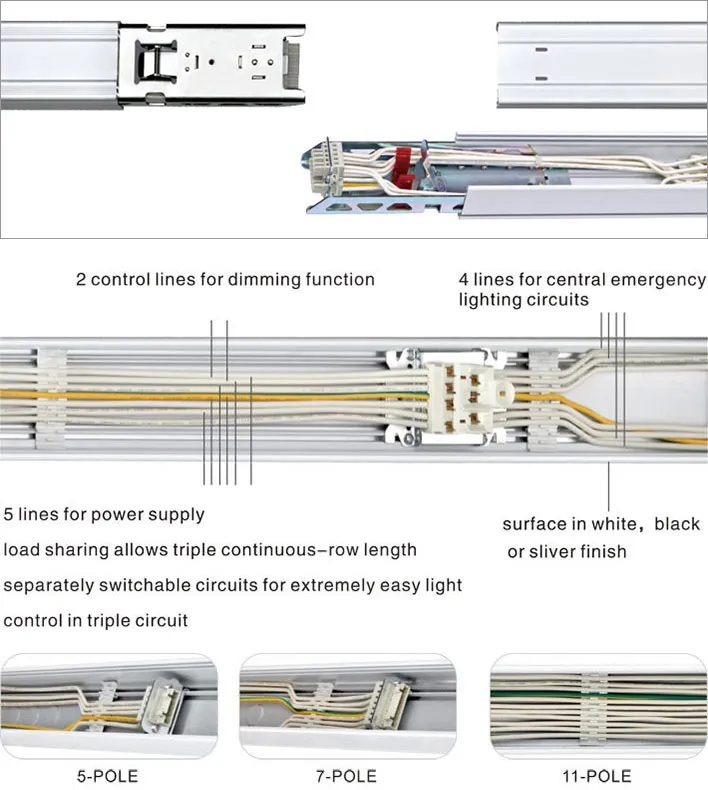

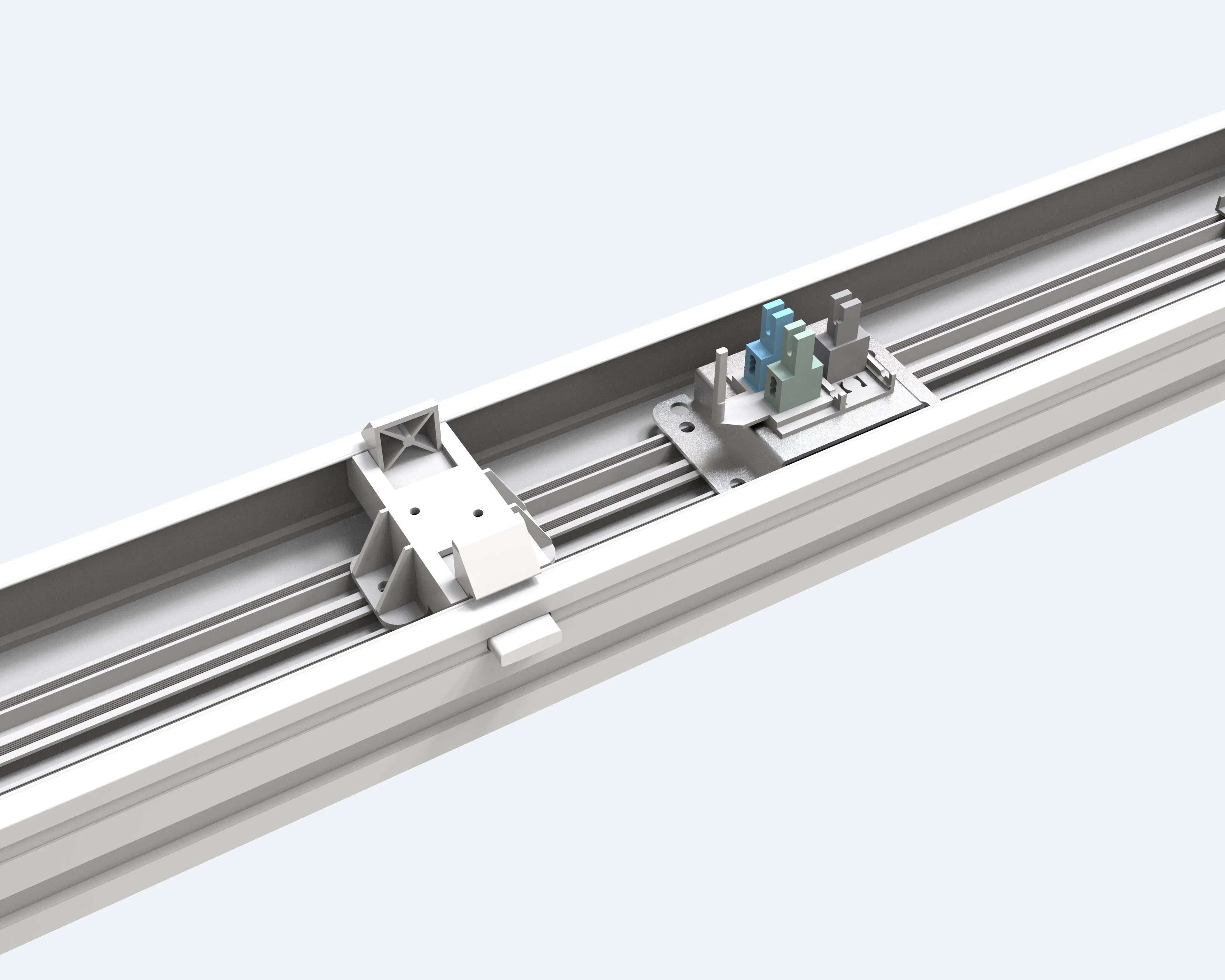

The flexible trunking system for lighting demands in all application, with full compatible modular kit, it adapts individually to complex lighting tasks. It has an 11-pole current conducting section built into its trunking. This means that the system comes ready equipped to meet tomorrow's needs. All functions such as power supply, lighting control and connection to emergency lighting are seamlessly integrated into this multifunctional trunking. Luminaires can be positioned flexibly and the system can be adapted to suit structural alterations at any time.
The trunking rail is simply a matter of replacing or adding lighting modulars, light sources or optics as required.

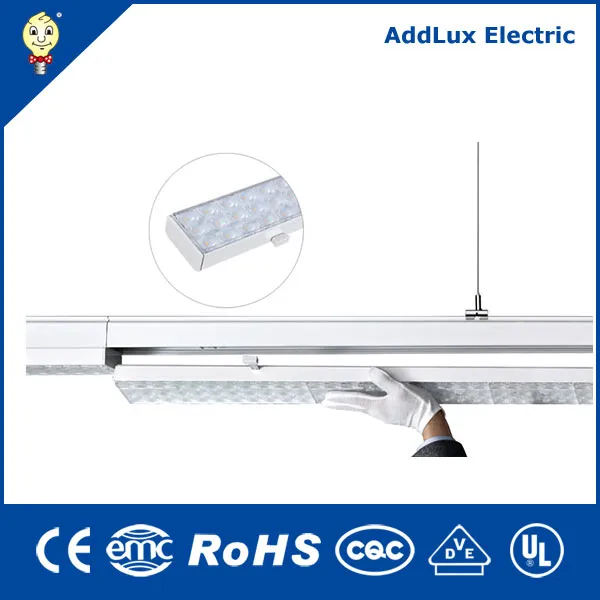

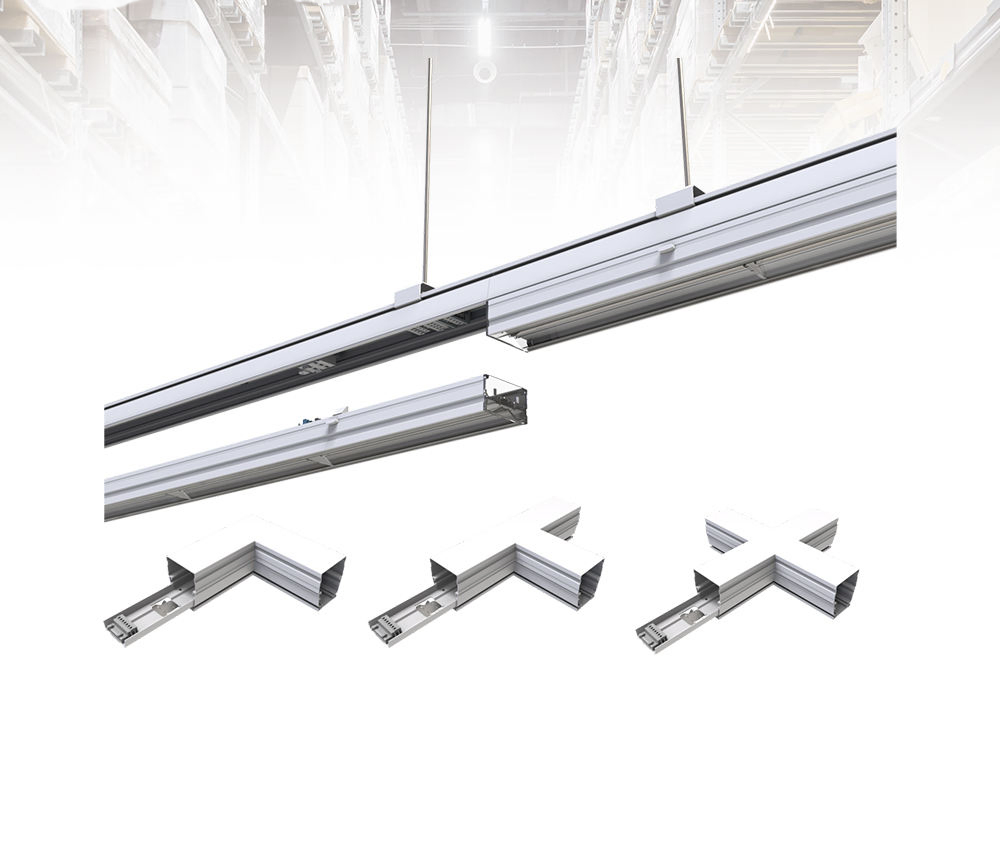

All system components can be combined without tools. L, T and X connectors expand the system's application range.

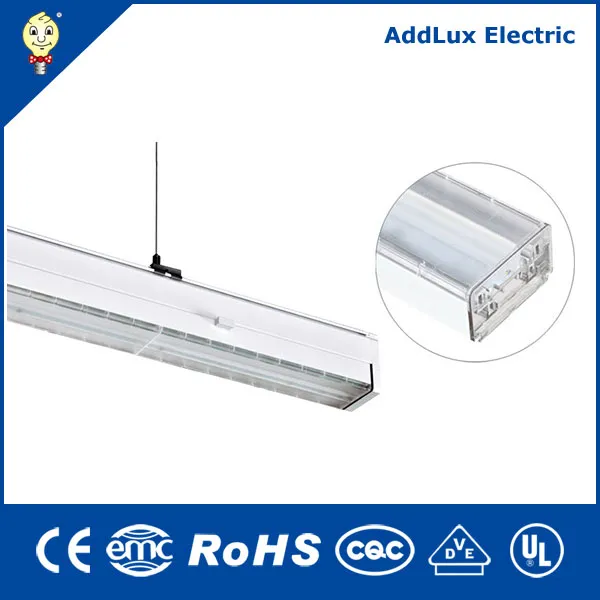

Different diffuser for different distribution.
Optics
A wide range of optics from sharp to wide distribution, as well as asymmetric.
Efficient tools for lighting are the basis for solution with low operating overheads and high quality of light. Supplemented with suitable light control savings potential can be further significantly increased. The right type of light management depends decisively on the specific building conditions and usage of the area. With a wide variety of dimming light control systems with suitable sensor technology, and thanks to open, non-proprietary standards, such solutions can be simply integrated into common building management systems.
Dimming system is suitable for complex applications for controlling rooms and storey, for daylight-dependent control and dynamic light control. 3 types of dimming are available:
Emergency lighting systems ensure optimum lighting and orientation, even in the event of a power failure. General lighting and emergency lighting are combined in a single highly functional, integrative lighting solution.
A small spot light is available on 600mm module as an extra version featuring a rotating lighting head for emergency use of 5W.
Multi-sensor system combines energy saving with high convenience for user. Most energy can be saved by integrating motion and daylight sensor.

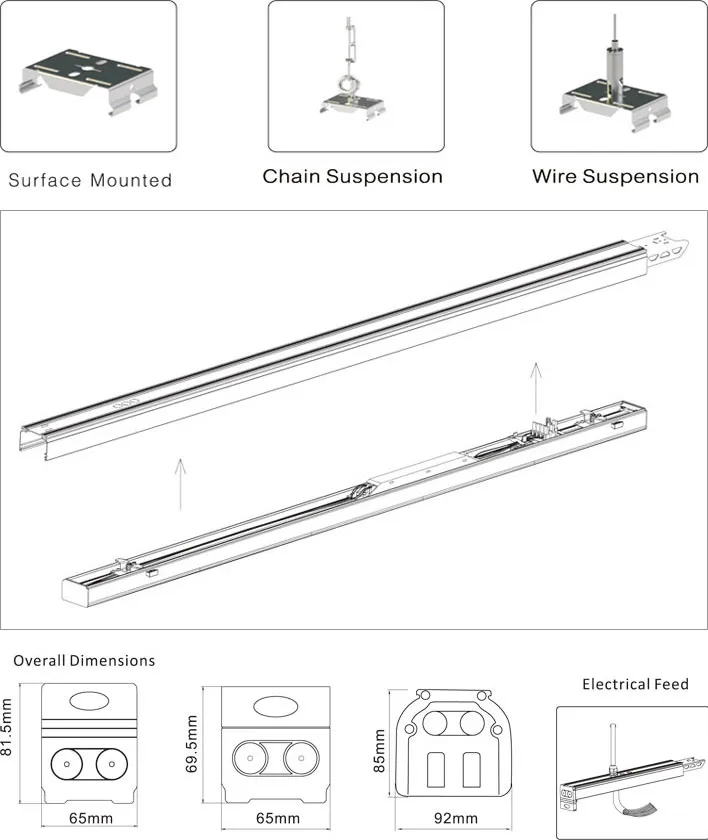

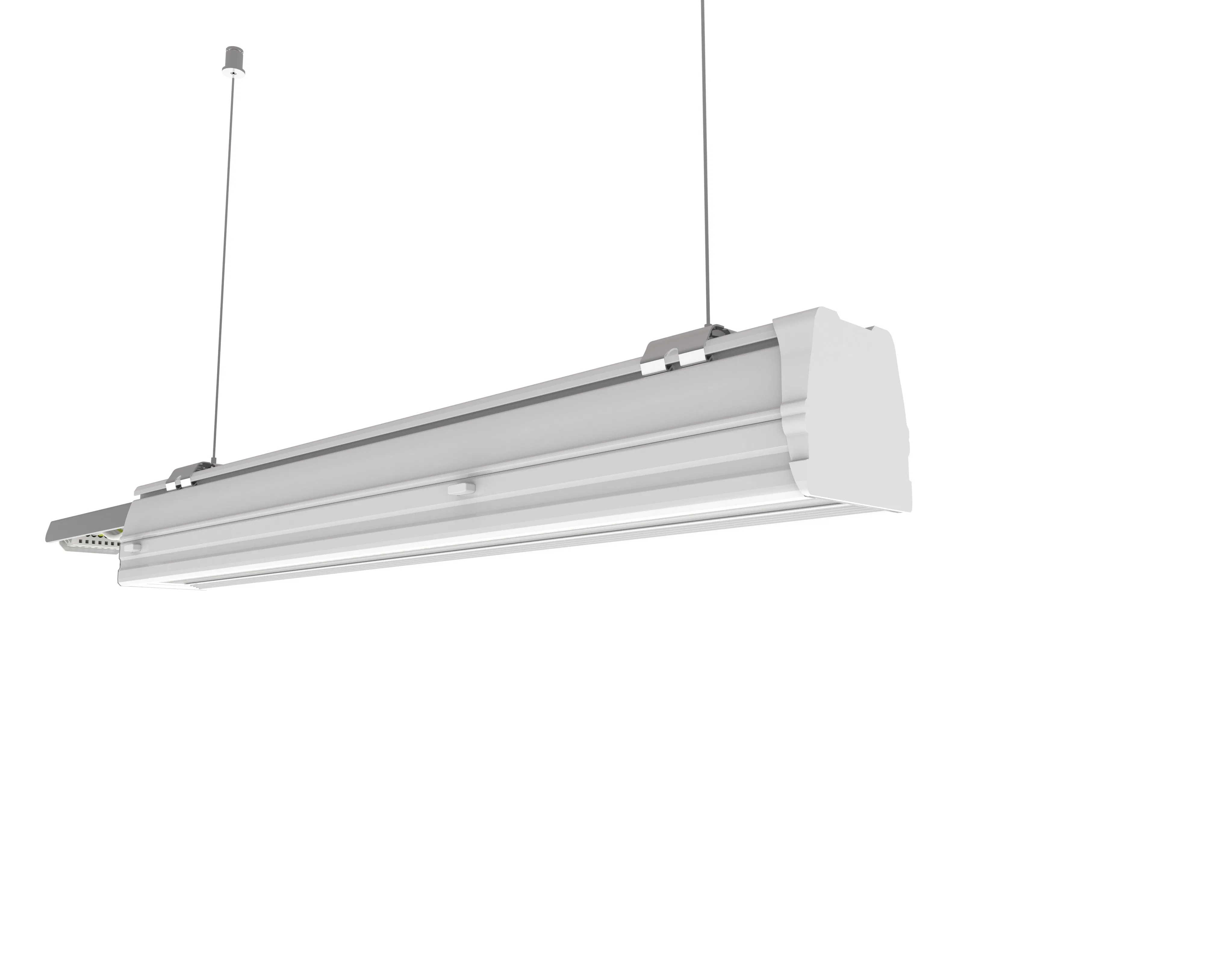

A maximum suspension span of 3m ensures quick and easy installation with fewer suspension points.
The system supports 3 types of dimming: DALI dimming, 1-10V dimming, and DIM switch configurations, allowing for seamless integration into common building management systems.
A wide range of optics are available to support different requirements: Sharp distribution (30°), Narrow distribution (60°), Wide distribution (90°), Flat distribution (120°), as well as Asymmetric (left/right) and Double Asymmetric distributions.
Yes, emergency and general lighting can be combined. Options include central battery/generator compatibility and self-contained Ni-MH batteries supporting 12W or 6W operation for 1.5 to 3 hours.
No, the installation is tool-free and cost-efficient. The system comes as a fully compatible modular kit that supports surface ceiling mounting, wall mounting, and pendant suspension with a maximum span of 3m.
The standard fixtures offer a rendering index of Ra > 80. For specific applications requiring exceptional color accuracy—like museums, jewelry stores, or printing factories—a high CRI 95 series is also available.
The multi-sensor system maximizes energy savings by integrating motion and daylight sensors. It supports both group and broadcast control and provides protection against solid objects, dust ingress, and splashing water.
