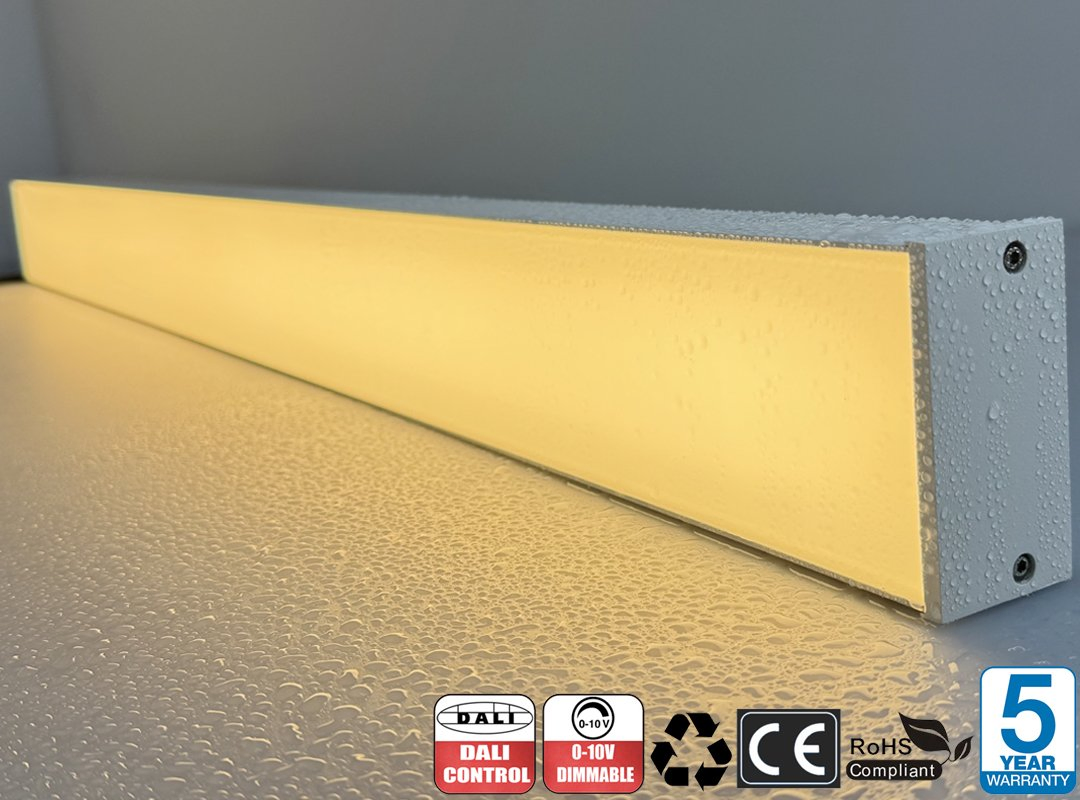

IP65 W80xH40mm Waterproof Profile LED Linear Light
Product Parameters
| Input Voltage |
AC100-277V / AC220-240V, 50-60HZ |
| Material |
6063 Aluminium Profile + Opal Diffuser |
| Profile Size |
W80*H40mm |
| Length Option |
600mm / 1200mm / 1500mm / 1800mm / 2400mm |
| LED Chip |
SMD2835 |
| Driver Brand |
AIDIMMING |
| Color Temperature |
3000K / 4000K / 6000K |
| Luminous Flux |
100-110Lm/W |
| CRI |
>80Ra |
| PF |
>0.90 |
| Flicker Free |
Yes |
| Function Option |
Non-dimming / 0-10V dimming / Triac dimming / DALI dimming |
| Finish Color Option |
Black / White |
| Installation Method |
Suspended Mount / Ceiling Surface Mount / Wall Mount |
| IP Grade |
IP65 |
| Warranty |
5 years |
| Model No. |
Watt |
Lumens |
Size |
Input Voltage |
CCT |
| EN-X8040FS-20 |
20W |
2000Lm |
L600*W80*H40mm |
AC100-277V/AC220-240V |
3000K/4000K/6000K |
| EN-X8040FS-40 |
40W |
4000Lm |
L1200*W80*H40mm |
AC100-277V/AC220-240V |
3000K/4000K/6000K |
| EN-X8040FS-50 |
50W |
5000Lm |
L1500*W80*H40mm |
AC100-277V/AC220-240V |
3000K/4000K/6000K |
| EN-X8040FS-60 |
60W |
6000Lm |
L1800*W80*H40mm |
AC100-277V/AC220-240V |
3000K/4000K/6000K |
| EN-X8040FS-80 |
80W |
8000Lm |
L2400*W80*H40mm |
AC100-277V/AC220-240V |
3000K/4000K/6000K |

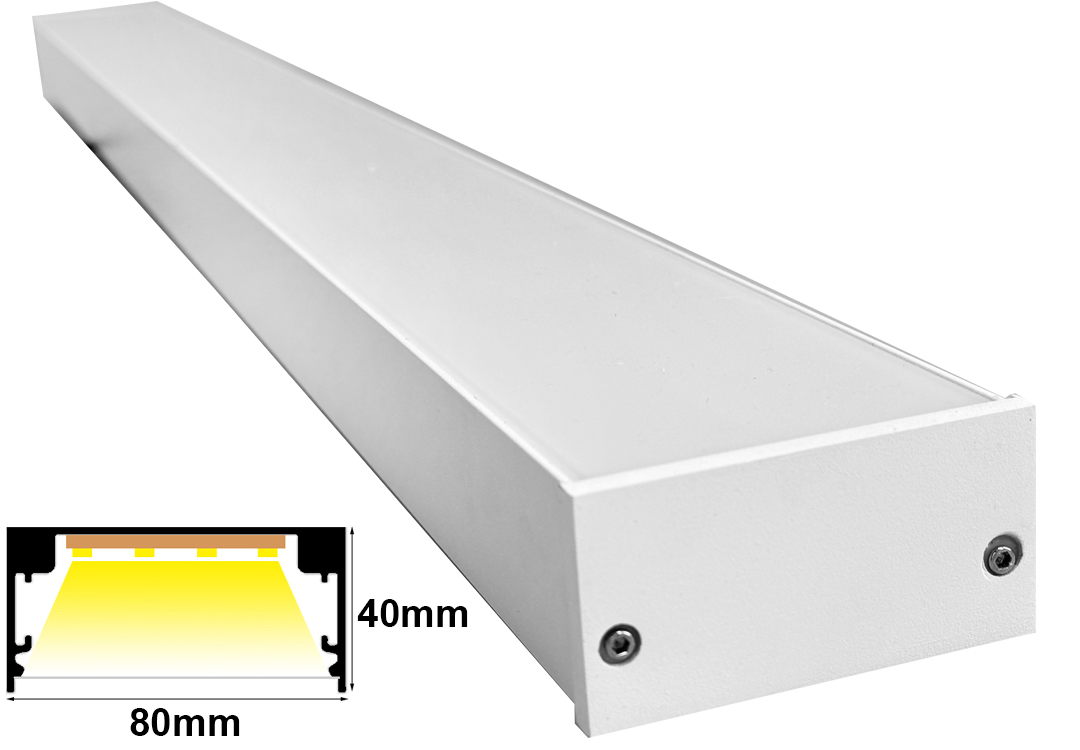

Product Size

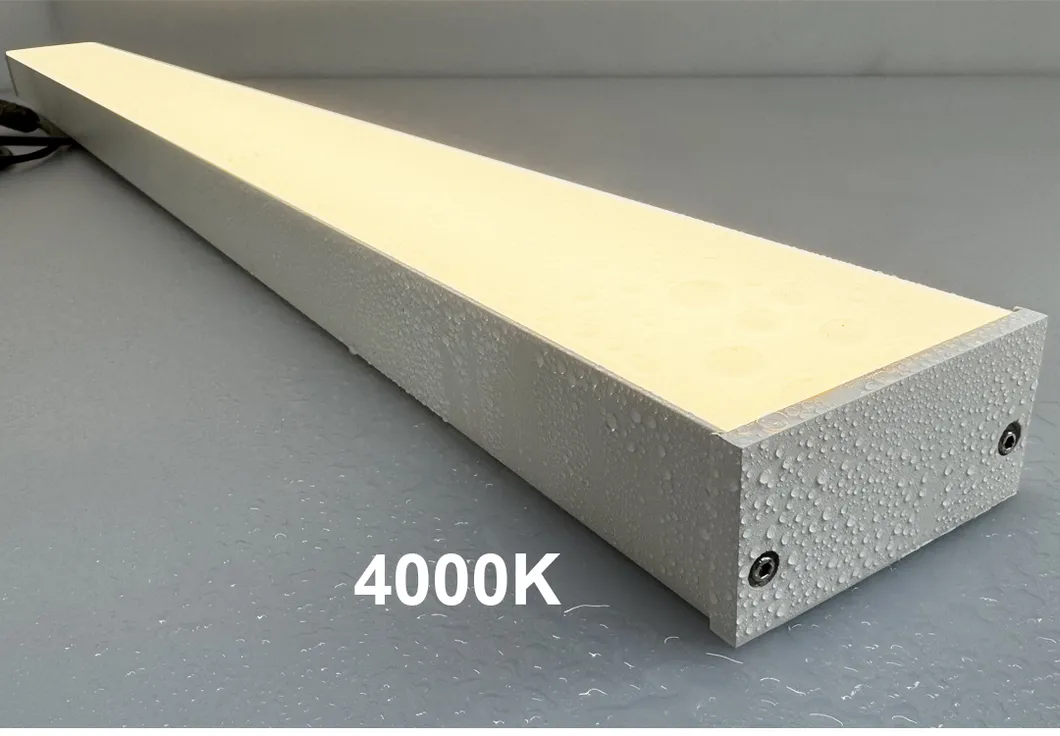

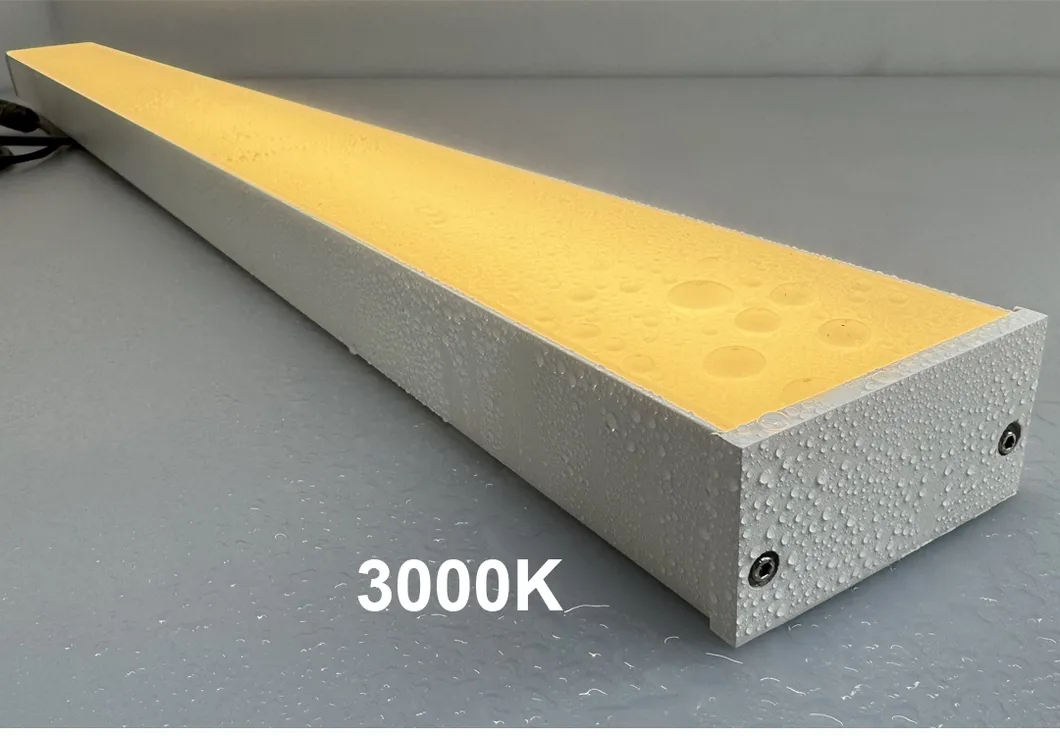

Emitting Color Option

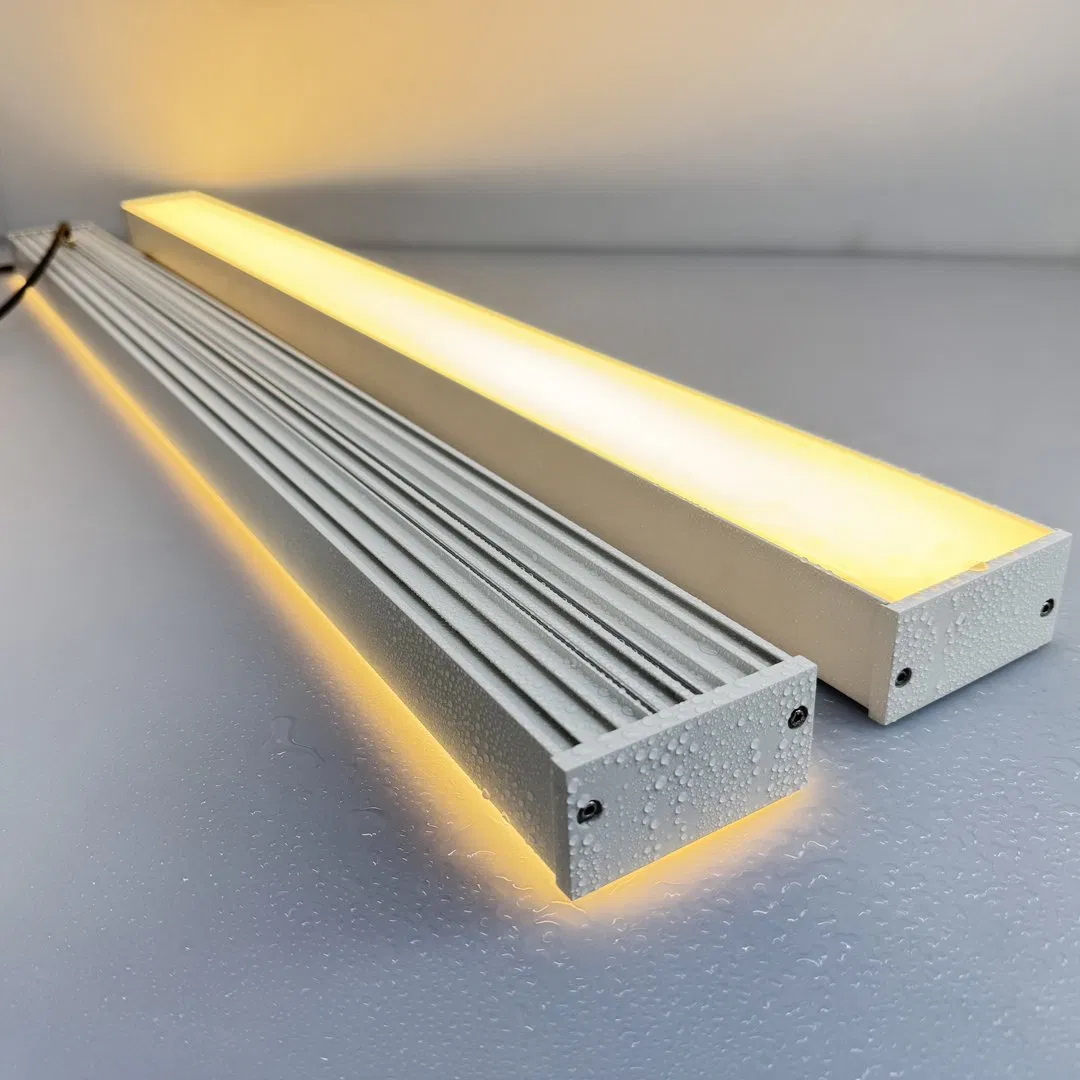

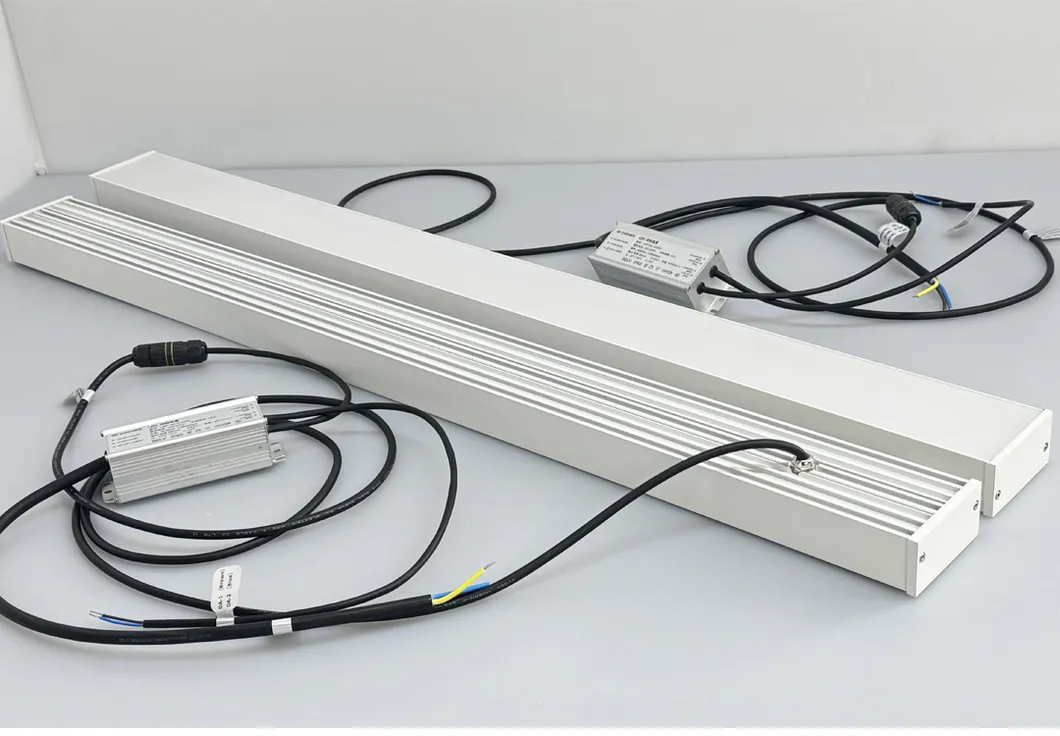

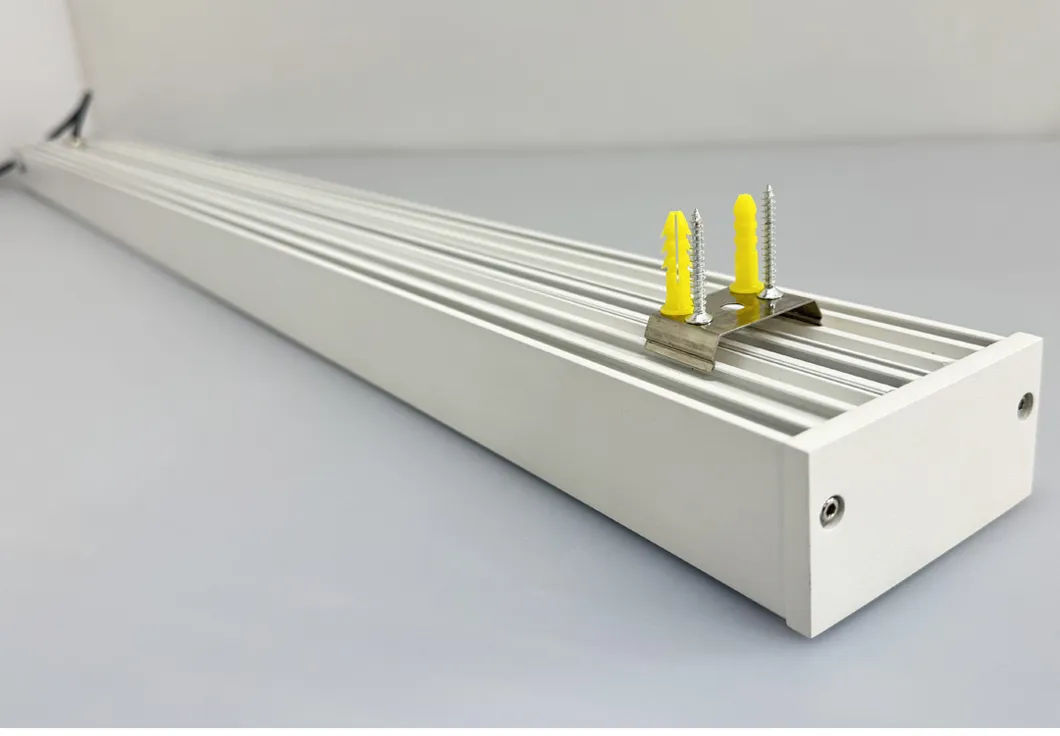

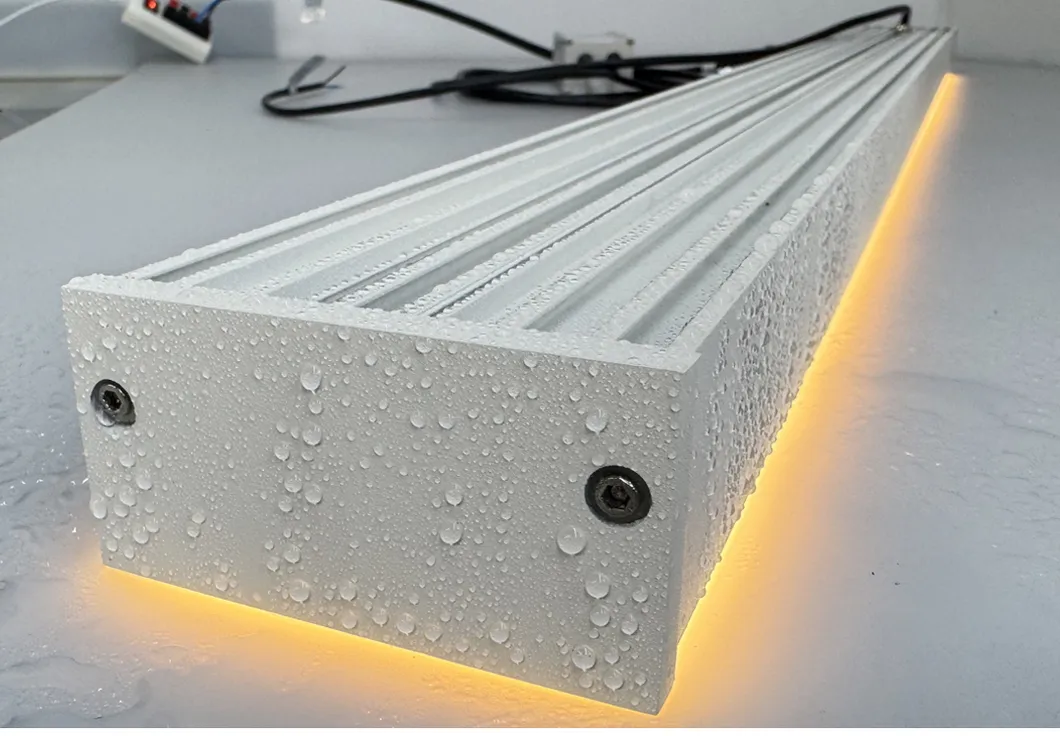

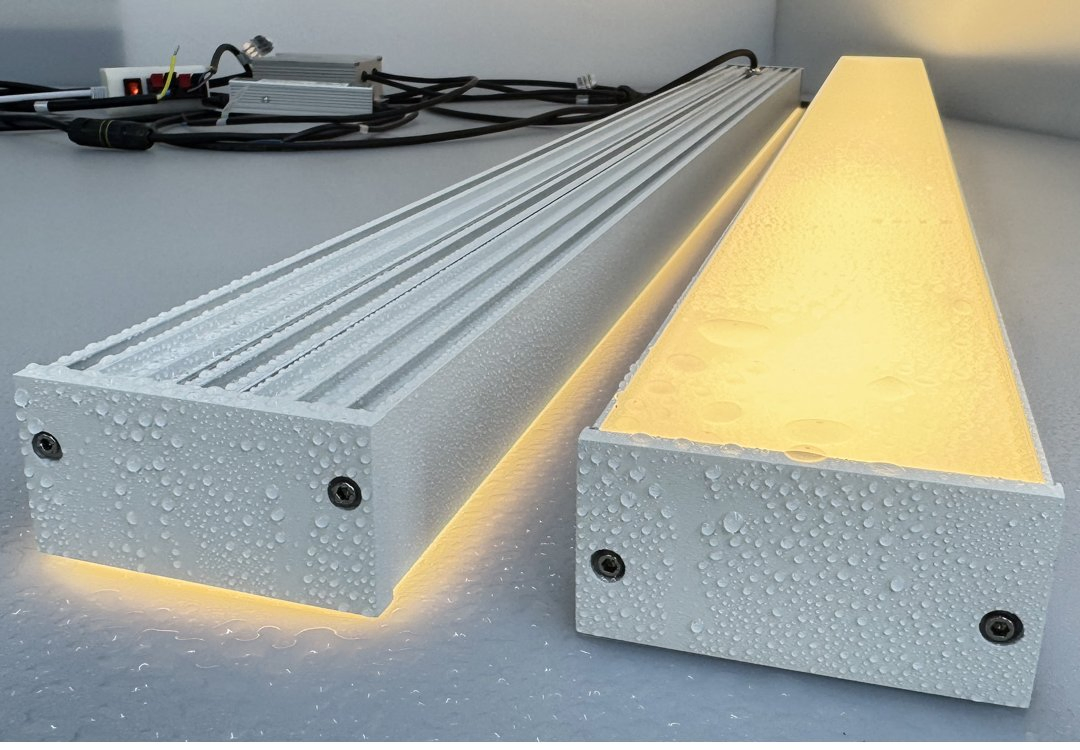

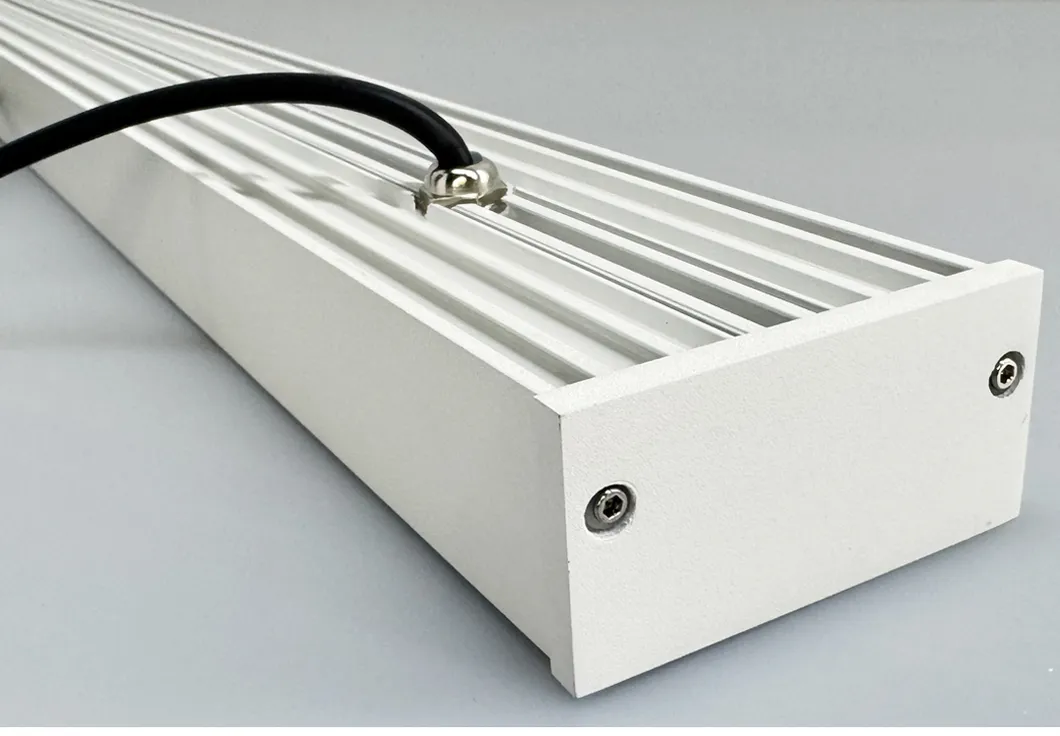

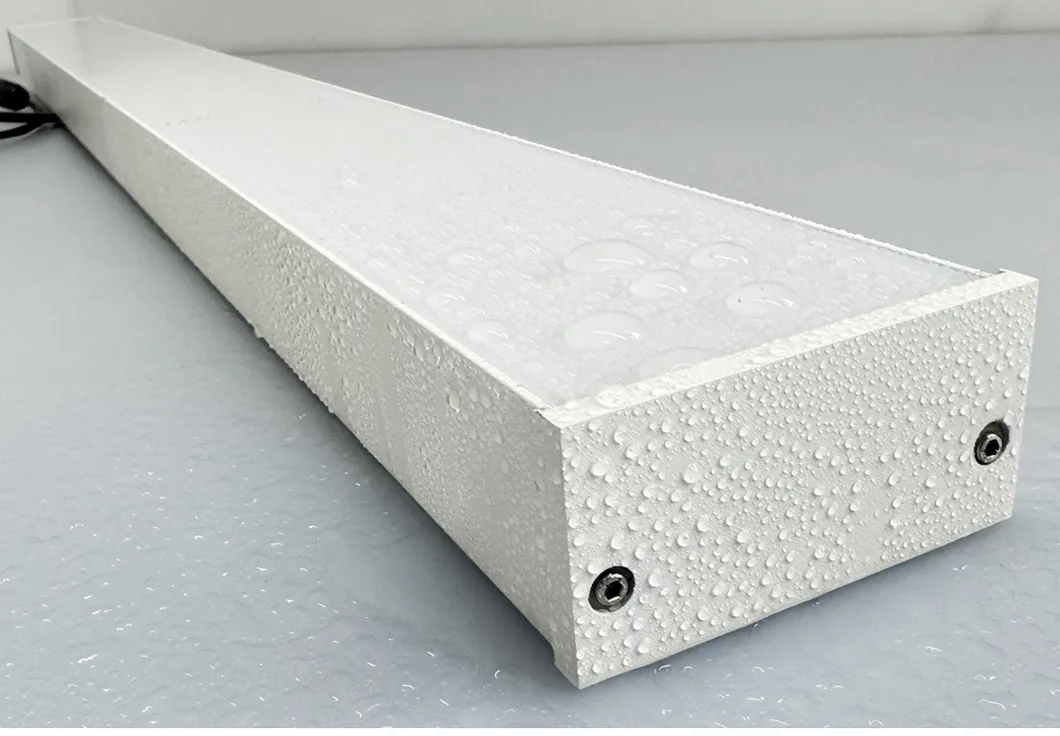

Product Display

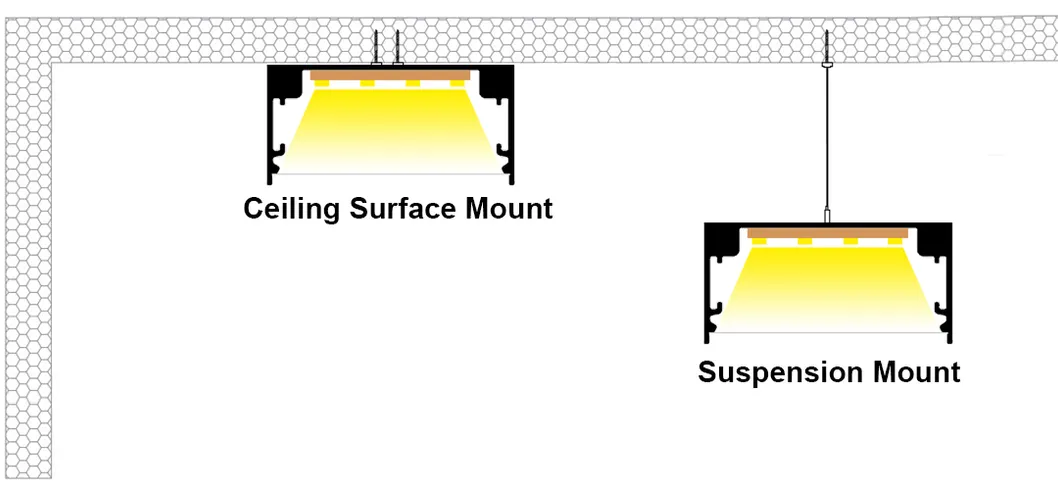

Installation Method
Control Type
- ON/OFF
- 0-10V dimming
- Triac dimming
- DALI dimming
Features
- Extruded aluminium profile.
- Die-cast aluminium end cap.
- Clip-in PMMA diffuser.
- High lumens LED board.
- Built-in driver.
- Wide-beam light distribution.
- Range of length options, OEM available.

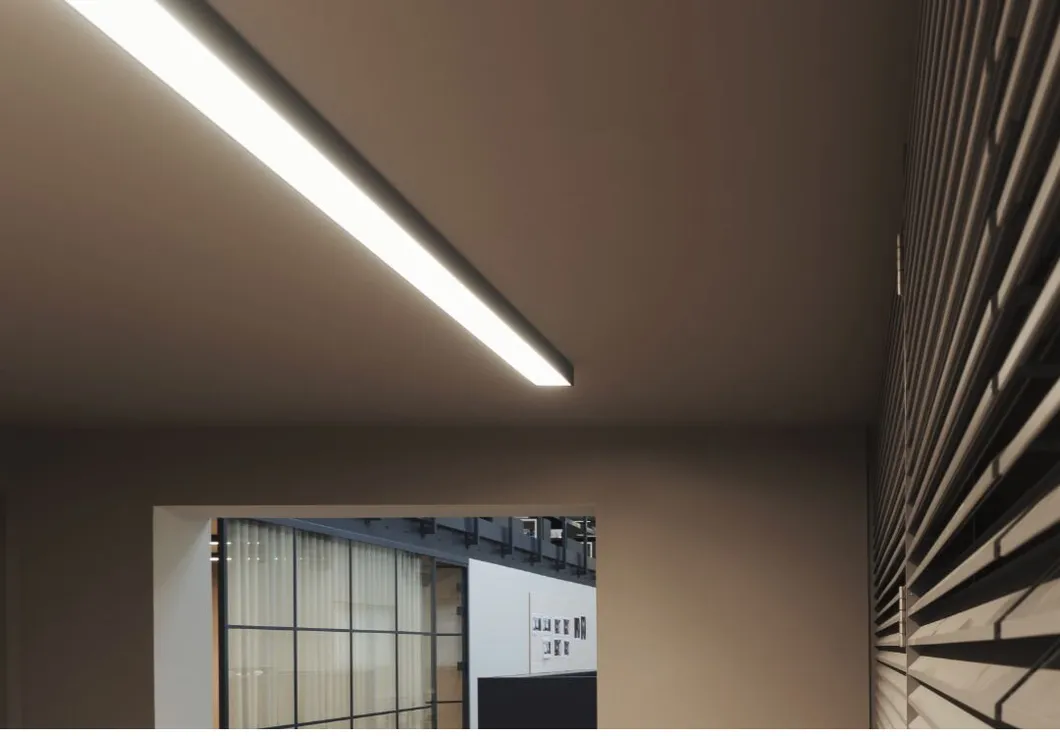

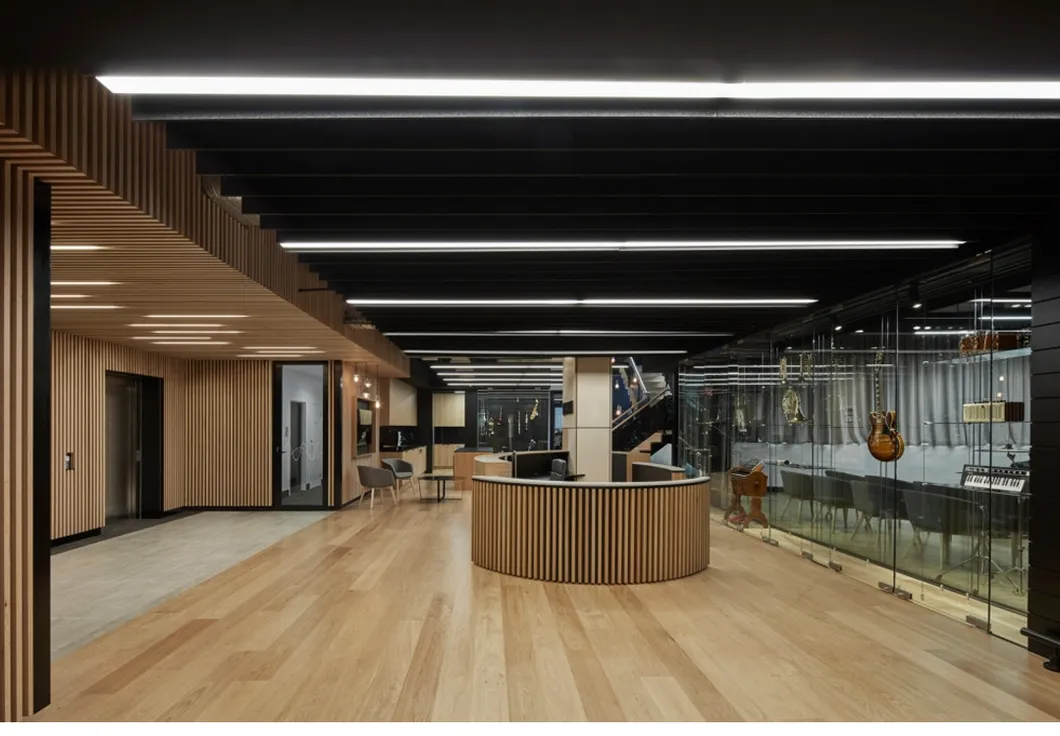

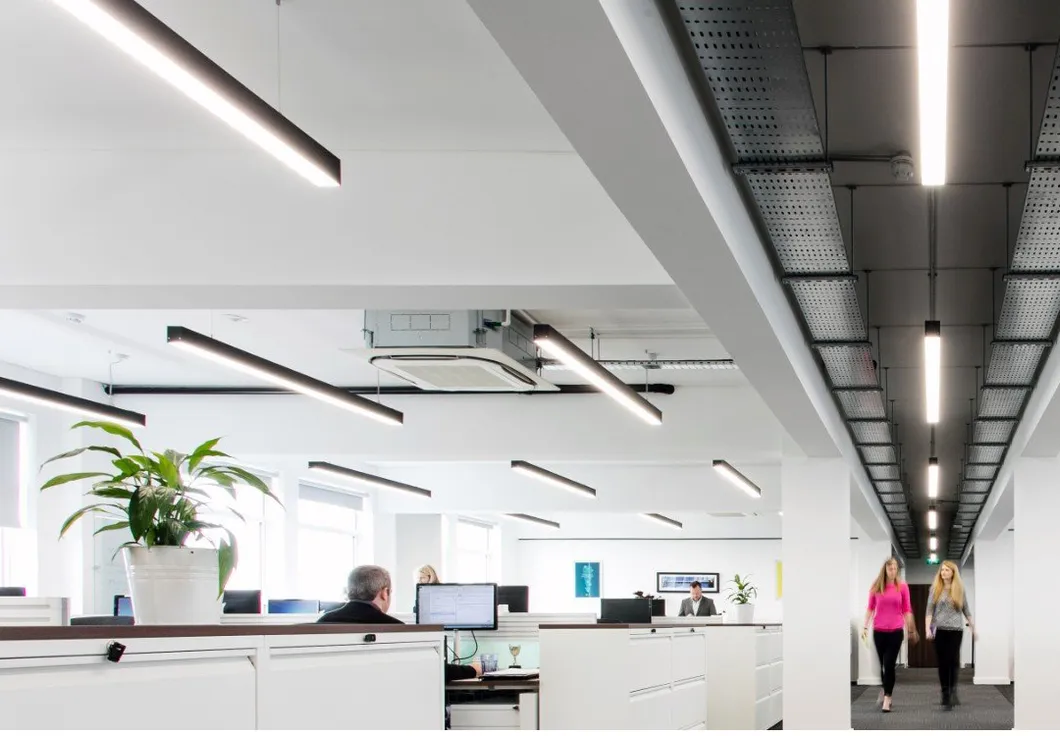

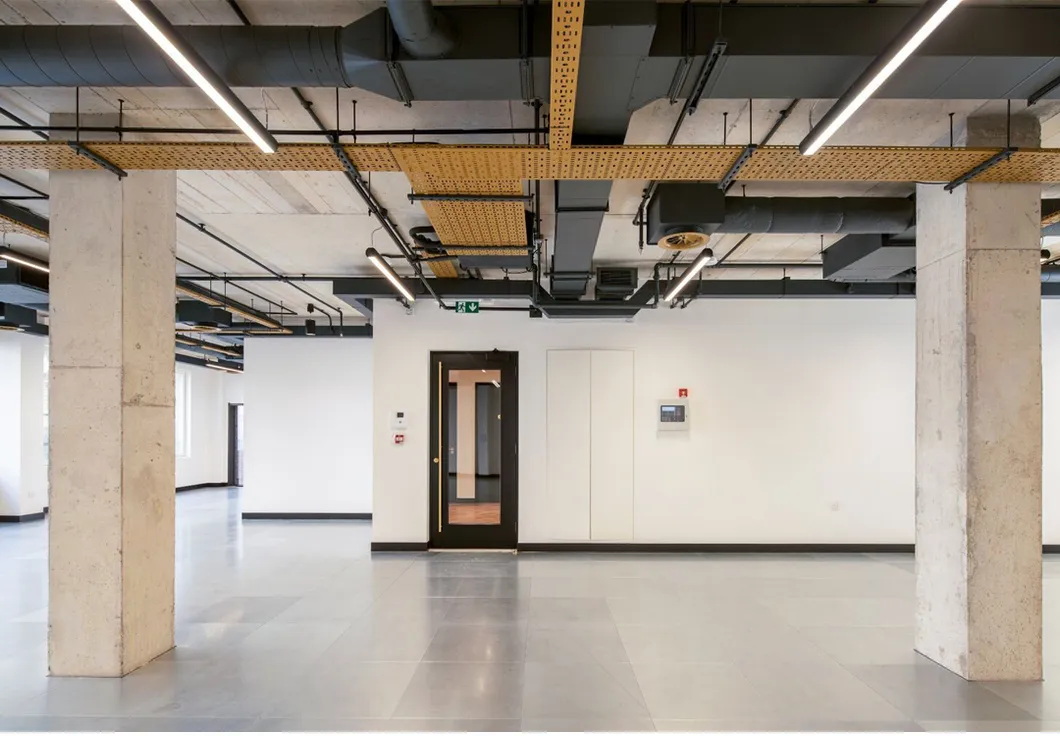

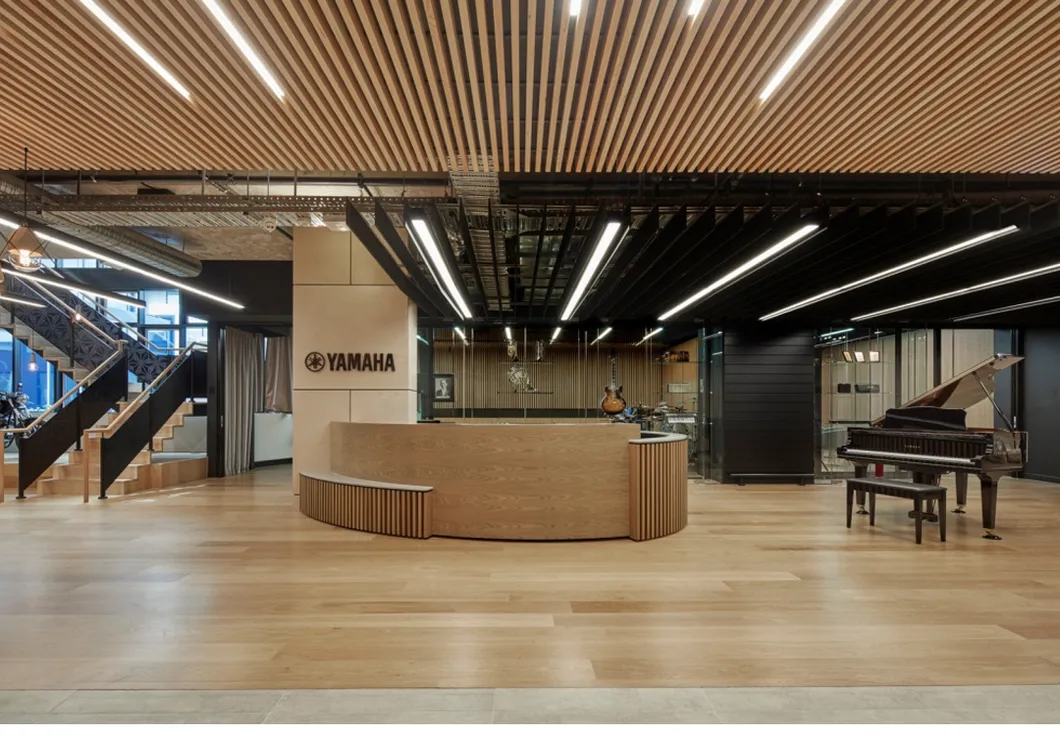

Application
- Indoor and outdoor use.
- Warehouse, workshop, farm, courtyard, corridor, swimming pool.
FAQ
Q1 Can I have a sample order for led light?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2 What about the lead time?
Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3 Do you have any MOQ limit for led light order?
Low MOQ, 1pc for sample checking is available.
Q4 How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5 How to proceed an order for led light?
Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q6 Do you offer guarantee for the products?
Yes, we offer 2-5 years warranty to our products.
