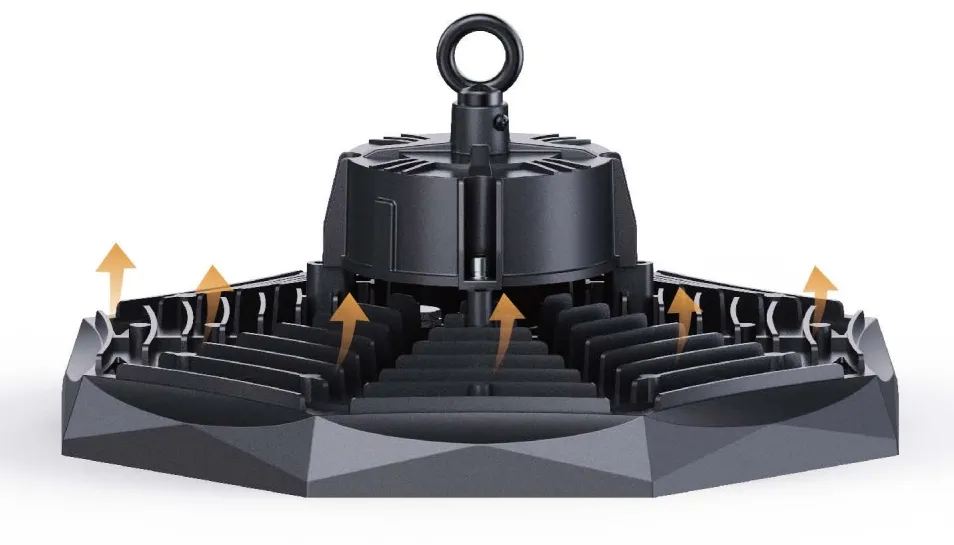

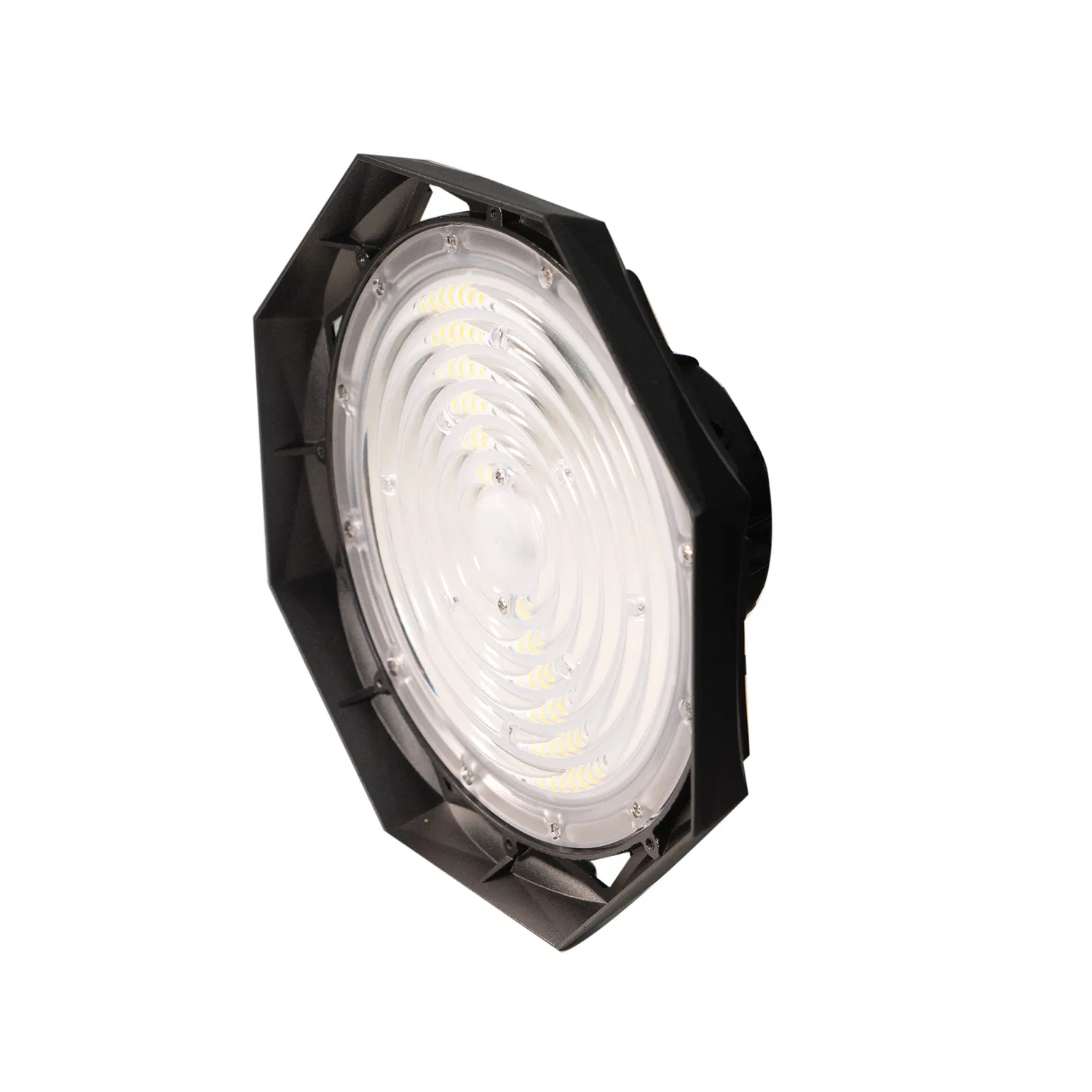

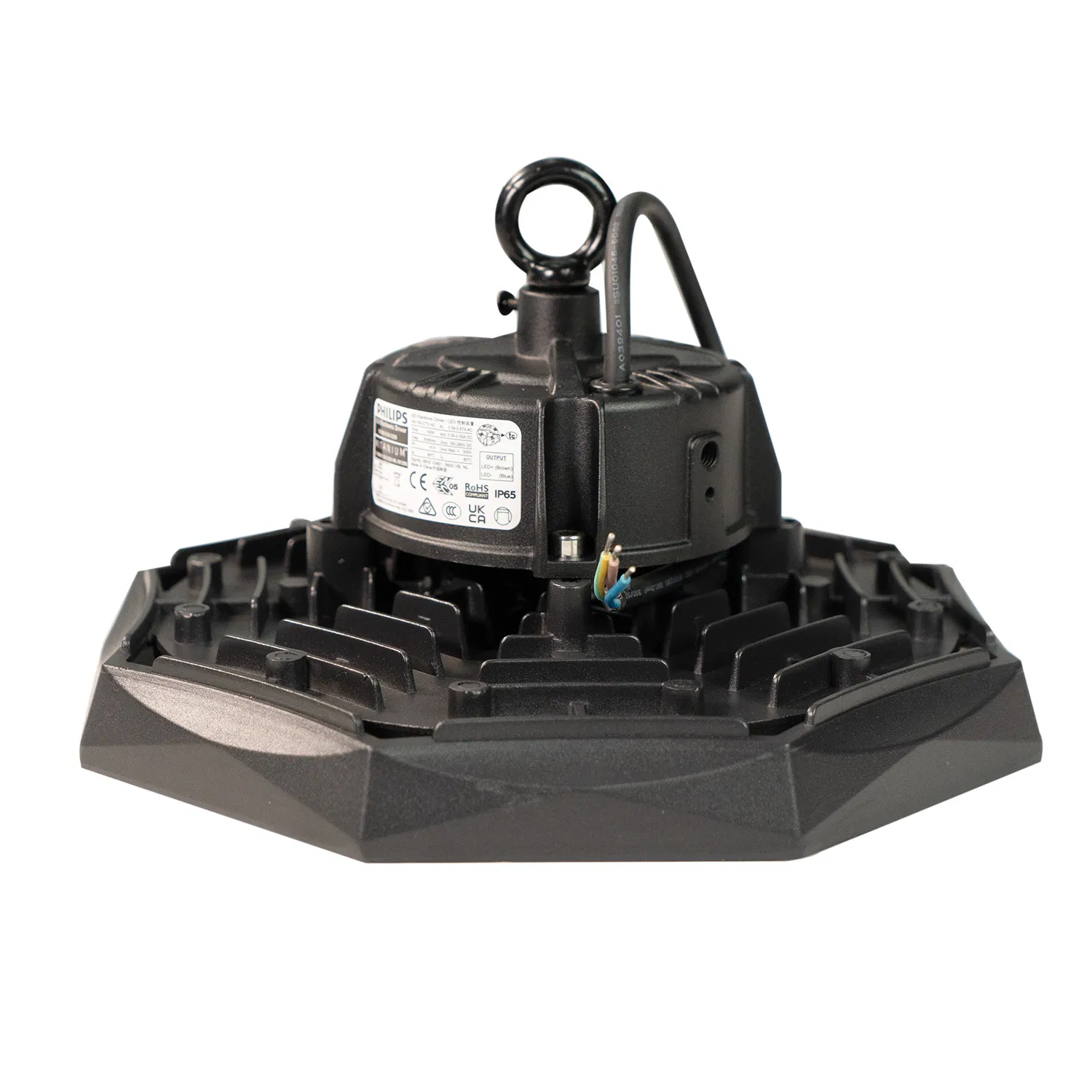

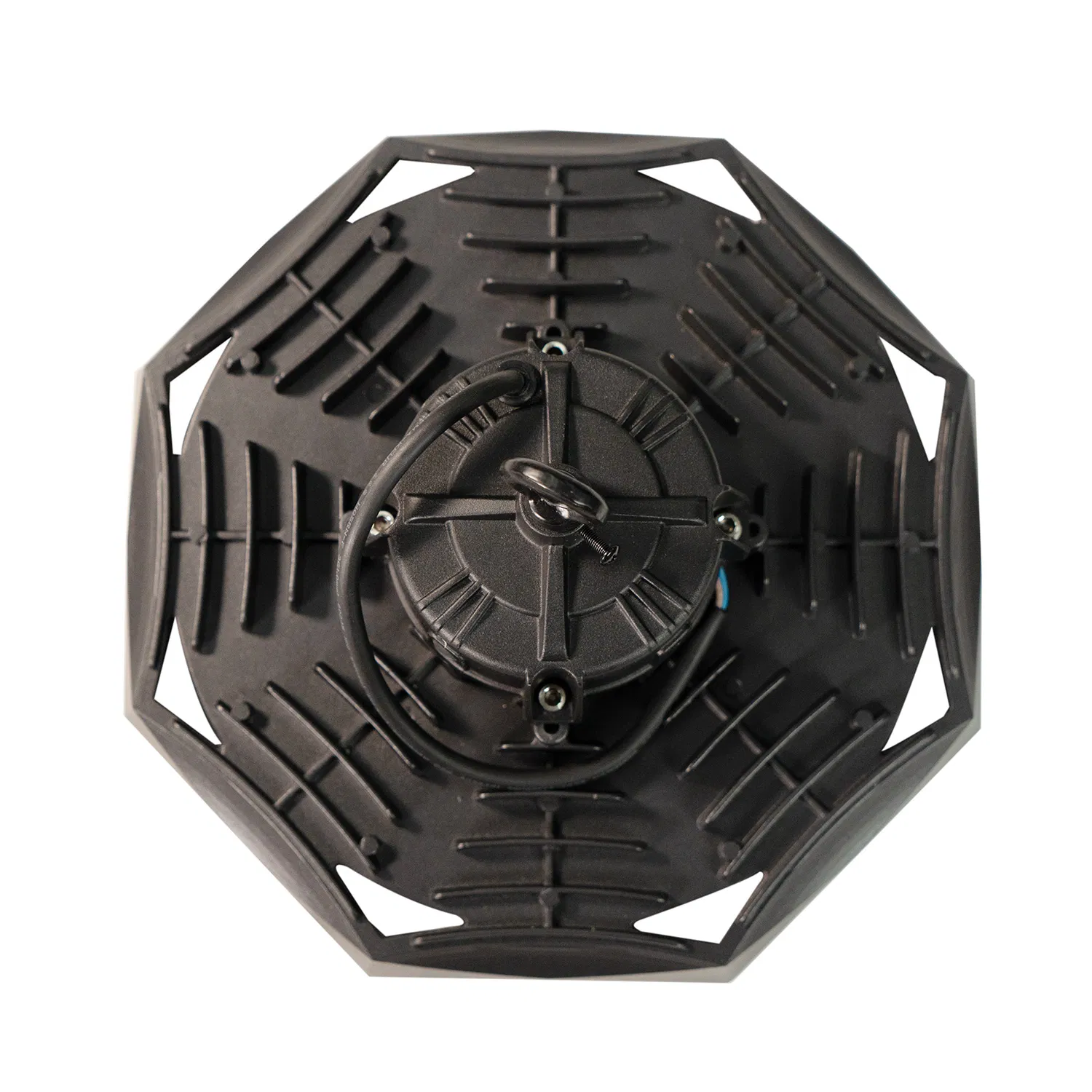

The hollow heat dissipation structure design can effectively increase the heat dissipation area, optimize the air duct, realize three-dimensional efficient heat dissipation, reduce light attenuation, and extend the life of the light source, effectively reducing the later use and maintenance costs.
| Model | JY-LZM100 | JY-LZM150 | JY-LZM200 |
|---|---|---|---|
| Power | 100W | 150W | 200W |
| Nominal voltage | AC200-240V, 50/60Hz | ||
| Driver | Select as needed | ||
| LED Chip LED | SMD2835 | SMD3030 | ||
| CRI | CRI70 (CRI80 optional) | ||
| CCT | CW6500K / NW4000K | ||
| Insulation level | Class 1 | ||
| Luminous Efficiency | 160Lm/W | ||
| Anti surge protection | 4K | ||

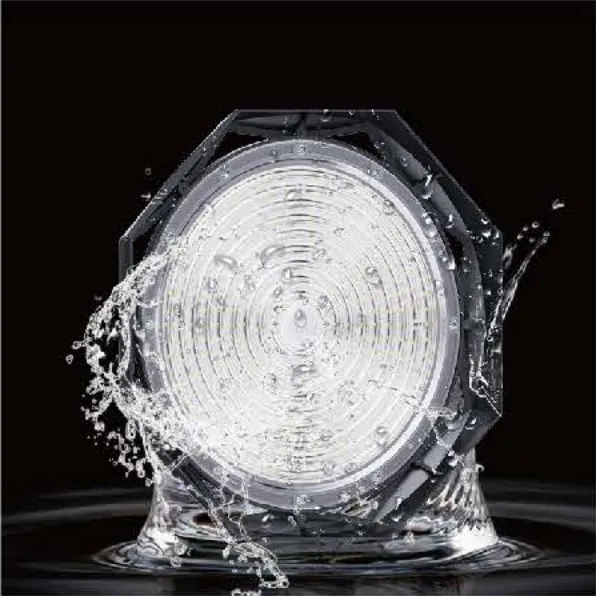

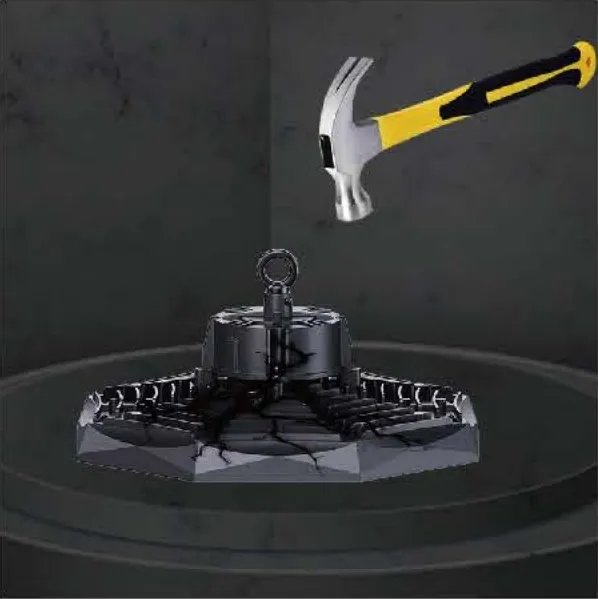

| IP / IK | IP66 / IK08 | ||
| Surge Protection | / | ||
| Working Environment | -40ºC ~ 50ºC, 20% ~ 90%RH | ||
| Power factor | >0.95 | ||
| Lumen Output | 16000lm | 24000lm | 32000lm |
| Luminaire N.W (1 Set) | 1.85/kg | 2.15/kg | 2.75/kg |
| Packaging size | 620*620*330/mm/8pcs | 700*700*330/mm/4pcs | 780*400*330/mm/4pcs |

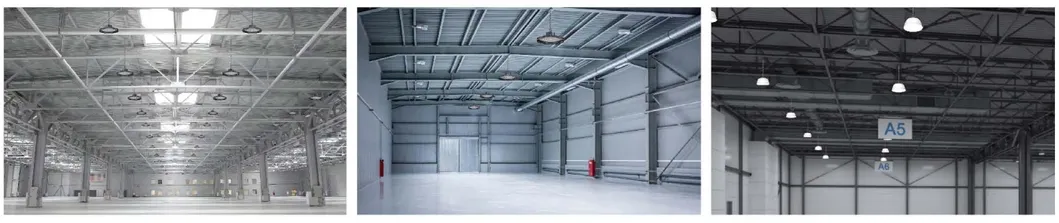

Due to the excellent performance and harmonious lighting of the space, this series is very suitable for complex applications such as commercial space, workshop, warehouse, office, and multi-purpose environment.
Our main products include LED street lamps, smart LED street lamps, intelligent dimming LED tunnel lamps, LED high bay lights, LED floodlights, LED high mast lights, solar LED street lamps, portable power banks and other industrial products.

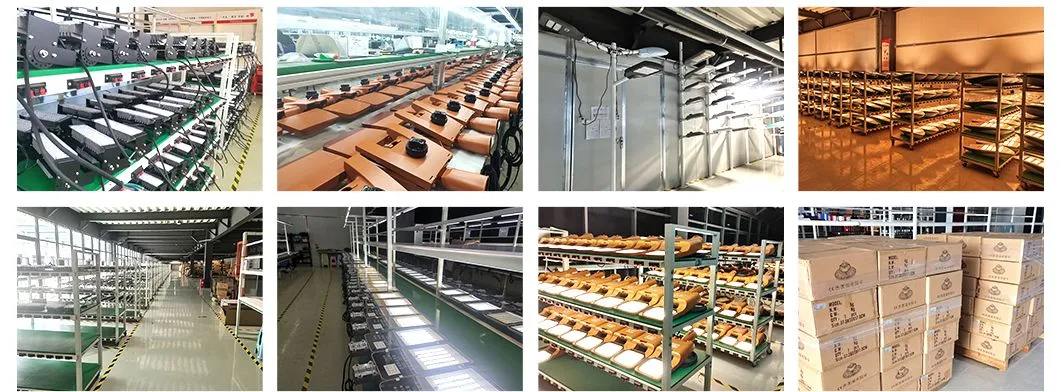

Established in 2018, having a research and development center, operation center, and production center for light networking, with a professional team to protect customers. The current production base covers an area of about 60 acres, with a lighting production workshop of about 15000 square meters, 15 various lighting production lines, and an annual output of up to 500000 sets of LED lighting fixtures. We have a strong R&D and innovation team of over 10 people, as well as an efficient production staff of over 100 people.

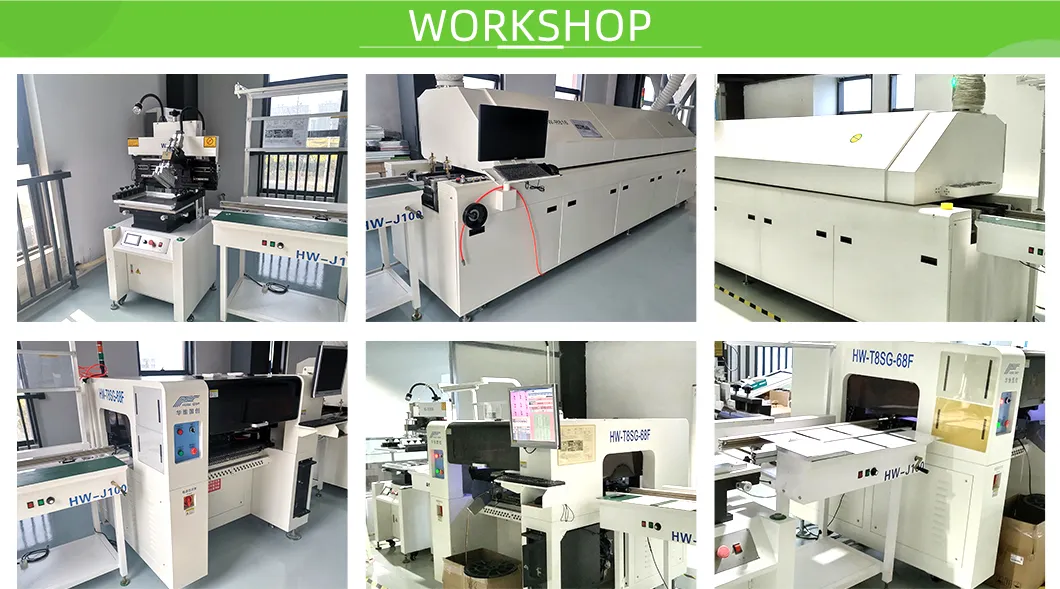

Since its establishment, we have continuously attracted professional lighting talents and fully equipped with advanced production and testing equipment. To ensure every detail meets or exceeds customers' needs, we strive for excellence in various aspects such as research and development of energy storage, renewable resource utilization, unconventional water source utilization, carbon fiber regeneration, carbon emission reduction or conversion, carbon capture and storage technologies. We also have achieved a great success in processing and promoting environmentally friendly materials, consulting services of artificial intelligence public service platforms, software development based on artificial intelligence, network and information security software development, manufacturing of high-performance fibers and composite materials, optimization machinery to protect the environment.

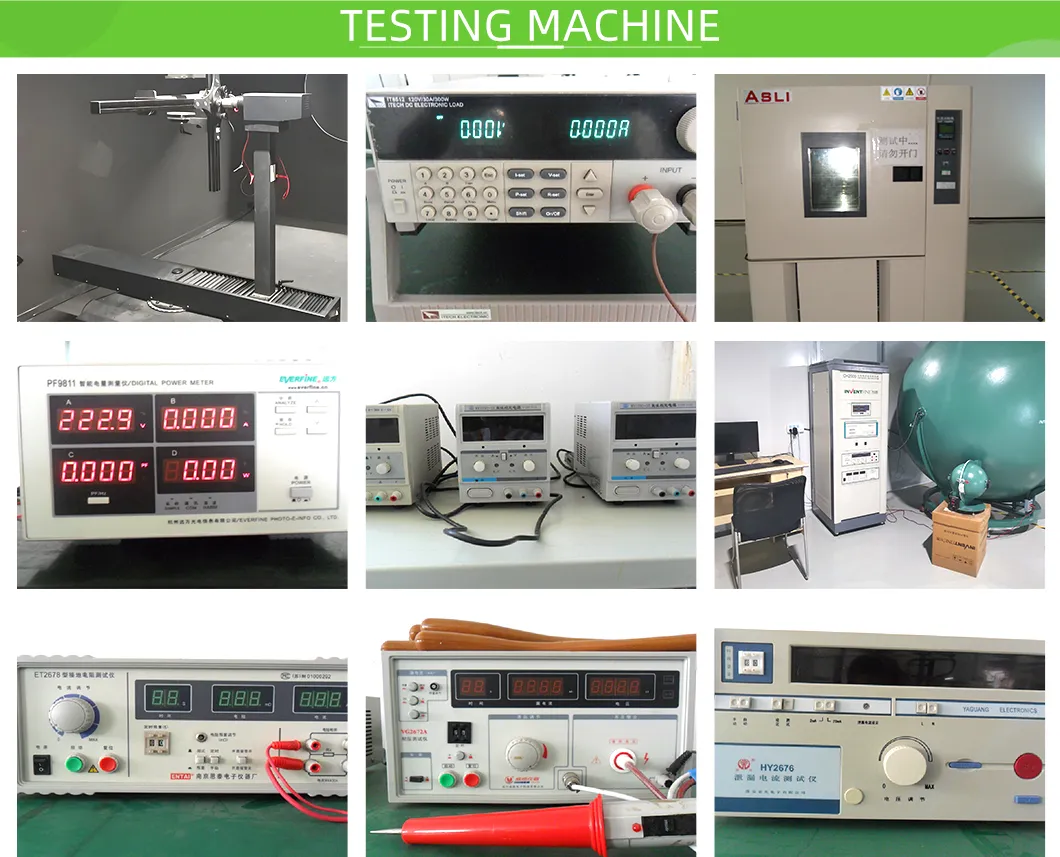

Charge and discharge testing, insulation testing, aging testing, sampling testing, structural testing, etc.
We fully adhere to the ISO quality management system, owning craftsmanship of "A group of People doing A Field well in A Lifetime", creating high-quality and cost-effective products and providing comprehensive guarantees and services. Our products have passed global certifications such as CE, CCC, and ROHS, and support customized design and fast delivery.
By relying on our own factories and intelligent production lines, we ensure high efficiency while providing 1-5 year warranty and multilingual technical support according to different product types. We have completed over 100 engineering projects for clients in Europe, Africa, North America, and other regions.
