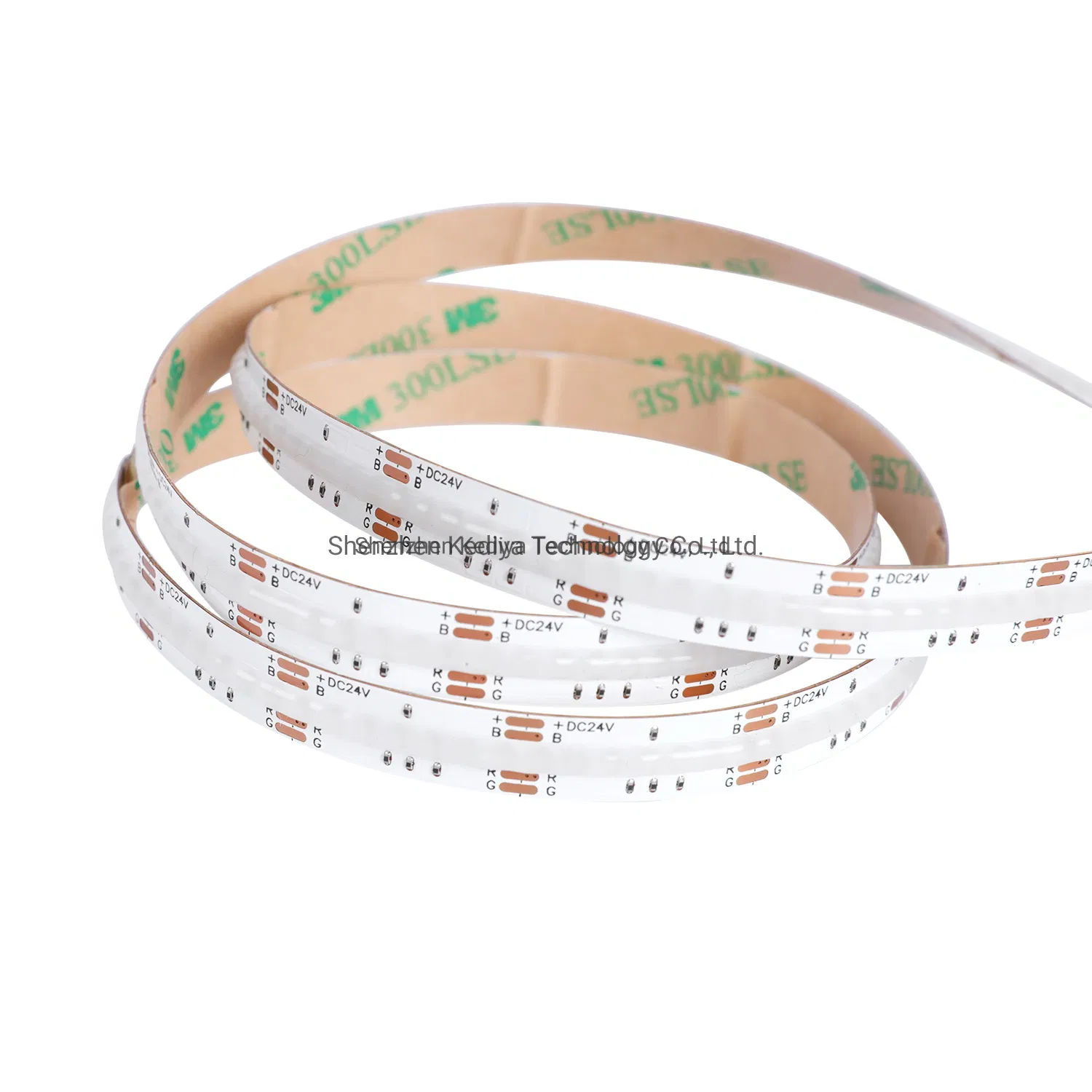

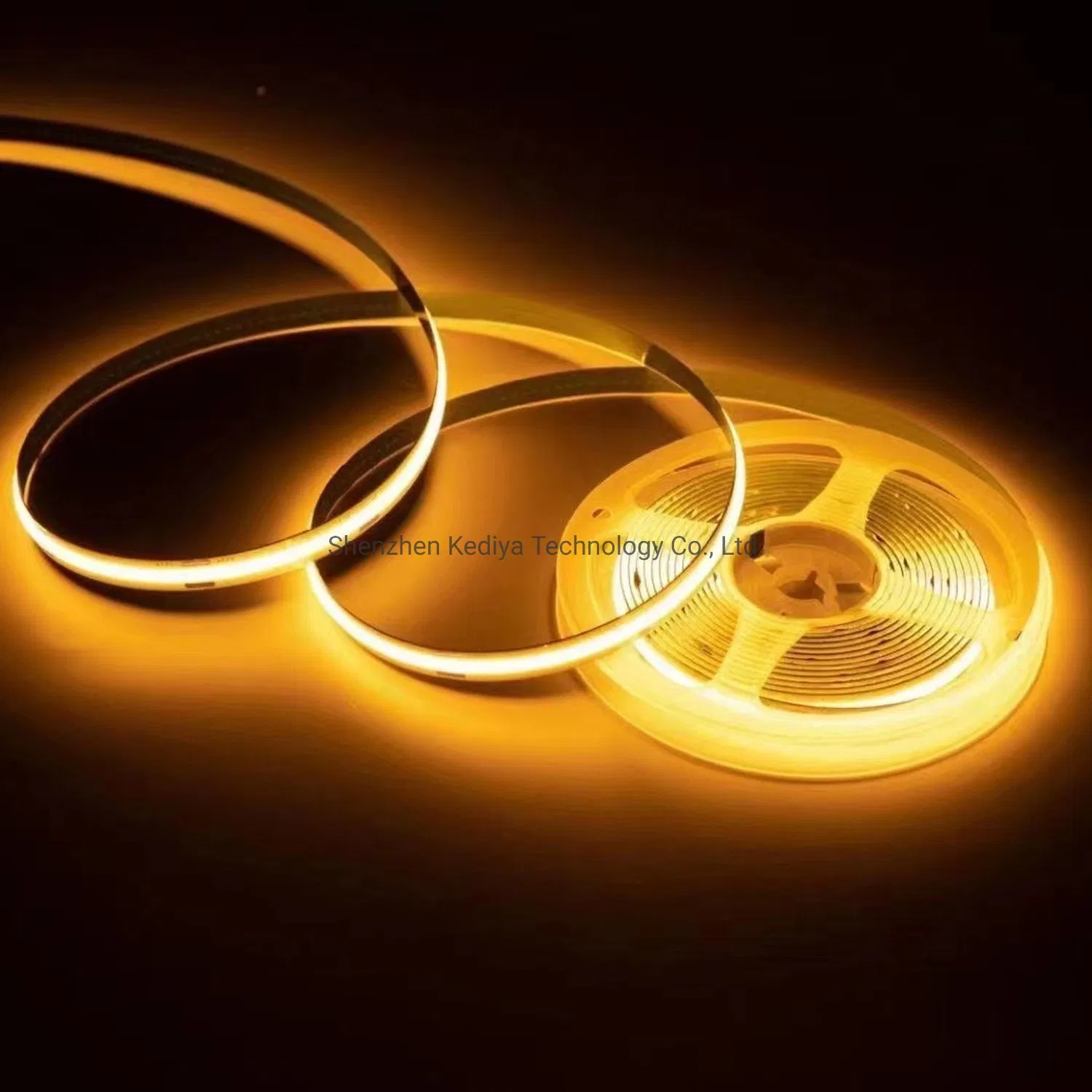

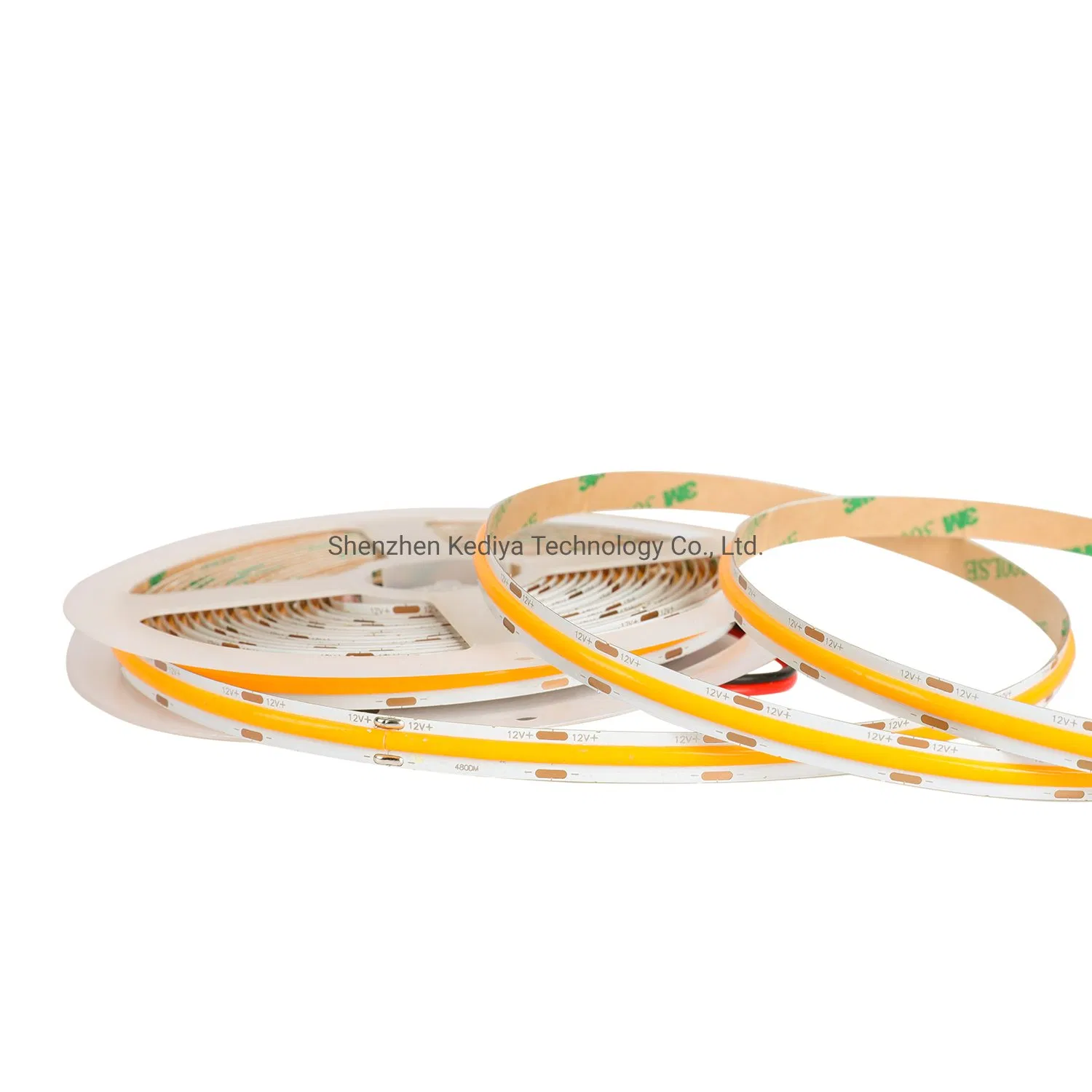

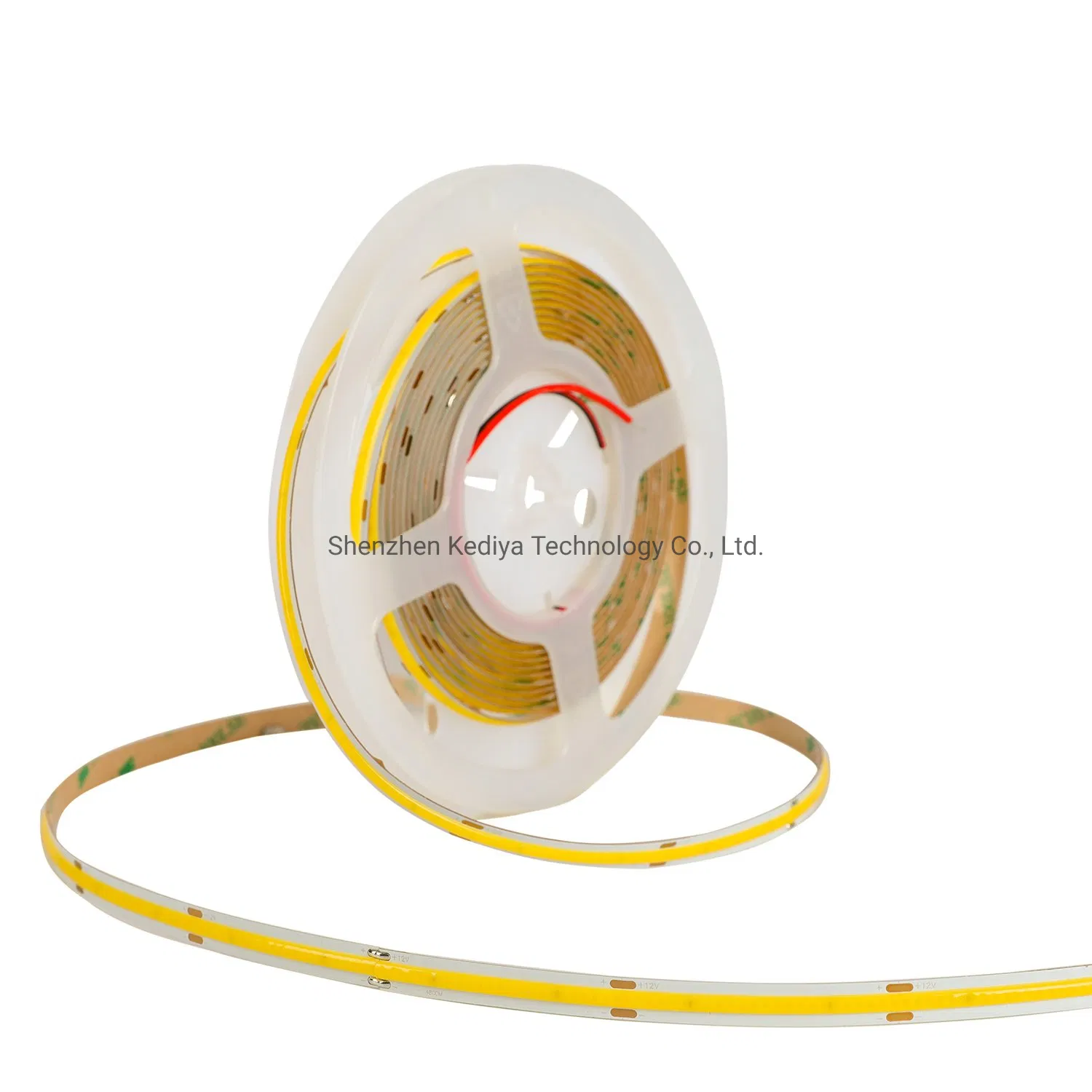

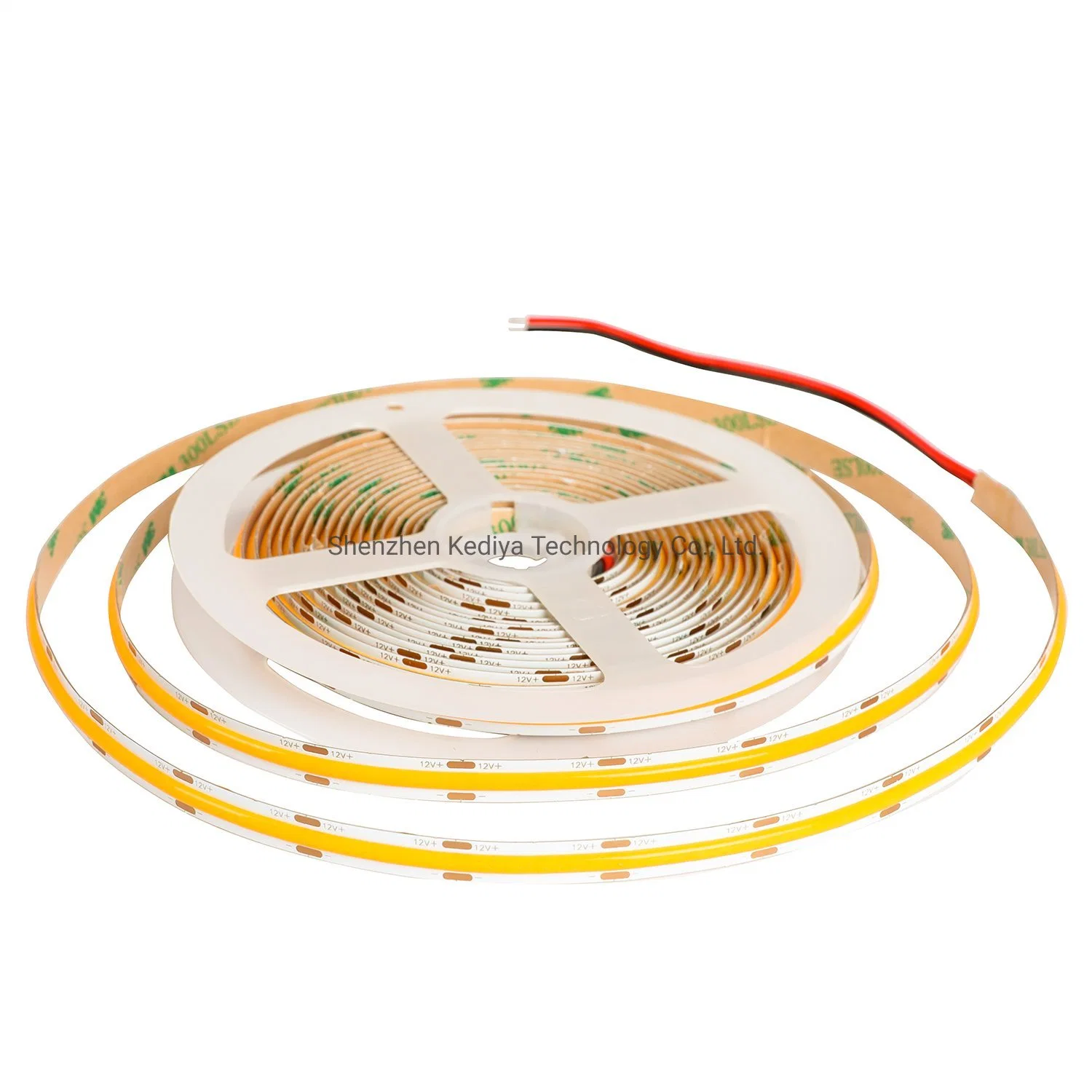

Christmas decoration CRI90 COB Dotless Line Linear LED Tape Light IP20 Waterproof 12V 24V 320 LEDs Flexible Smart Music WiFi RGB Flexible COB LED Strip light

Product Description

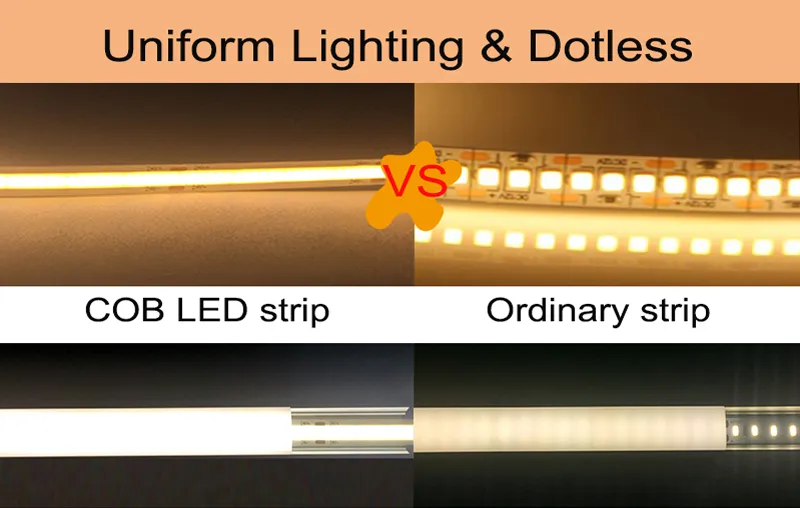

• Good solution for linear light. It perfect achieve the Dot-Free lighting effect even if without any profile or PC cover.
• Continuous and uniform linear illumination, with soft and elegant light, no glare.
• Adopt Flip-Chip technology, no dead light risk.
• Single point's current is small, which provides good heat dispersion, long life span and low luminous decay.

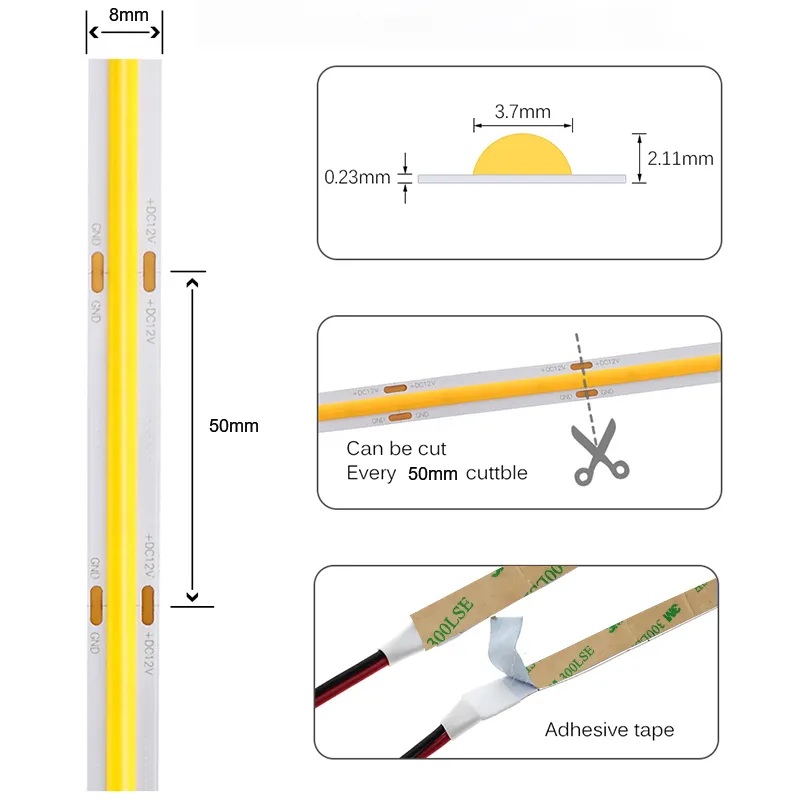

• More flexible and bendable than the traditional led strip, it has a bending radius of only 5mm, so it can be any shape you want.
• Suitable for furniture, KBB market or any corner application.
• It's your new best choice for Lighting Market.

Product Parameters

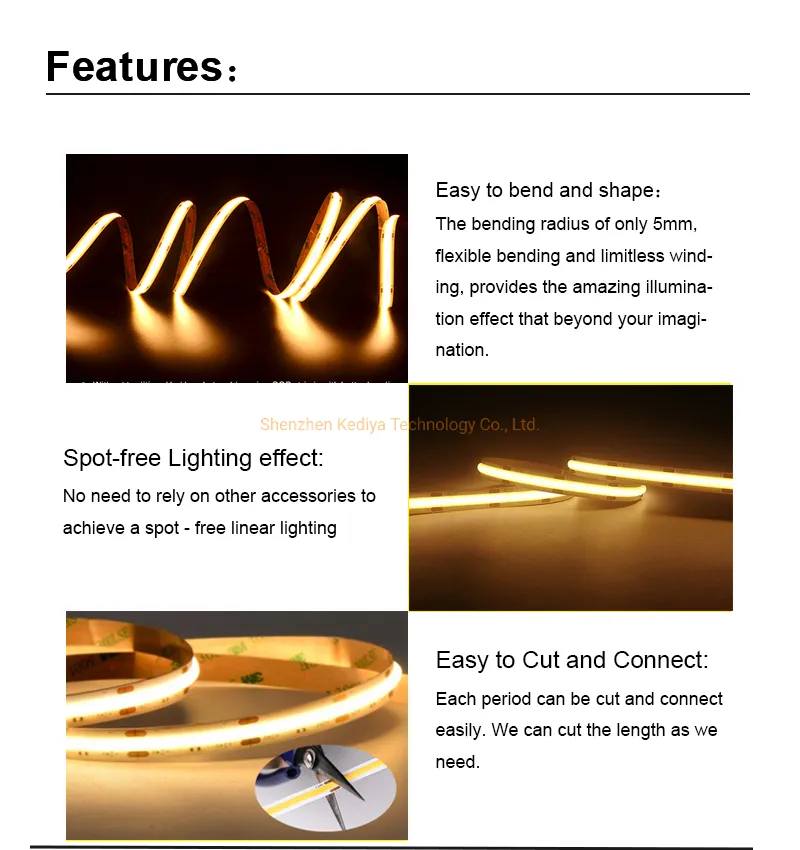

Product Feature

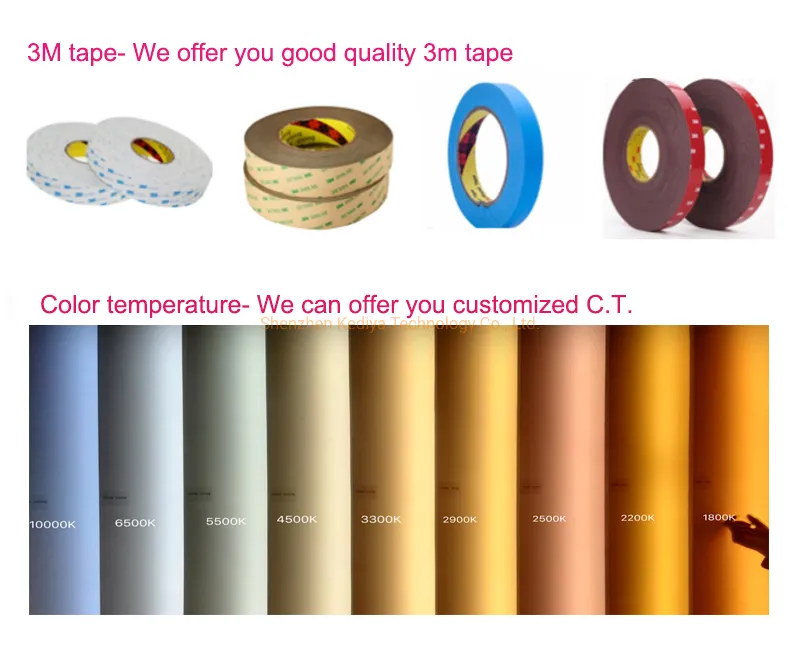

Detailed Photos

Certifications

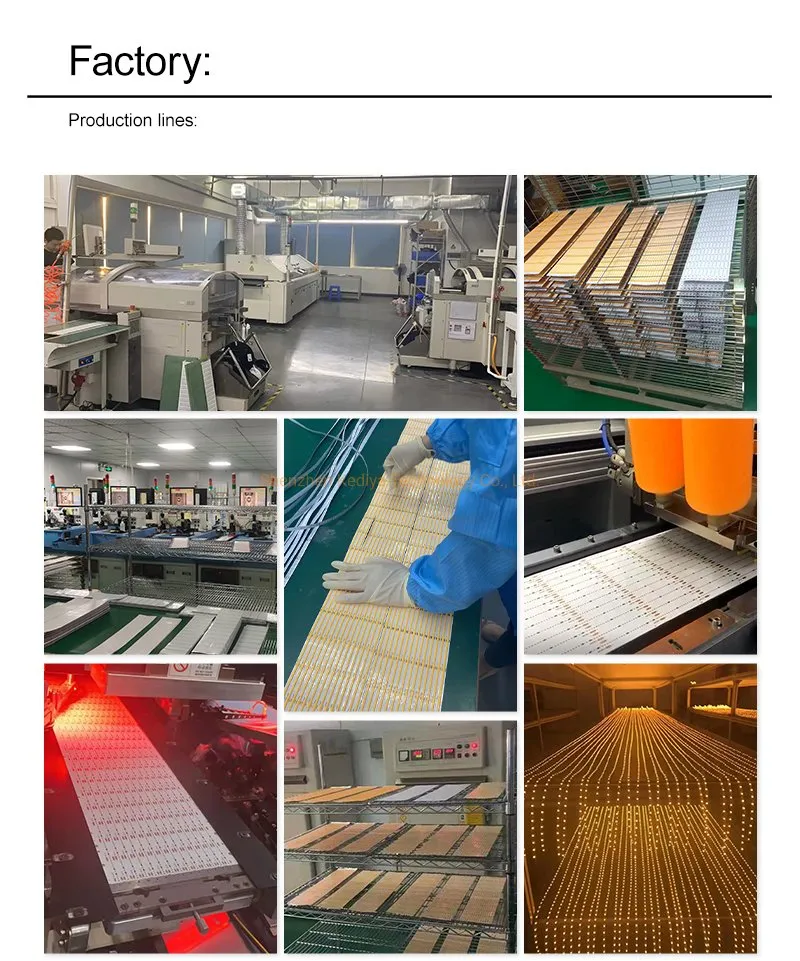

Factory & Production

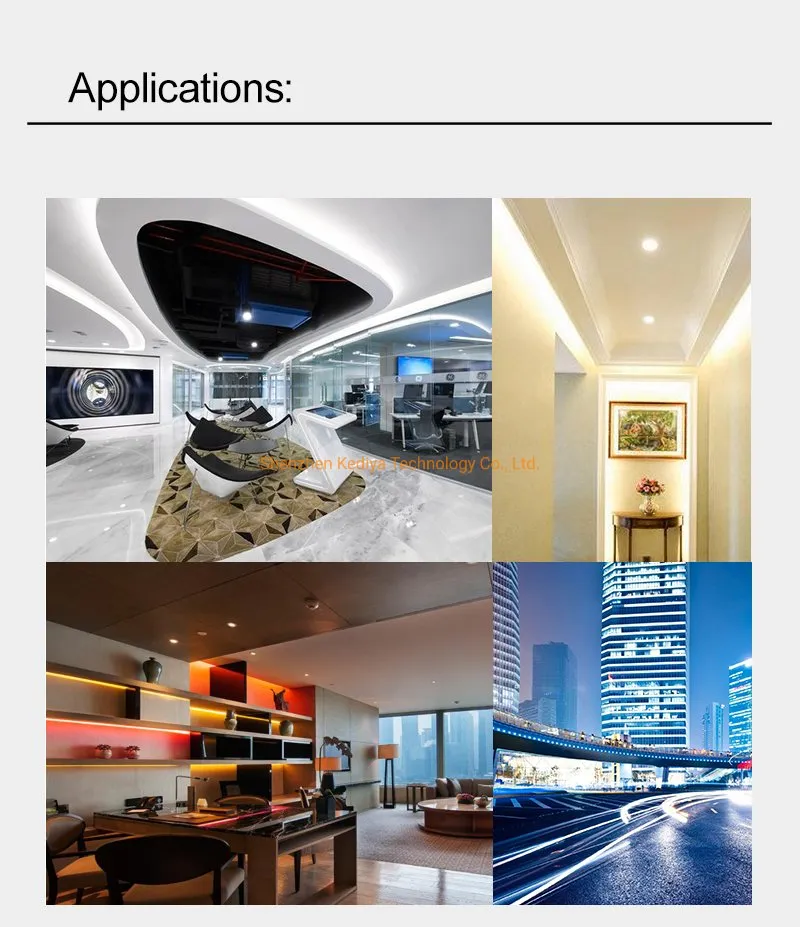

Applications

• Architectural decorative lighting
• Archway, canopy and bridge edge lighting
• Amusement park, theater and aircraft cabin mood lighting
• Emergency hallway lighting
• Auditorium walkway lighting
• Stairway accent lighting
• Concealed lighting
• Backlighting for signage letters
• Channel letter lighting
• Emergency exit path lighting
• Cove lighting
• Edge-lit acrylic panel lighting

Reliability Test Items and Conditions

Installation Instructions

• Please choose correct power supply for led strips. The total power of the led strip is about 80% of the power supply, and it cannot be fully loaded to ensure that the power supply works at the correct and stable voltage.
• We suggest 5 meters/roll for the led strip. If it is over 5 meters length, the brightness of LED will vary greatly. If the customer can accept the case, length can be made over 5 meters/roll.
• Adhesive tape on the back side of the strip, with its superior adhesive and weather resistance, can be connected to any transparent glass, metal and plastic surface. But on some certain surfaces, such as cloth, wood, will affect its function and durability. Please test the adhesion of the led strip before installation.
• Please pay special attention to the minimum bending diameter of the led strip is 60mm, so as to avoid direct or indirect damage to FPC and components on FPC, which may lead to damages of the strip.
• In order to ensure waterproof and anti-corrosive function, after the power line is screwed into the connector, it is recommended to inject the connector with a single component of silica gel (or neutral glass glue, or waterproof grease) and cover the exposed copper wire of the power line for protection.
• The non-waterproof led strip shall not be completely exposed for outdoor use. Do not touch or install the strip when it is charged.
• It is recommended to use switch power supply that has passed relevant safety regulations (with short circuit protection, over voltage protection and over current protection).

Installation Requirements

• Pay attention to handling with care.
• Don't install the product in corrosion, flammable and explosive places.
• It is strictly prohibited to use any acidic or alkaline adhesives to fix the product. Neutral adhesives are required.
• In order to avoid the danger of electric shock, please cut off the power supply during process of installation, debugging and moving.
• Ensure correct and reliable connection of all joints.
• The product need anti-corrosion environment, such as, avoiding damp, water drop or other adverse elements.
• The LED strip and accessories can't be squeezed or folded.
• PCB conductive parts can't be damaged when installation.
• Installation must conform to electrical safety standard. The LED strip can only be installed by Professionals.
• Ensure power supply transform operating load with transformer.
• When install on metal or conductor surface, insulation protection need to be provided to the contact area.

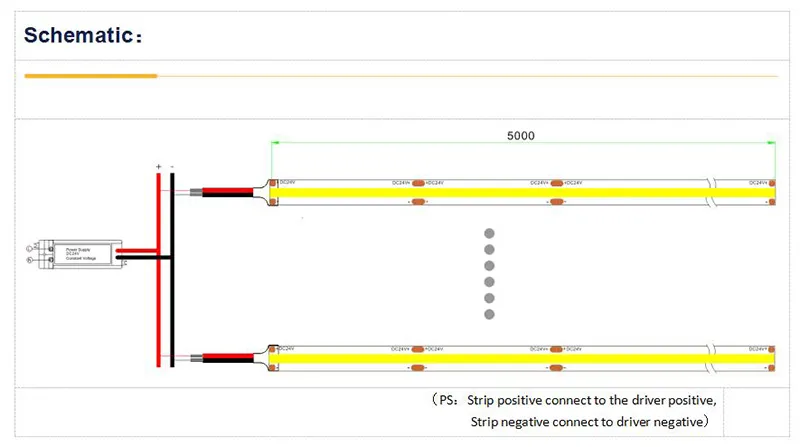

• Observe positive and negative polarity, ensure correct connection to avoid damaging LED strip.
• When installation, please prevent static electricity.

Packaging & Shipping

• Packaging: 5 meters/roll, Carton box packing, 100 rolls per carton.
• Delivery time: Normally about 3-5 working days if less than 2000m.
• Shipping: By DHL, FedEx, UPS Express, or Air and Sea transportations.
