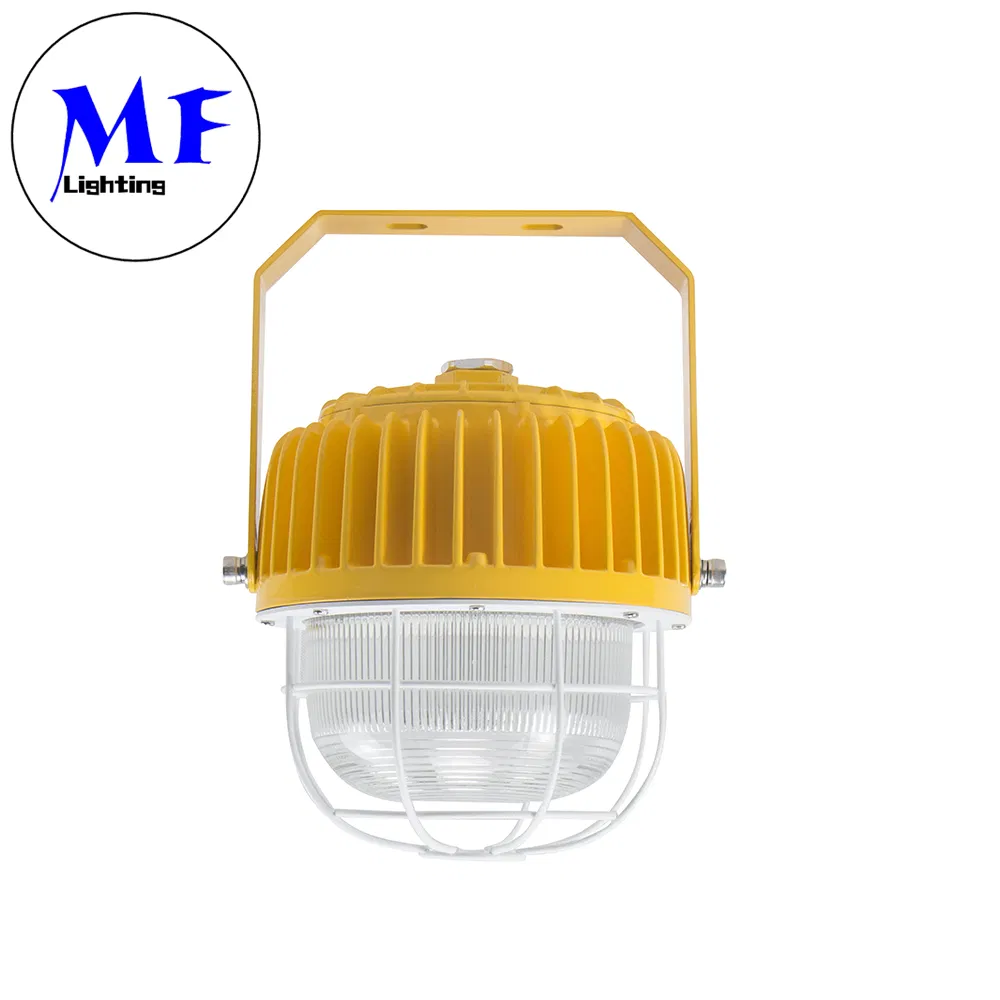

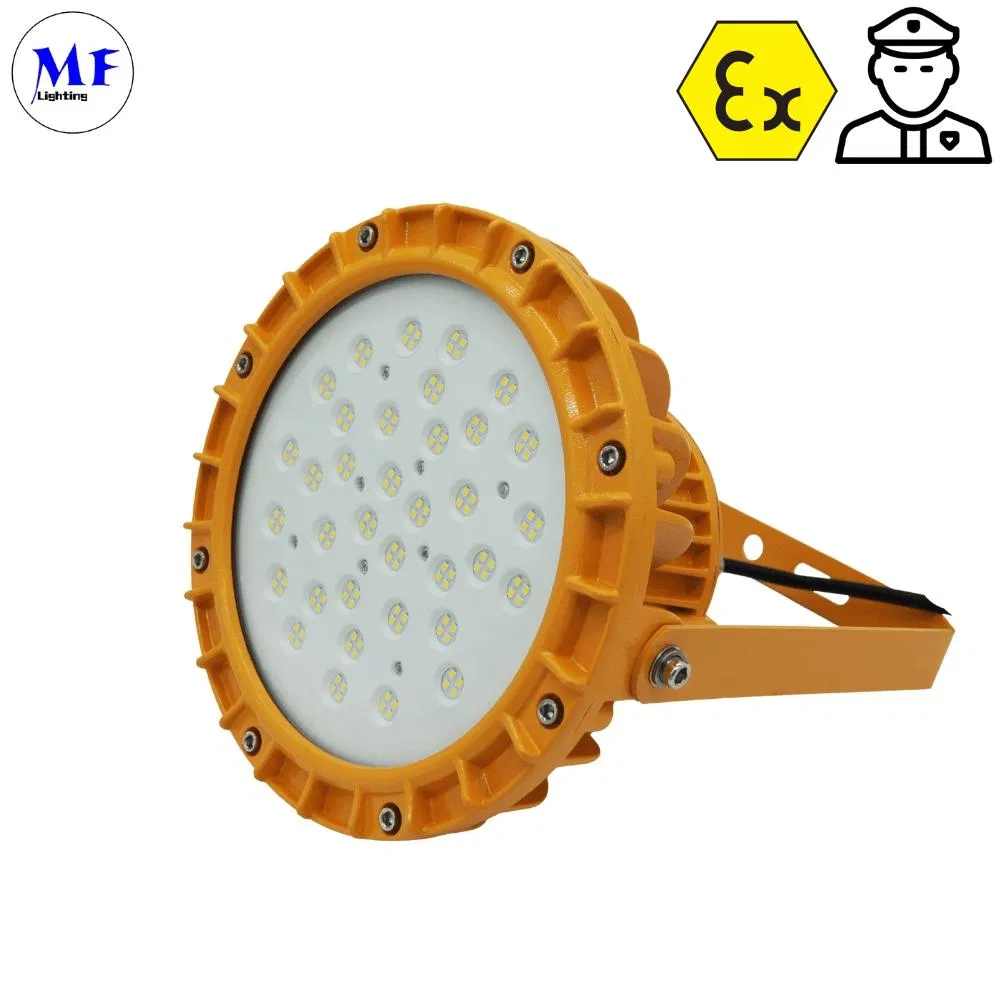

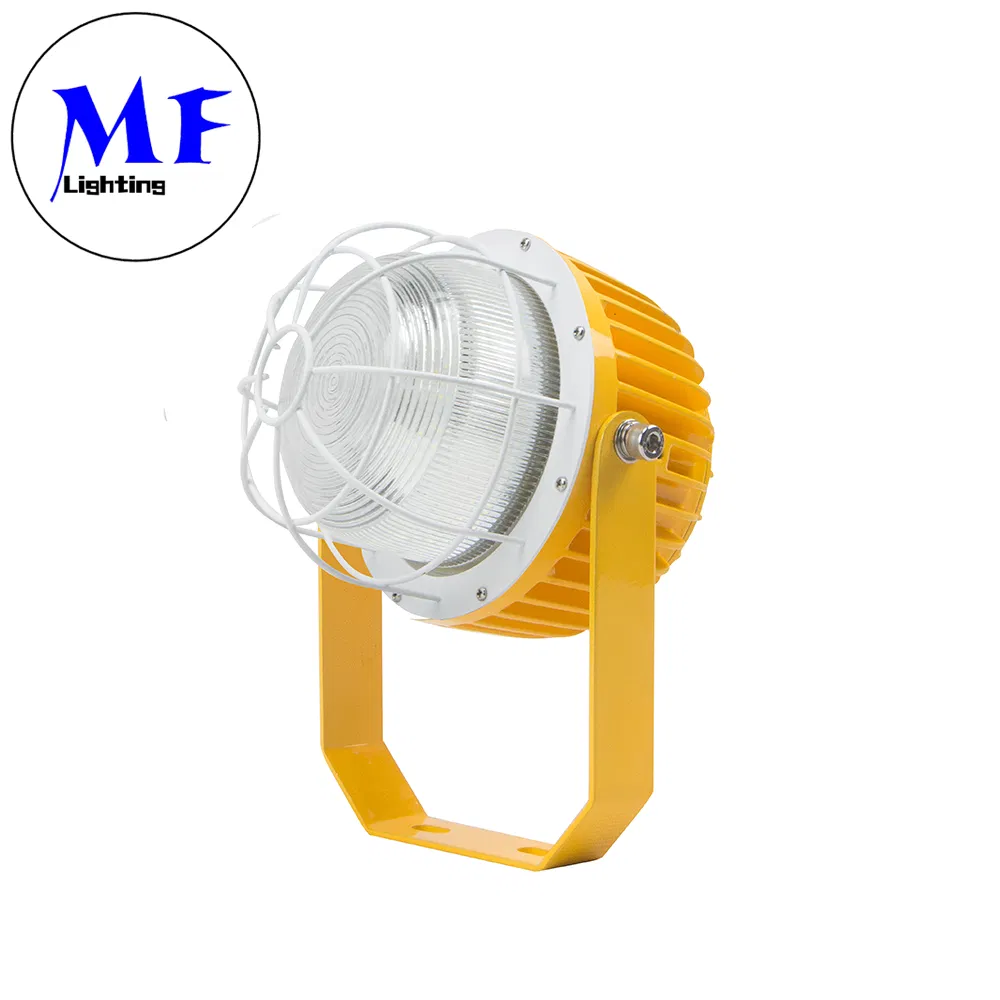

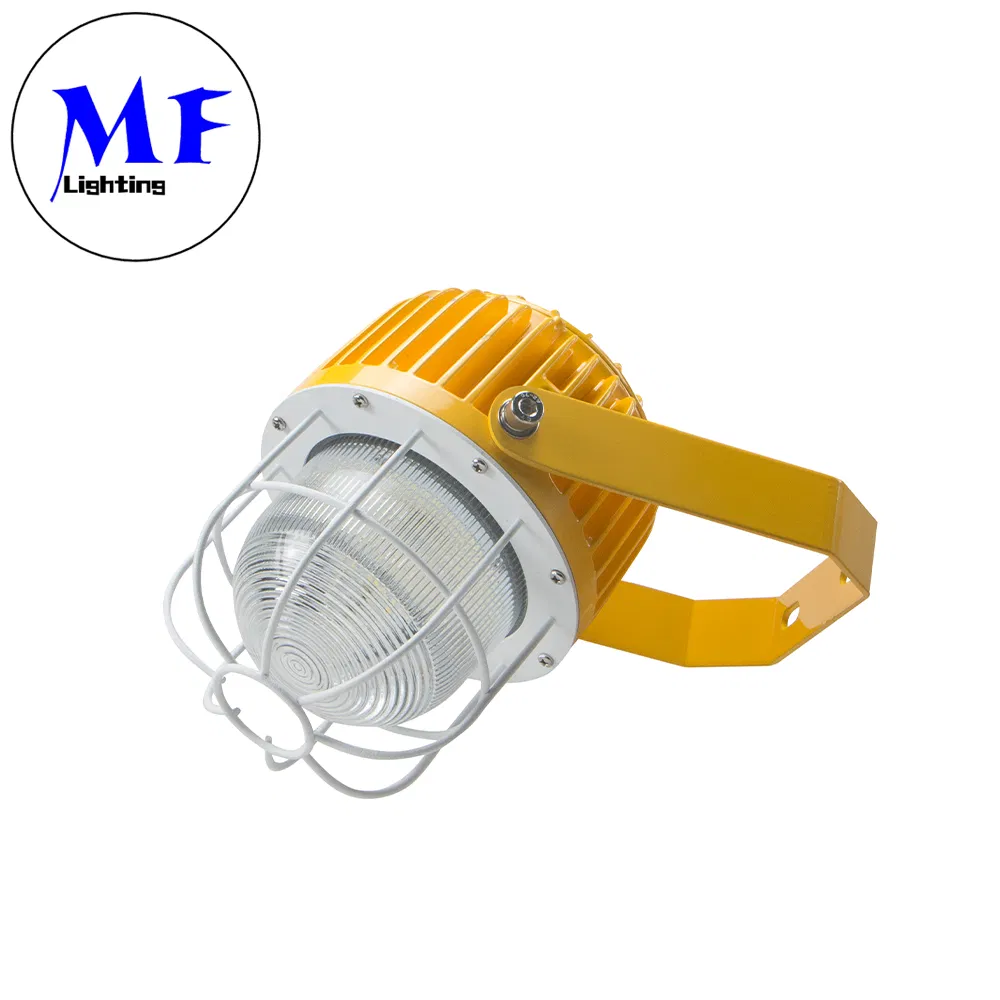

40W 60W 80W 100W 200W ATEX Certificate Oil and Gasoline Harsh Environment Explosive Zone Wall Ceiling Hanging LED Explosion Proof Light Bulb

Still deciding? Get samples of $ !
Request Sample

Product Description

Overview
Model NO. MF-AT150C
Irradiated Area 15-30m²
Input Voltage 100~240V AC
Power 150W
Color Temperature 5000K
Emitting Color White
LED Chips Brand World Class Brand Chip
Certification CE, RoHS, CB, Atex
Warranty 5 Years
Luminous Efficiency 130lm/W
Beam Angle 330°
Installation Method Wall/Pendent/Ceiling
Dimming 1-10V Dali
Lens Mist
Origin China
HS Code 9405429000
Production Capacity 10, 000PCS/Months
Product Description
40W 60W 80W 100W 200W Atex Certificate Oil and Gasoline Harsh Environment Explosive Zone Wall Ceiling Hanging LED Explosion Proof Light
ATEX Certificate LED Explosion Proof Light
Quick Details
  • 150W LED Explosion Proof Light
  • Input: 100~240V ac 50~60Hz
  • Luminous Flux: 19500lm+
  • Beam Angle: 330°
  • Brand Chip: World Class Brand Chip
  • IP: IP66
  • CRI: 70/80Ra
  • Material: Durable PC Material + Inner Aluminium Plate
Parameters
Item Specification Details
Item Model MF-AT150C
Input Voltage 100~240V ac 50~60Hz
Power 150W
Luminous Flux 19500lm+
System Efficacy 130LM/W
Power Efficiency >90%
Power Factor >0.90
SDCM <5
SPD 6KV
THD <20%
Beam Angle 330°
CRI Ra70/Ra80
Powder Coating AkzoNobel
IP Rating IP66
Class Rate Class I
Color Temperature 5000K
Power Supply IEC Certified Gear
Cable 3x0.75mm
Working Temperature -40~60ºC
Storage Temperature -40~80ºC
Junction Temperature <70°C(Ta=30°C)
Lifespan 10 Years at 12 Hours/Day
Dimming Y
Material Durable PC Material + Inner Aluminium Plate
Size Dia.190xH280mm
Warranty Period 5 Years
Descriptions
This light is designed to meet the demands of hazardous environments, with a robust construction made from durable PC material and an inner aluminum plate. It features high-quality brand chips and a reliable LED driver, delivering an impressive luminous flux of 19500lm+ and a wide 330° beam angle. With an IP66 rating, this light can withstand harsh conditions and is built to last. The 80Ra color rendering index ensures a high-quality light output, making it an ideal choice for industrial and hazardous applications. Choose this safe and dependable lighting solution for challenging tasks.
Harsh Environment Hanging LED Explosion Proof Light
Our Advantages
  • Safe and reliable for hazardous environments
  • High-quality components for bright and even light output
  • Robust construction for durability and resistance to damage
  • Accurate color representation with 70/80Ra color rendering index
  • Energy-efficient LED technology
  • Easy to install and maintain
  • Environmentally friendly with no hazardous materials
  • Long lifespan
  • Versatile for a wide range of industrial and hazardous settings.
LED Explosion Proof Light Advantages Summary
Dimensions & Details
Dimensions (60W / 120W)

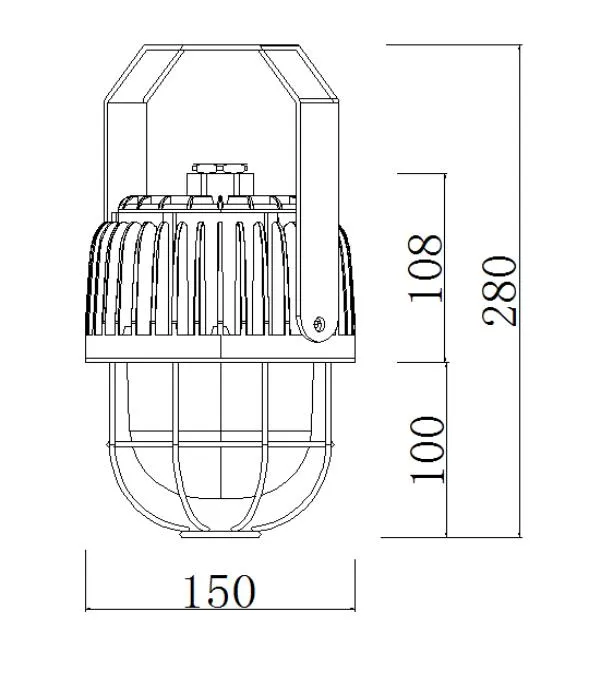

60W Dimensions Schematic
60W Dimension Design

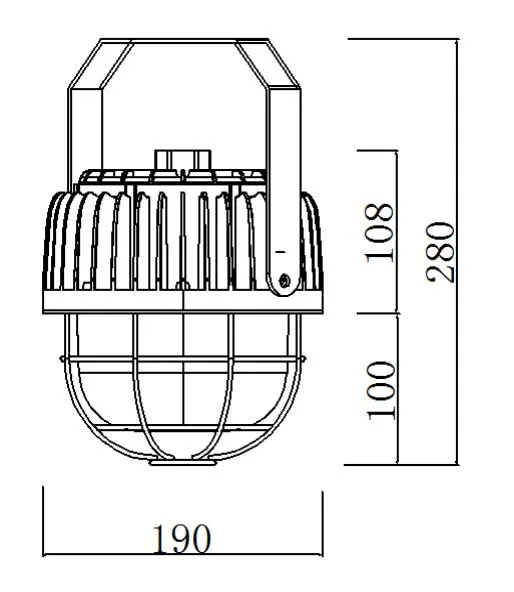

120W Dimensions Schematic
120W Dimension Design
Details

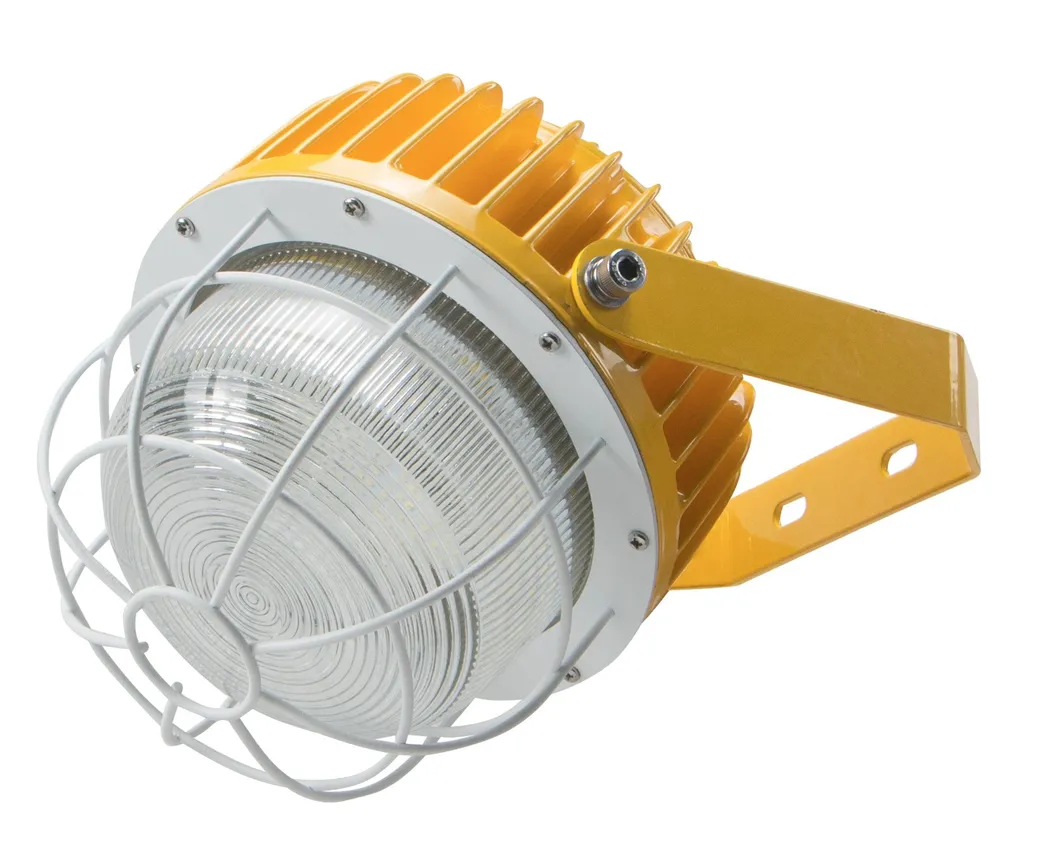

Product Exploded View Section 1

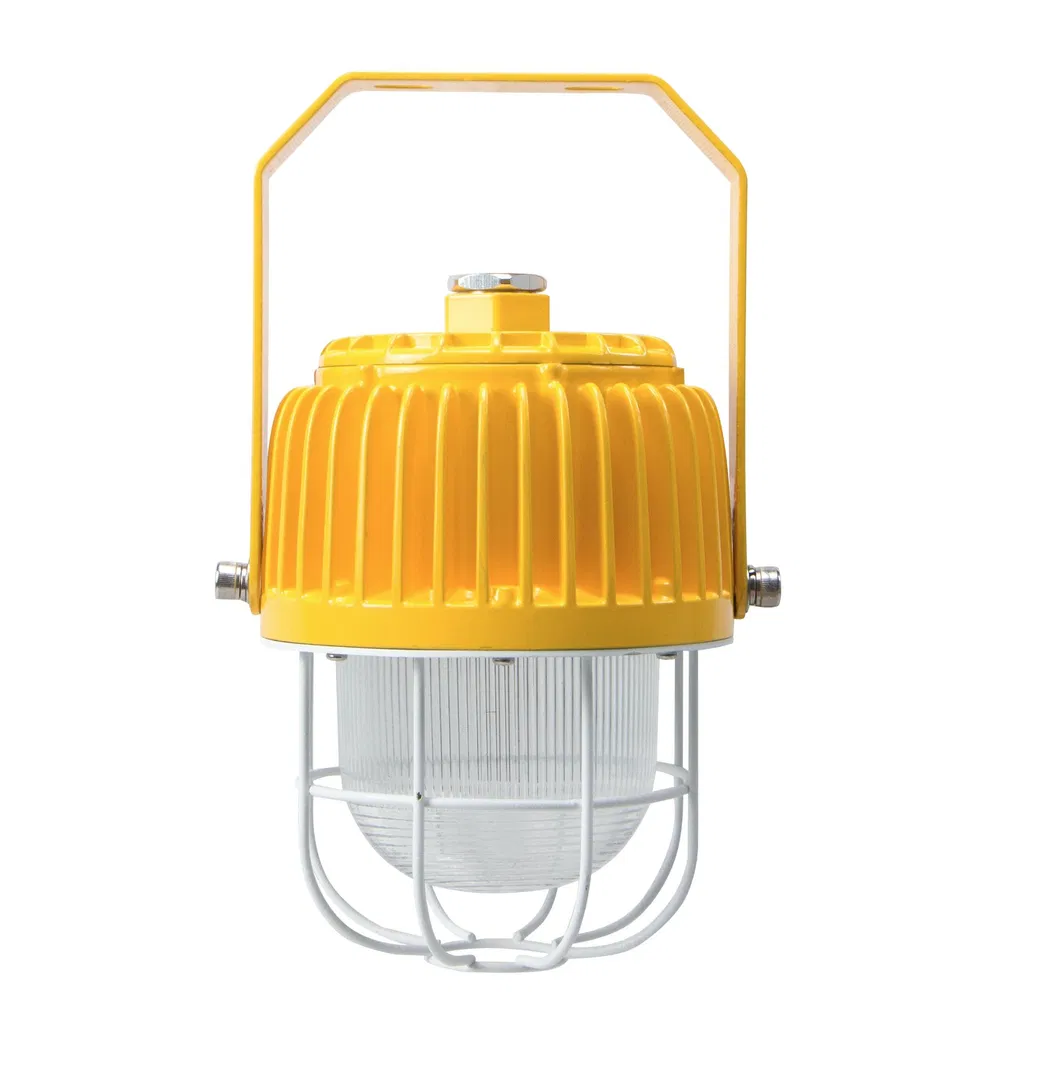

Product Exploded View Section 2

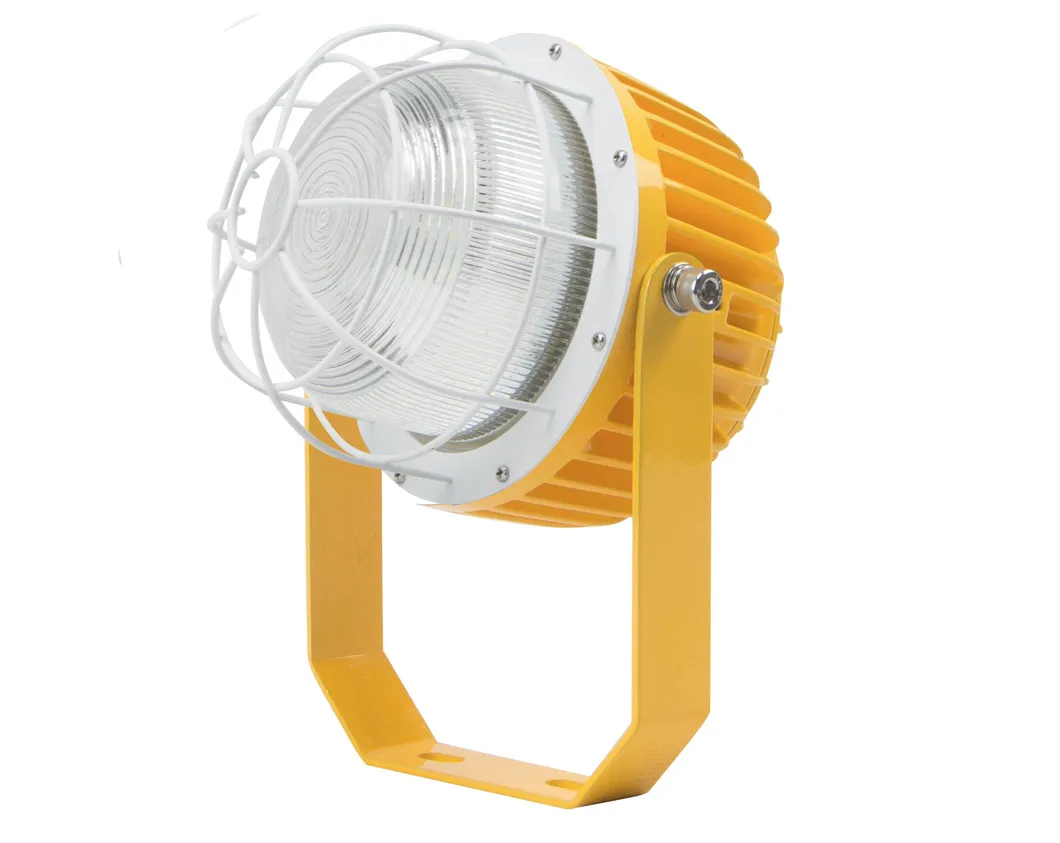

Product Exploded View Section 3
Lighting Parts Layout

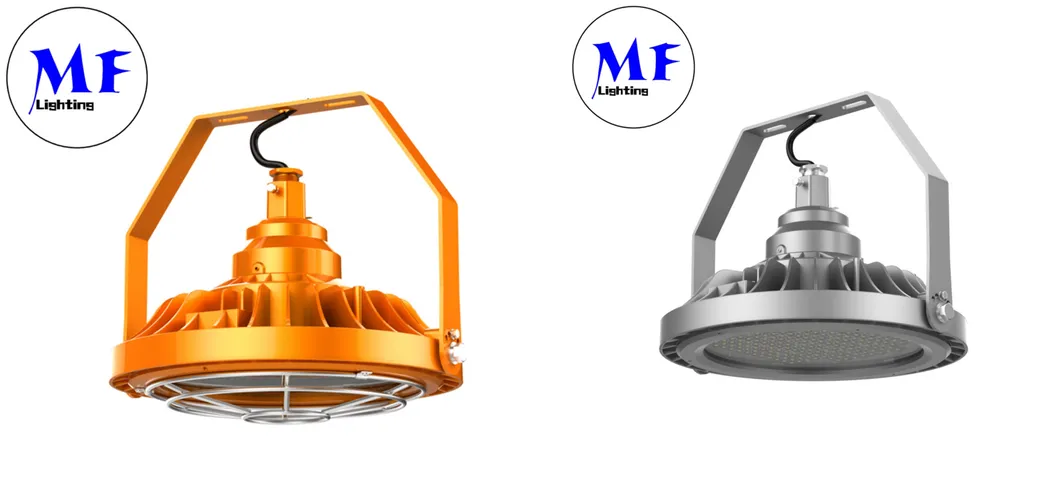

Recommend: MF-EP01-XXW-G1
MF-EP01-XXW-G1 Recommend Models
Alu Reflector Option
Alu Reflector

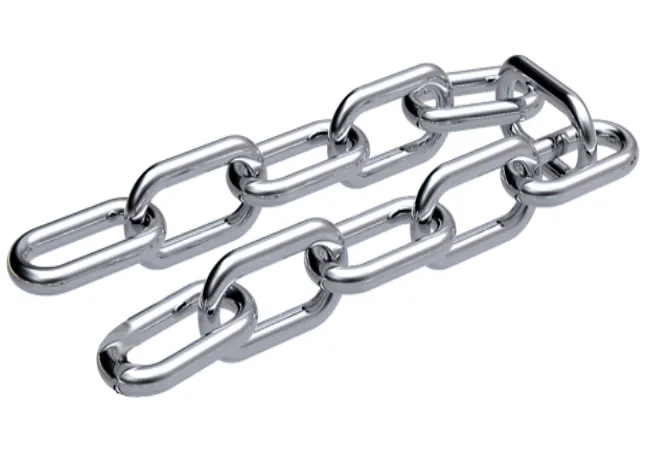

Chain Accessory Option
Chain Accessory
Impact Resistant Cover Option
Impact Resistant Cover
PC Reflector Option
PC Reflector
Safety Rope Accessory Option
Safety Rope Accessory
USA Hook or EU Ceiling Ring Option
USA Hook / EU Ceiling Ring
Model Options

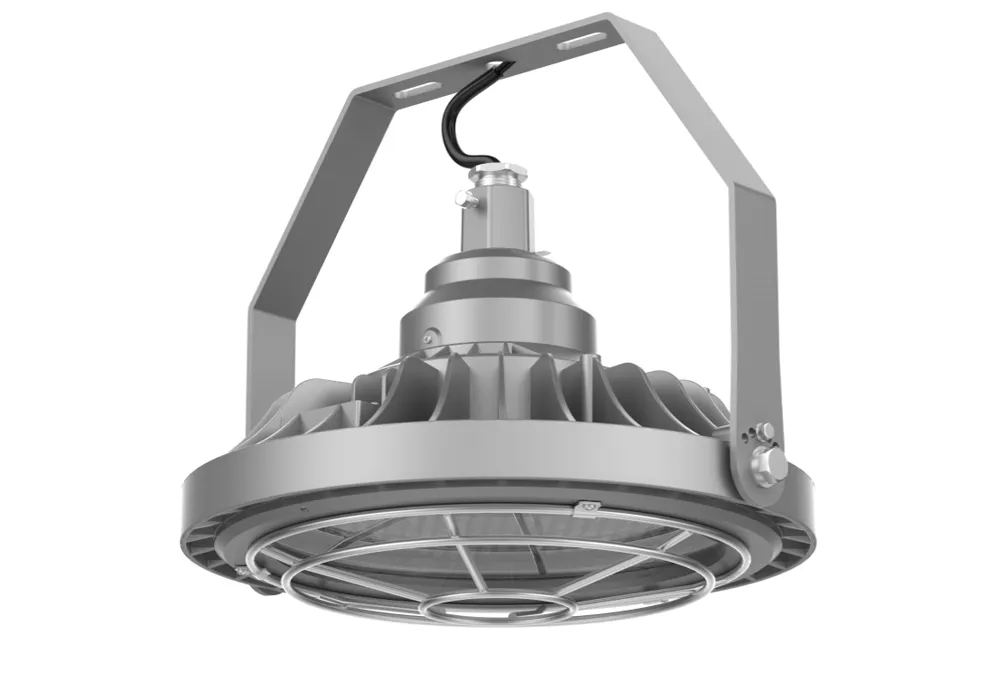

Model Option View A
Model Option View B
Model Option View C

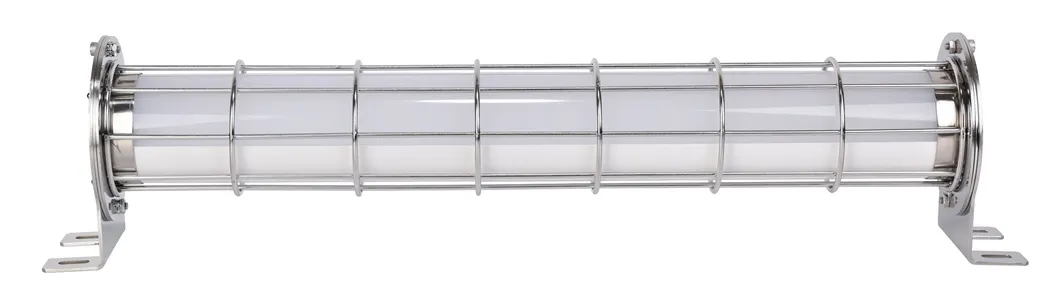

MF-ES01-20W / MF-ES02-40W
MF-ES01-20W and MF-ES02-40W Models
Applications

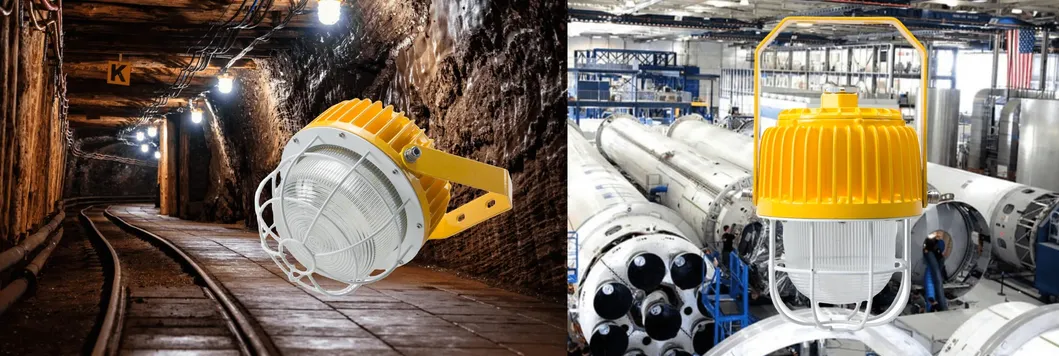

Explosion-proof lights are used in hazardous environments such as chemical plants, oil refineries, and mines to provide safe and reliable lighting without the risk of igniting flammable substances. They are also used in areas with electrical equipment such as power plants and data centers to prevent explosions.

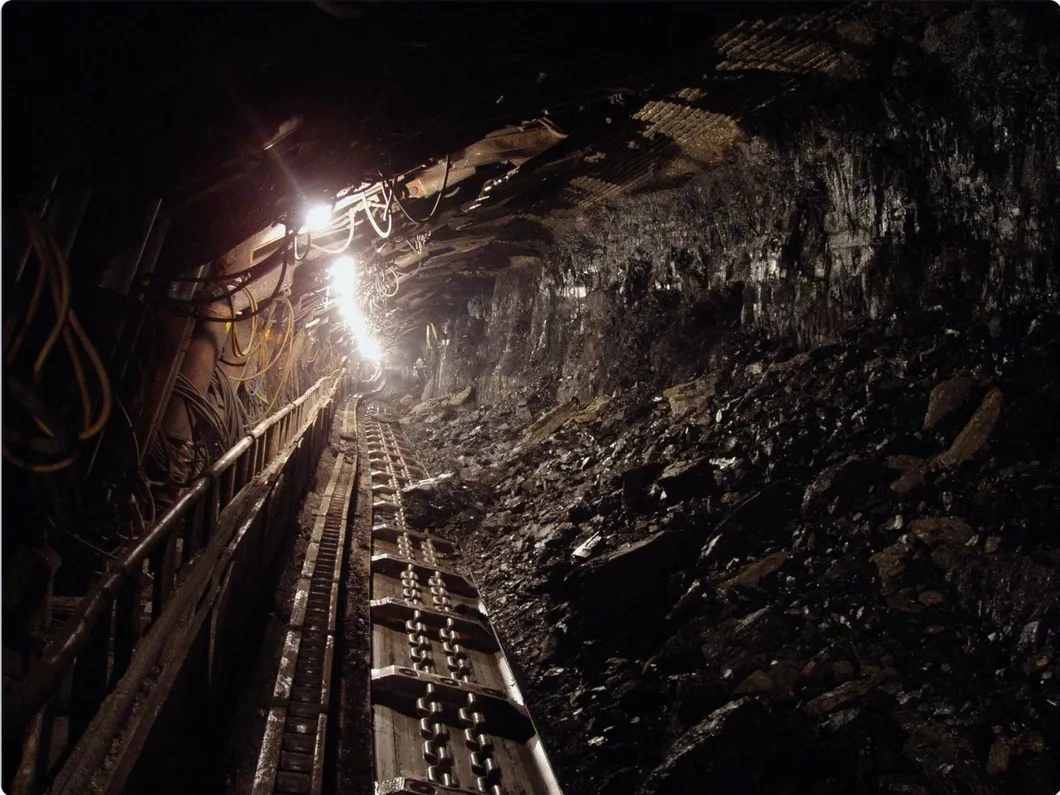

Explosion Proof Light Industrial Application Scene 1

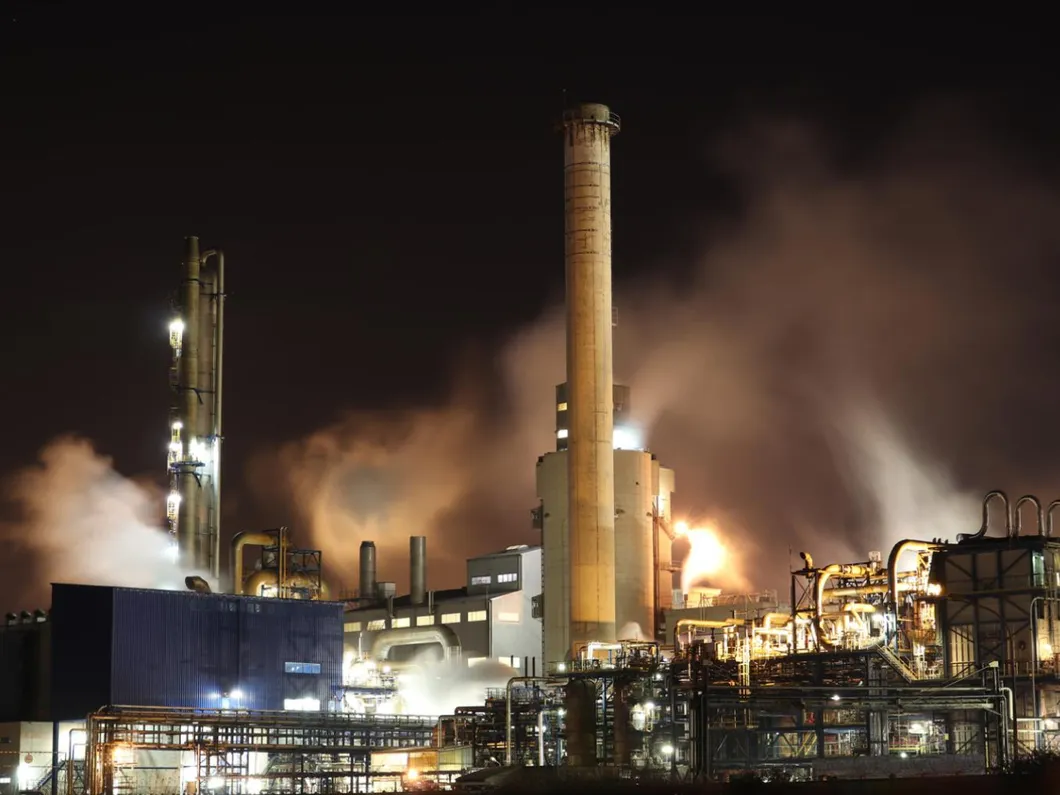

Explosion Proof Light Industrial Application Scene 2
After Sales Service
1. Warranty Coverage
From the date of purchase, the product is provided with a free warranty for 5 years. Please note that the following conditions are not included in the free warranty service during the warranty period:
  • Failure and damage caused by incorrect unpacking of products.
  • Failure caused by falling or physical impacts during handling and use.
  • Failure to operate in accordance with the provided instructions.
2. Out-of-Warranty Maintenance
After the warranty period, if parts need to be replaced during the maintenance process, only the material cost of the replacement parts will be charged, with all service time costs waived.
FAQ

Q1: What kinds of lighting products do you supply?

A1: We provide a high-quality range of lighting products, including floodlights, high bay lights, explosion-proof lights, tri-proof lights, downlights, and other professional fixtures, supported by standard warranties and reliable services.

Q2: Can I print my logo on custom LED light products?

A2: Yes, we offer ODM and OEM services. Please notify us formally before the production process starts, and we will confirm the design requirements based on the initial sample.

Q3: How do you handle product faults or issues under warranty?

A3: During the warranty period, we will send new replacement lights with subsequent orders for small quantities. For defective batch products, we will repair and resend them, or coordinate a suitable custom solution based on the circumstances.

Q4: Is it possible to order a sample of the LED light first?

A4: Yes, sample orders are welcome for testing and quality evaluation. Single samples or mixed samples can be prepared upon request.

Q5: What is the typical lead time for order shipping?

A5: Typically, it takes about 7 working days to ship sample or small orders, and 15 working days for bulk orders. The exact timeline depends on the order volume.

Q6: What does the 5-year warranty cover for the explosion-proof lights?

A6: The 5-year warranty covers all structural, electrical, and performance defects under normal operation. If a fixture experiences driver or LED chip issues during this period, it is eligible for free replacement parts or full repairs.
